Standard: CB294-84
Material: Steel or Stainless Steel
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

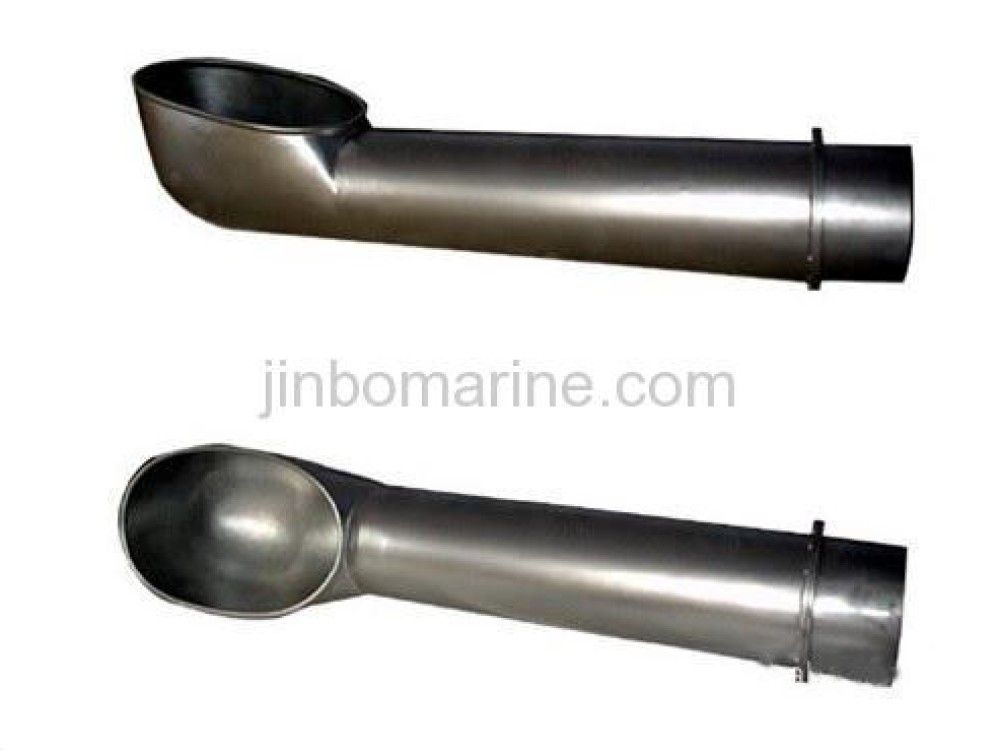

Marine Ventilator
Pipe Ventilator
Standard: CB294-84 Material: Steel or Stainless Steel Main Size List(mm): Nominal Size D A R R1 ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Marine Ventilator
Standard
CB
Material
Steel, Stainless Steel
Weight / Size
Steel or Stainless Steel Main Size List(mm):
Certificate
CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Marine Ventilator
Model / SKU
Pipe-Ventilator
Standard
CB
Material
Steel, Stainless Steel
Weight / Size
Steel or Stainless Steel Main Size List(mm):
Certificate
CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
Warranty
12 Months unless specified otherwise
Origin
China
China Pipe Ventilator:
Main Size List(mm):
| Nominal Size | D | A | R | R1 | R2 | H | t | Roller Qty | Weight(kgs) |
| 150 | 175 | 350 | 240 | 120 | 95 | Decided by user | 1.5 | _ | 5.84 |
| 200 | 225 | 460 | 320 | 160 | 120 | 1.5 | 6.82 | ||
| 250 | 275 | 570 | 400 | 200 | 145 | 1.5 | 8.6 | ||
| 300 | 325 | 680 | 480 | 240 | 170 | 1.5 | 11.1 | ||
| 350 | 375 | 790 | 560 | 280 | 195 | 2 | 16.9 | ||
| 400 | 430 | 900 | 640 | 320 | 220 | 2 | 3 | 24.4 | |
| 450 | 480 | 1010 | 720 | 360 | 245 | 2 | 26 | ||
| 500 | 530 | 1120 | 800 | 400 | 270 | 2 | 31.5 |
