Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Sensor

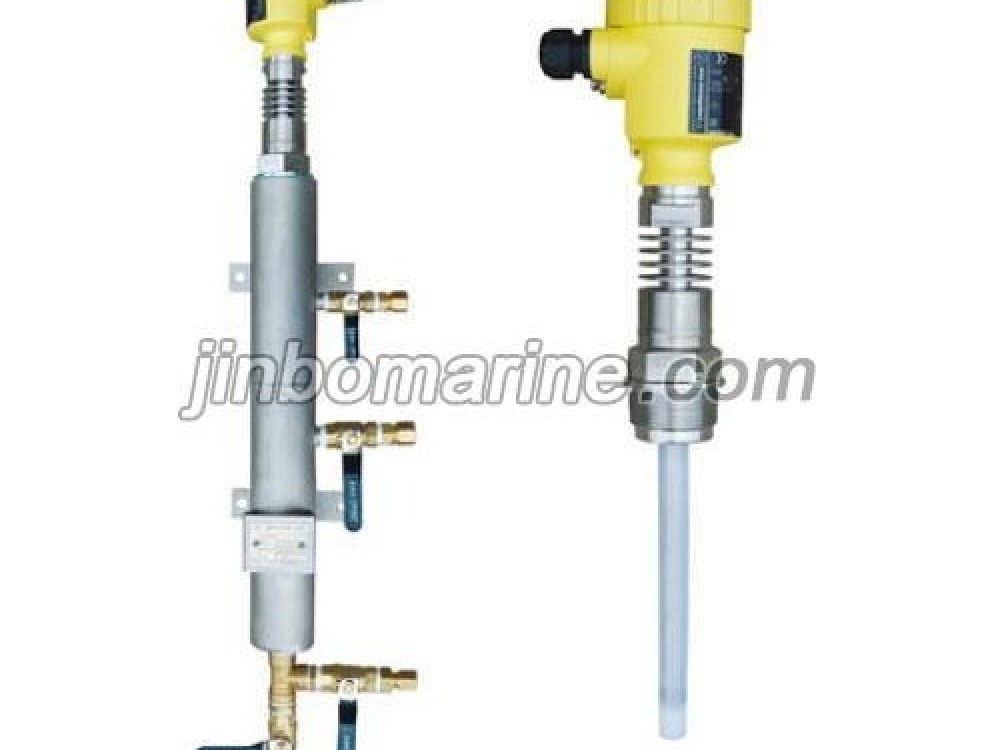

Pipeline Oil Contamination Detector Sensor

Product Description: The device is installed in the cooling water pipeline of ship and is designed to detect oil in cooling wtaer. The system consists of oil detection port,capacitive compact alarm switch . M...

ISO9001 Supplier Class Certificate Export Supply
Pipeline Oil Contamination Detector Sensor

Key Highlights

Category
Sensor
Standard
EN
Weight / Size
Power supply:AC110/220V Output:Relay contacvt(DPDT) Operating pressure:1...
Certificate
CCS,GL,LR,BV,ABS,NK,DNV,RINA,KR and EC certificate etc.
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Sensor
Model / SKU
Pipeline-Oil-Contamination-Detector-Sensor
Standard
EN
Weight / Size
Power supply:AC110/220V Output:Relay contacvt(DPDT) Operating pressure:1.0MPa Working temperature:150 centigrade, 200 centigrade Protection:IP66 Connection size:
Certificate
CCS,GL,LR,BV,ABS,NK,DNV,RINA,KR and EC certificate etc.
Warranty
12 Months unless specified otherwise
Origin
China

Product Description:

The device is installed in the cooling water pipeline of ship and is designed to detect oil in cooling wtaer. The system consists of oil detection port,capacitive compact alarm switch .

Main Technical Specification:

Power supply:AC110/220V

Output:Relay contacvt(DPDT)

Operating pressure:1.0MPa

Working temperature:150 centigrade, 200 centigrade

Protection:IP66

Connection size: G1 "
