Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Electric Heater

RC1265 Marine Electric Insulation Table

RC1265 Marine Electric Insulation Table Product introduction: 1. The shell adopts stainless steel, durable; 2. The inlet temperature control, adjustable temperature; 3. The desktop ...

ISO9001 Supplier Class Certificate Export Supply
RC1265 Marine Electric Insulation Table

Key Highlights

Category
Electric Heater
Standard
EN
Material
Stainless steel 304
Weight / Size
Model  Dimension(mm) Power (kw) Volts(v) HZ N/W(kg) RC1265 1200X650X850 ...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Electric Heater
Model / SKU
RC1265-Marine-Electric-Insulation-Table
Standard
EN
Material
Stainless steel 304
Weight / Size
Model  Dimension(mm) Power (kw) Volts(v) HZ N/W(kg) RC1265 1200X650X850 2 220V-1P 50/60Hz 60 RC1565 1500X650X850 2 220V-1P 50/60Hz 80 RC1865 1800X650X850 2 220V-1P 50/60Hz 100 RC2065 2000X650X850 2 220V-1P 50/60Hz 120
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

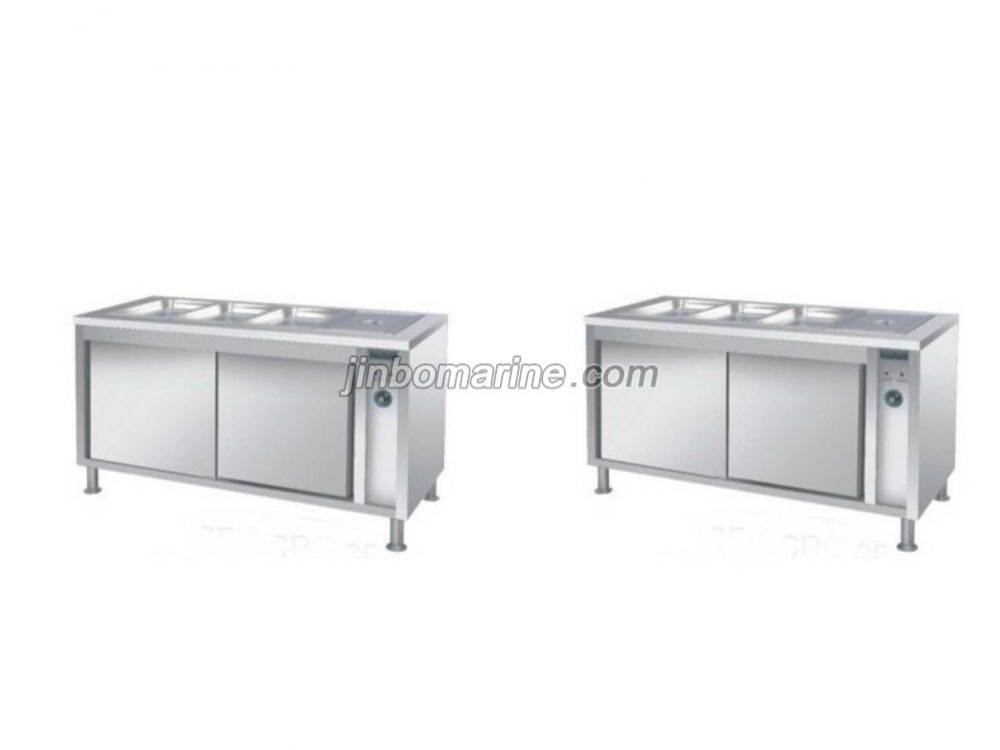

RC1265 Marine Electric Insulation Table
Product introduction:

1. The shell adopts stainless steel, durable;

2. The inlet temperature control, adjustable temperature;

3. The desktop with stainless steel trays, a variety of specifications;

4. The insulation under the table with the cabinet, cutlery and other items can be stored;

5. The adjustable foot, adjustable range of positive and negative 30mm.

Technical data:

Model Dimension(mm) Power (kw) Volts(v) HZ N/W(kg)
RC1265 1200X650X850 2 220V-1P 50/60Hz 60
RC1565 1500X650X850 2 220V-1P 50/60Hz 80
RC1865 1800X650X850 2 220V-1P 50/60Hz 100
RC2065 2000X650X850 2 220V-1P 50/60Hz 120
