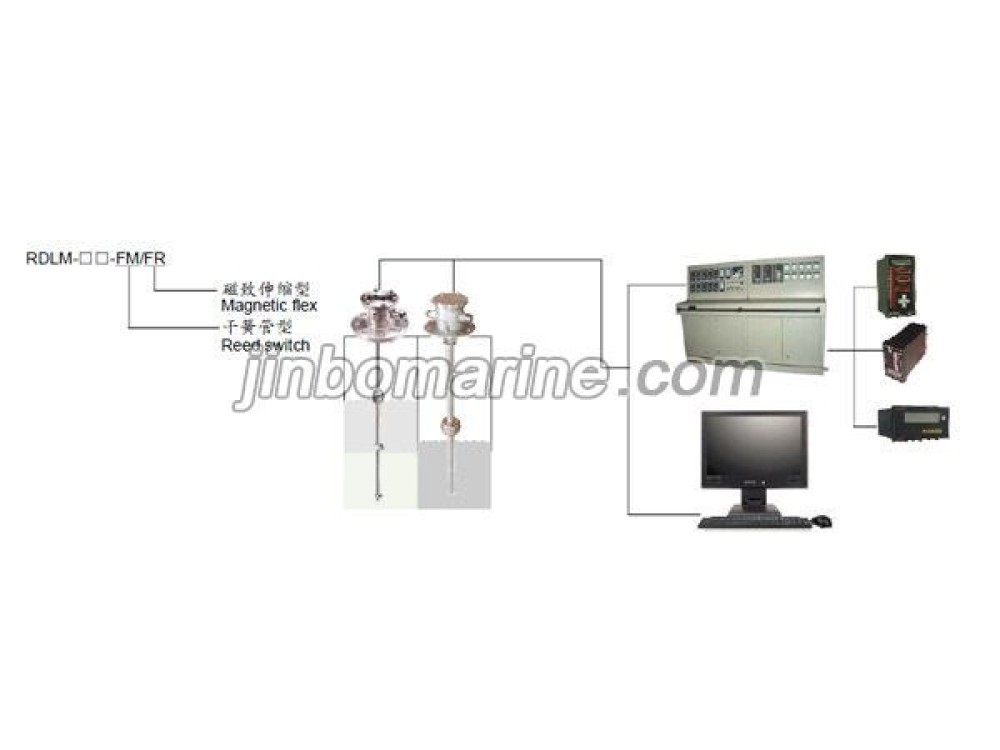

RDLM-FR/FM Floater Type Level Gauge with Temperature& Pressure Monitoring

Floater type level gauge measures tank level, temp., and press. For ballast tank, fuel oil tank, draft gauge
And cargo tank, meanwhile emitting alarm when exceed limited value and displaying tank's status by
Various units. All of the information can be comprehensively utilized by integrated ship operation control system, and on-line interface with a loading computer or intelligent indicator.
The sensor include level element, pressure element and temp. Element. It communicate with control unit through digital data.
A key feature of the system is ease of handling, because the sensors in the detector are flexible, it can be lifted up by hand without the need to enter tanks, even in the case of cargo tanks of Crude Oil Tanker, Product Oil Tanker, Chemical Carrier for repair and maintenance.

Power supply: DC24V
Ambient temperature: -25 +80 degree
Accuracy: 0.2%FS (magnetostriction)
Connect cable: 2 2.5mm (Power), 2 1.0mm screened cable (Signal)
Blind zone: 100mm
Range: 0 10m, 0 30m

Type approval: CCS, GL, NK

Monitor level, temperature and pressure at one time.
Output signal: RS485 4~20mA resistance
Simple and firm instruction, full-airproof design
Anti-temperature, anti-high pressure, precision magnetic delicacy, weakly sensitivity for ESD
Defend fluctuation design, stainless steel jacket
High reliability with compatible electromagnetic design
