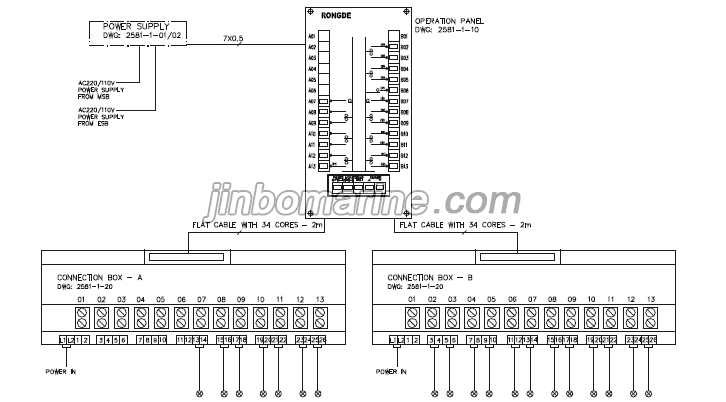

The device is composed by Operation Panel, Junction Box and Power Unit. The Operation Panel, Connect with 2pieces of Junction boxes, controls 26channels signal from Navigation Light or Running Light, ax. Each of Junctions possibly be supplied power separately. As an option, Power Unit Automatically switches power between main power and backup power in order to keep the equipment Working during main power loss.
Ambient temperature: 0～45℃
Power supply: Main power: AC220V/AC110V ±10%, Backup power: AC220V/AC110V±10%
Rated load: AC110V, 25~100W/channel, AC110V, 40~100W/channel
Power consumption: 8A（13channels）x2,max
Emergency power: DC24V, 1.5A (possibly be supplied power unit)
Inner power failure alarm output: N/with dry contact
Failure audio-alarm output: N/C, N/O with dry contact
