| SIZE | Φ mm | A mm | B mm | C mm | D mm | SWL kgs | BL kgs |
| M5x40 | 5 | 30 | 40 | 60 | M5 | 200 | 800 |
| M6x50 | 6 | 35 | 50 | 75 | M6 | 250 | 1000 |
| M6x60 | 6 | 35 | 60 | 90 | M6 | 250 | 1000 |
| M8x50 | 8 | 45 | 50 | 85 | M8 | 450 | 1800 |
| M8x60 | 8 | 45 | 60 | 100 | M8 | 450 | 1800 |
| M10x50 | 9 | 50 | 50 | 100 | M10 | 600 | 2400 |
| M10x75 | 9 | 50 | 75 | 120 | M10 | 600 | 2400 |
| M12x70 | 12 | 60 | 70 | 120 | M12 | 1000 | 4000 |
| M12x 100 | 12 | 60 | 100 | 150 | M12 | 1000 | 4000 |
| M12x120 | 12 | 60 | 120 | 180 | M12 | 1000 | 4000 |
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Eye Bolts & Nuts

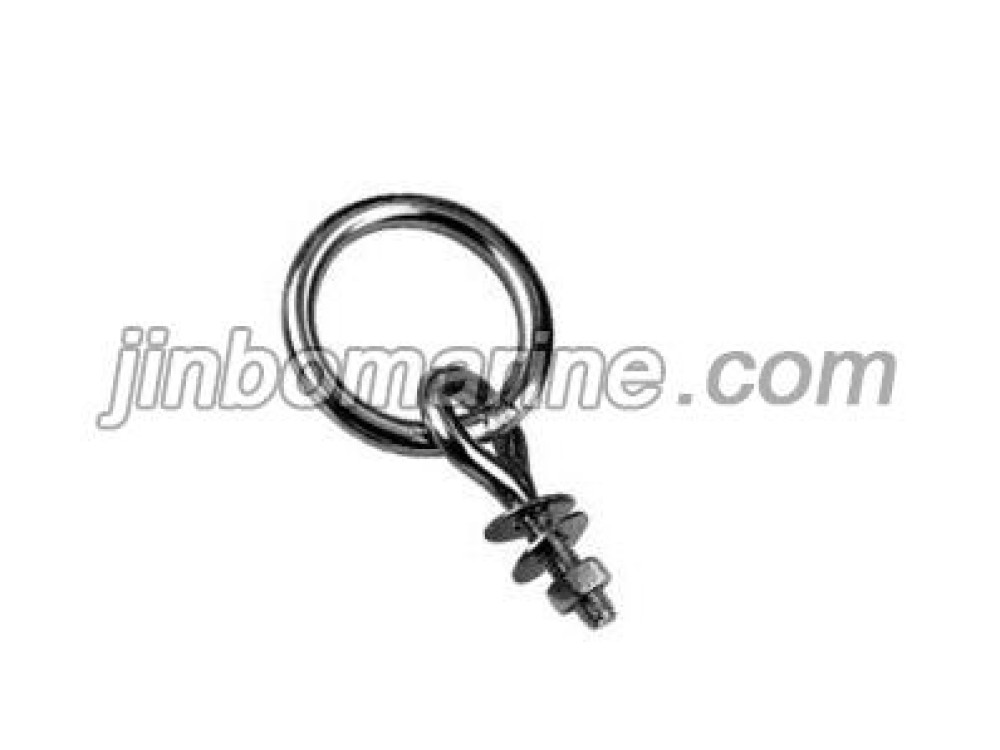

Ring Bolt With Double Washer And Nut, SS304 OR SS316
SIZE Φ mm A mm B mm C mm D mm SWL kgs BL kgs M5x40 5 ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Eye Bolts & Nuts
Material
Stainless steel
Weight / Size
SIZE Φ mm A mm B mm C mm D mm SWL kgs BL kgs M5x40 5 30 40 60 M5 200 800...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Eye Bolts & Nuts
Model / SKU
RING-BOLT-WITH-DOUBLE-WASHER-AND-NUT-SS304-OR-SS316
Material
Stainless steel
Weight / Size
SIZE Φ mm A mm B mm C mm D mm SWL kgs BL kgs M5x40 5 30 40 60 M5 200 800 M6x50 6 35 50 75 M6 250 1000 M6x60 6 35 60 90 M6 250 1000 M8x50 8 45 50 85 M8 450 1800 M8x60 8 45 60 100 M8 450 1800 M10x50 9 50 50 100 M10 600 2400 M10x75 9 50 75 120 M10 600 2400 M12x70 12 60 70 120 M12 1000 4000 M12x 100 12 60 100 150 M12 1000 4000 M12x120 12 60 120 180 M12 1000 4000
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
