Marine & Offshore Equipment Datasheet
Product Datasheet

Sensor

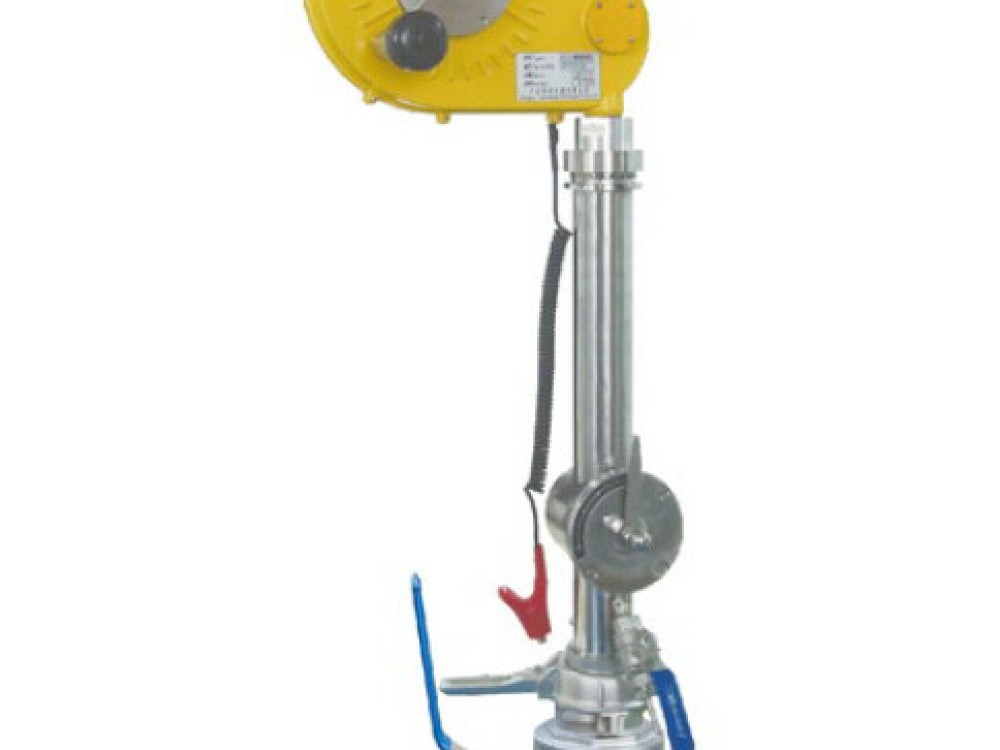

RQY Type Hermetic Sampler

Product Description: RQY Type hermetic sampler consists of lifting device,protection chamber of main body,sample discharging valve,sample barrel etc. The product is designed for sampling liquid under airtight cond...

ISO9001 Supplier Class Certificate Export Supply
RQY Type Hermetic Sampler

Key Highlights

Category
Sensor
Standard
EN
Weight / Size
2" quick connector Tape size:Length 15m or 30m Tape resolution:
Certificate
CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Sensor
Model / SKU
RQY-Type-Hermetic-Sampler
Standard
EN
Weight / Size
2" quick connector Tape size:Length 15m or 30m Tape resolution:
Certificate
CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
Warranty
12 Months unless specified otherwise
Origin
China

Product Description:

RQY Type hermetic sampler consists of lifting device,protection chamber of main body,sample discharging valve,sample barrel etc. The product is designed for sampling liquid under airtight conditions. It features high accuracy,convenient operation,safety and reliability etc. It is suitable to take the liquid sample of different levels liquid from cabins,tanks,and various vessels.

Main Technical Specification:

Type: 2" quick connector

Tape size:Length 15m or 30m

Tape resolution: 1mm

Density scope of sample medium:0.6~3.5g/cm3

Medium temperature range:-25 centigrade to 110 centigrade

Working pressure:0.3 bar

Sampling volume:0.15, 0L.45 L

Matched valve:2" deck valve

Overall Dimension:
