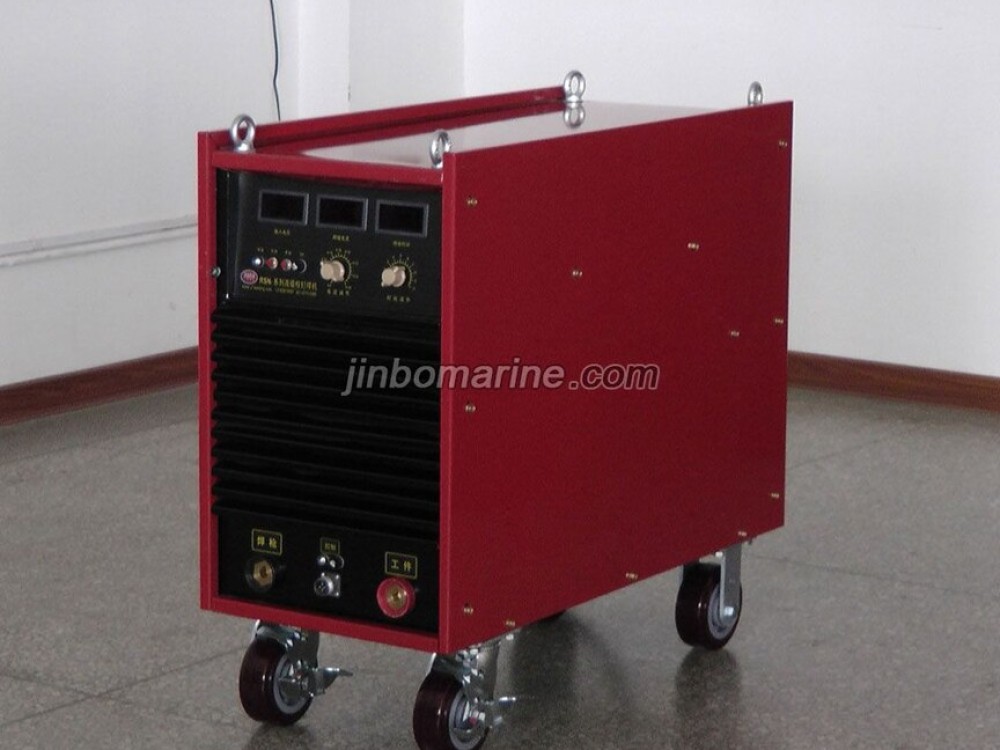

RSN7-1000 Arc Inverter Stud Welder

Feature: 1.IGBT Inverter technology. 2.Less weight, power efficient, safe and reliable. 3.Easy control and digital display of welding voltage, current and time. 4.Special torch with extending cabl...

ISO9001 Supplier Class Certificate Export Supply
RSN7-1000 Arc Inverter Stud Welder

Key Highlights

Category
Welding Equipment
Standard
DIN
Material
electricity shortage and multiple equipments operating simutaneously in ...
Weight / Size
2.Less weight, power efficient, safe and reliable.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Welding Equipment
Model / SKU
RSN7-1000-Arc-Inverter-Stud-Welder
Standard
DIN
Material
electricity shortage and multiple equipments operating simutaneously in construction sites such as projects powered by generators, shipbuilding, steel construction etc.
Weight / Size
2.Less weight, power efficient, safe and reliable.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Contents
  1. Feature:
  2. Technical Parameter:

Feature:

1.IGBT Inverter technology.

2.Less weight, power efficient, safe and reliable.

3.Easy control and digital display of welding voltage, current and time.

4.Special torch with extending cables, large lfiting force, low heat and durable.

5.Inner circuit board is under waterproof, anticorrosion, dampproof and dustproof treatment.

6.Compensatory capabilities of power voltage. When the voltage decreases, this machine can automatically stabilize welding parameters, when the voltage is extremely low, the machine still can work normally(only the max welding current is a little lower), the welding strength is much higher than ordinary welding machine. This feature applies to: electricity shortage and multiple equipments operating simutaneously in construction sites such as projects powered by generators, shipbuilding, steel construction etc.

Technical Parameter:

Item RSN7-800 RSN7-1000 RSN7-1200
welding range Φ4mm—Φ12mm Φ4mm—Φ14mm Φ4mm—Φ16mm
welding current 160A—800A 200A—1000A 200A—1200A
welding time 0.1S—3S 0.1S—3S 0.1S—3S
welding speed Φ12 10pcs / minute Φ14 10pcs / minute Φ16 10pcs / minute
input power AC 3˜280V—440V AC 3˜280V—400V AC 3˜280V—440V
rated input power 30KW 35KW 40KW
power switch 47A 63A 63A
protect grade Ip23 Ip23 Ip23
cooling way F F F
dimension(L/W/H) 880x368x560mm 880x368x560mm 880x368x560mm
weight 68KG 80KG

90KG

* All above parameters are subject to technical modifications.
