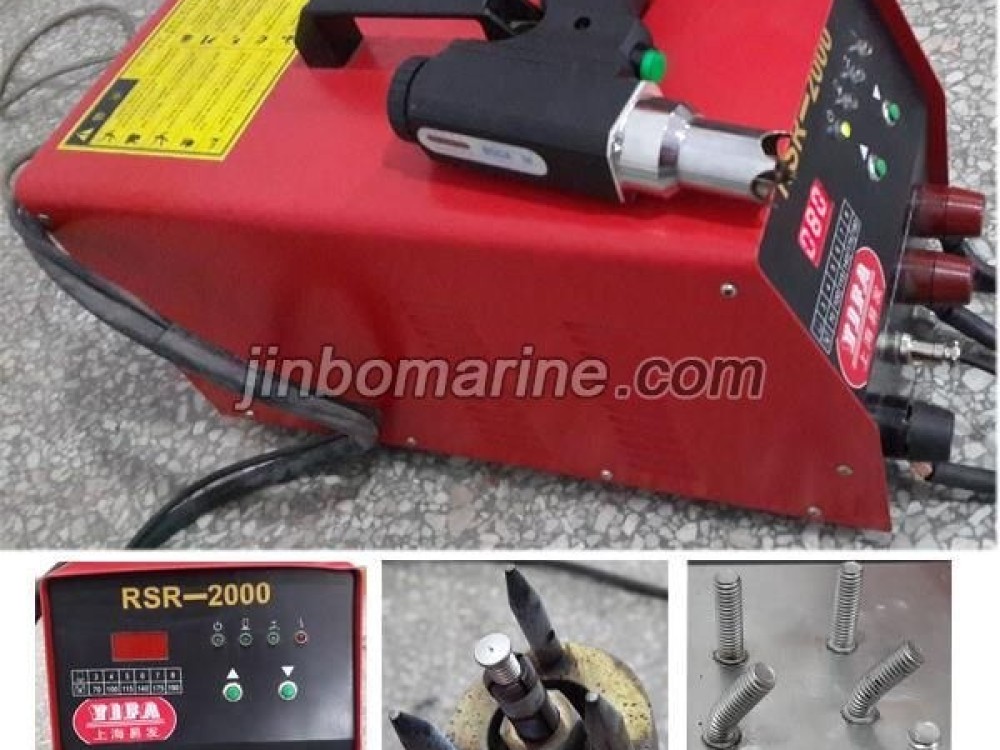

1.Small size, less weight, portable
2.Digital display charging voltage, working conditions.
3.Easy control panel with all welding parameters are indicated.
4.Continuous stepless regualtion of charge voltage to ensure welding convenience, flexibility and solidity.
5.Self-detection system to protect the mini welding machines' reliability.
6.Fast and efficient welding.
7.No need for ferrule or gas shield.
8.Firm joint welding, no deformation, no convex and non-discoloring
9.Replace drilling, tapping, riveting, mannual welding, resistance welding, inclined welding etc
10.Solve scorch, penetration, deformation, difficult clean etc problems of traditional welding.
11.All position welding: horizontal, vertical, upward welding.
Technical Parameters:
| Item | RSR-1600 | RSR-2000 | RSR-2500 |
| welding range | Φ3mm—Φ6mm | Φ3mm—Φ8mm | Φ3mm—Φ10mm |
| energy stored | 1600J | 2000J | 2500J |
| charge voltage | 50V-200V | 50V-200V | 50V-200V |
| welding speed | 10-15pcs/minute | 10-15pcs/minute | 10-15pcs/minute |
| input power | 220V 50Hz | 220V 50Hz | 220V 50Hz |
| input capacity | ≤0.6KW | ≤0.8KW | ≤0.8KW |
| dimension(L/W/H) | 418x226x200mm | 418x226x200mm | 418x226x200mm |
| weight | 15KG | 17KG | 19KG |
Welding machine applications:
1.Welding M3mm-M10mm studs, pins, bolts, bar for lines etc. in the workpiece with thickness ≥0.3mm.
2.Mainly used in metal cases, cabinet, shell, kitchen wares, electical equipments, ventilating duct etc. welding projects.
3.welding materials: stainless steel,low alloy steel,aluminum etc.
