Shackle

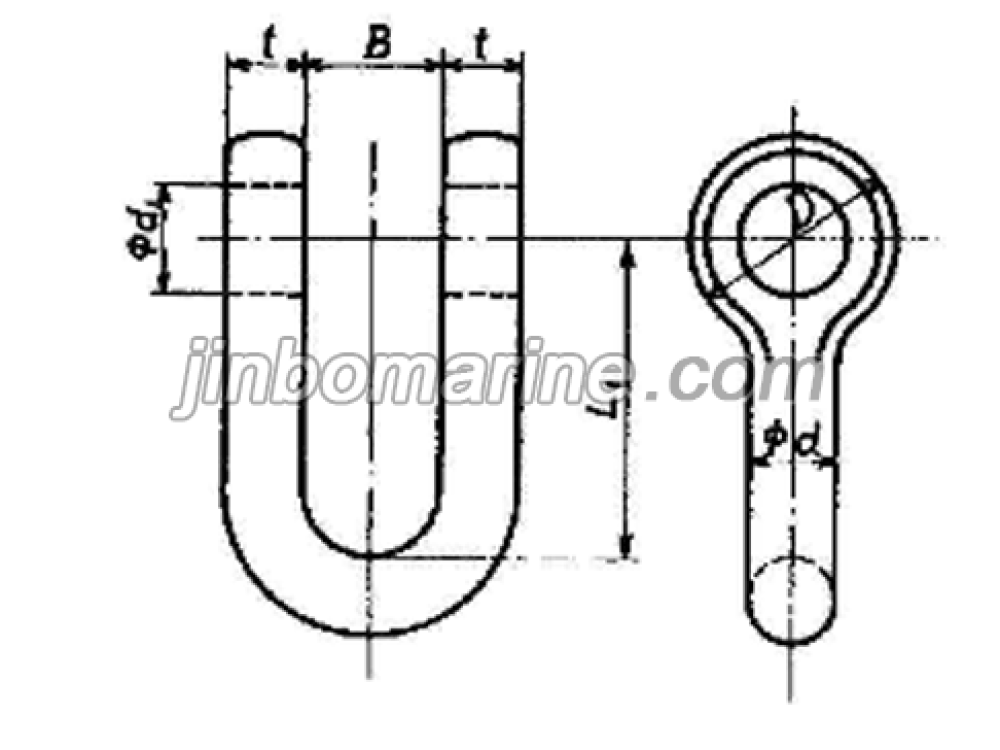

SA Type JIS B2801 Straight Shackle

Technical Specification Nominal Size t d B D d1 L Weight(kg) ...

ISO9001 Supplier Class Certificate Export Supply

Key HighlightsCategory
Shackle
Standard
JIS
Weight / Size
Technical Specification Nominal Size t d B D d1 L Weight(kg) 34 34 39 50...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category

Shackle

Model / SKU

SA-Type-JIS-B2801-Straight-Shackle

Standard

JIS

Weight / Size

Technical Specification Nominal Size t d B D d1 L Weight(kg) 34 34 39 50 85 41 136 6.49 36 36 42 54 90 43 144 7.99 38 38 44 57 95 47 152 9.22 40 40 47 60 100 49 160 10.08 42 42 49 63 105 53 168 12.17 44 44 51 66 110 56 176 13.9 46 46 53 68 115 58 184 15.8 48 48 55 72 120 60 192 17.75 50 50 57 75 125 62 200 19.35 55 55 62 83 138 67 220 24.6 60 60 69 90 150 72 240 36.46 65 65 75 98 164 79 260 44.8 70 70 81 105 178 85 280 53.32 75 75 87 112 192 92 300 57.51 80 80 93 120 206 98 320 81.69 85 85 99 128 220 104 340 97.42 90 90 104 135 232 110 360 113.1 Unit:

Certificate

ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

Warranty

12 Months unless specified otherwise

Origin

China

Technical Specification

Nominal Size	t	d	B	D	d1	L	Weight(kg)
34	34	39	50	85	41	136	6.49
36	36	42	54	90	43	144	7.99
38	38	44	57	95	47	152	9.22
40	40	47	60	100	49	160	10.08
42	42	49	63	105	53	168	12.17
44	44	51	66	110	56	176	13.9
46	46	53	68	115	58	184	15.8
48	48	55	72	120	60	192	17.75
50	50	57	75	125	62	200	19.35
55	55	62	83	138	67	220	24.6
60	60	69	90	150	72	240	36.46
65	65	75	98	164	79	260	44.8
70	70	81	105	178	85	280	53.32
75	75	87	112	192	92	300	57.51
80	80	93	120	206	98	320	81.69
85	85	99	128	220	104	340	97.42
90	90	104	135	232	110	360	113.1

Unit: mm
