Shackle

SB Type JIS B2801 Straight Shackle

SB Type JIS B2801 Straight Shackle Nominal Size t d B D d1 L Weigh...

ISO9001 Supplier Class Certificate Export Supply
SB Type JIS B2801 Straight Shackle

Key Highlights

Category
Shackle
Standard
JIS
Weight / Size
SB Type JIS B2801 Straight Shackle Nominal Size t d B D d1 L Weight(kg) ...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Shackle
Model / SKU
SB-Type-JIS-B2801-Straight-Shackle
Standard
JIS
Weight / Size
SB Type JIS B2801 Straight Shackle Nominal Size t d B D d1 L Weight(kg) 10 10 12 17 25 13 40 0.15 12 12 14 20 32 16 48 1.31 14 14 16 24 36 18 56 0.49 16 16 18 26 40 20 64 0.74 18 18 21 29 45 22 72 1.23 20 20 23 31 50 25 80 1.33 22 22 26 34 55 27 88 1.53 24 24 28 39 62 31 96 1.74 26 26 30 41 66 33 104 2.48 28 28 32 43 70 35 112 2.49 30 30 34 45 75 37 120 4.6 32 32 37 48 80 39 128 6.18 34 34 39 50 85 41 136 7.61 36 36 42 54 90 43 144 9.35 38 38 44 57 95 47 152 10.98 40 40 47 60 100 49 160 12.15 42 42 49 63 105 53 168 14.27 44 44 51 66 110 56 176 16.11 46 46 53 68 115 58 184 18.19 48 48 55 72 120 60 192 20.14 50 50 57 75 125 62 200 21.88 55 55 62 83 138 67 220 29.5 60 60 69 90 150 72 240 41.24 65 65 75 98 164 79 260 50.75 70 70 81 105 178 85 280 60.41 75 75 87 112 192 92 300 76.76 80 80 93 120 206 98 320 93.19 85 85 99 128 220 104 340 112.48 90 90 104 135 232 110 360 131.73 Unit:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

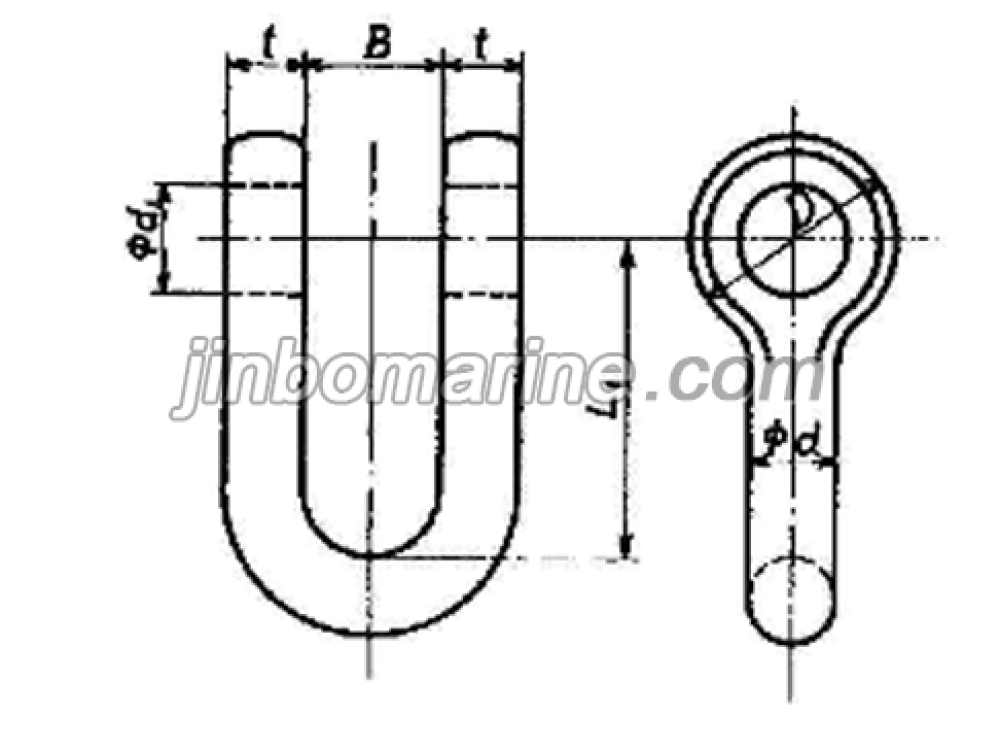

SB Type JIS B2801 Straight Shackle

Nominal Size t d B D d1 L Weight(kg)
10 10 12 17 25 13 40 0.15
12 12 14 20 32 16 48 1.31
14 14 16 24 36 18 56 0.49
16 16 18 26 40 20 64 0.74
18 18 21 29 45 22 72 1.23
20 20 23 31 50 25 80 1.33
22 22 26 34 55 27 88 1.53
24 24 28 39 62 31 96 1.74
26 26 30 41 66 33 104 2.48
28 28 32 43 70 35 112 2.49
30 30 34 45 75 37 120 4.6
32 32 37 48 80 39 128 6.18
34 34 39 50 85 41 136 7.61
36 36 42 54 90 43 144 9.35
38 38 44 57 95 47 152 10.98
40 40 47 60 100 49 160 12.15
42 42 49 63 105 53 168 14.27
44 44 51 66 110 56 176 16.11
46 46 53 68 115 58 184 18.19
48 48 55 72 120 60 192 20.14
50 50 57 75 125 62 200 21.88
55 55 62 83 138 67 220 29.5
60 60 69 90 150 72 240 41.24
65 65 75 98 164 79 260 50.75
70 70 81 105 178 85 280 60.41
75 75 87 112 192 92 300 76.76
80 80 93 120 206 98 320 93.19
85 85 99 128 220 104 340 112.48
90 90 104 135 232 110 360 131.73
Unit: mm

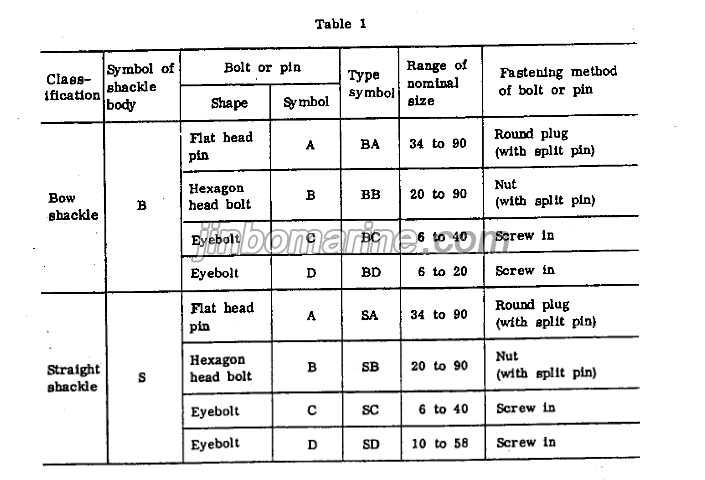

JIS B2801 Shackle Type

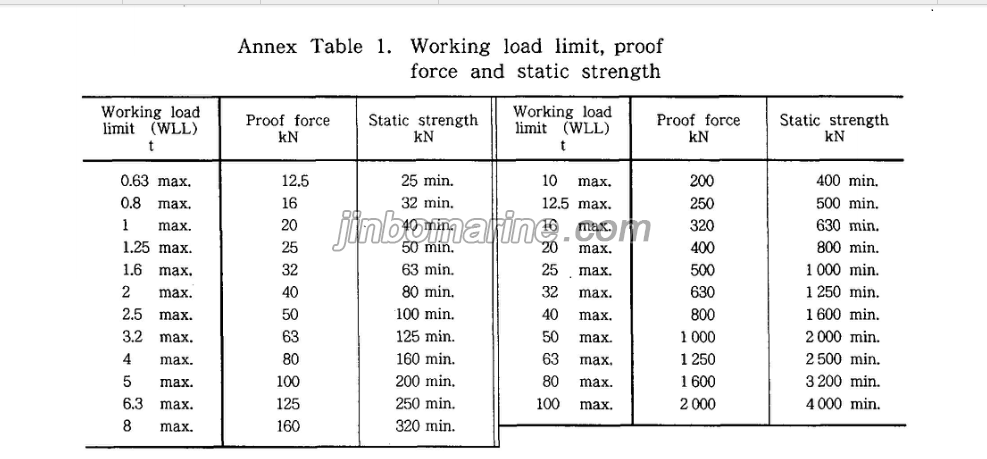

JIS Shackle Working Load Limit, Proof Force
