The filter model indicates as follow:
SBL→Double-cylinder Semi-suto Filter
200→Caliber 200mm
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Filter

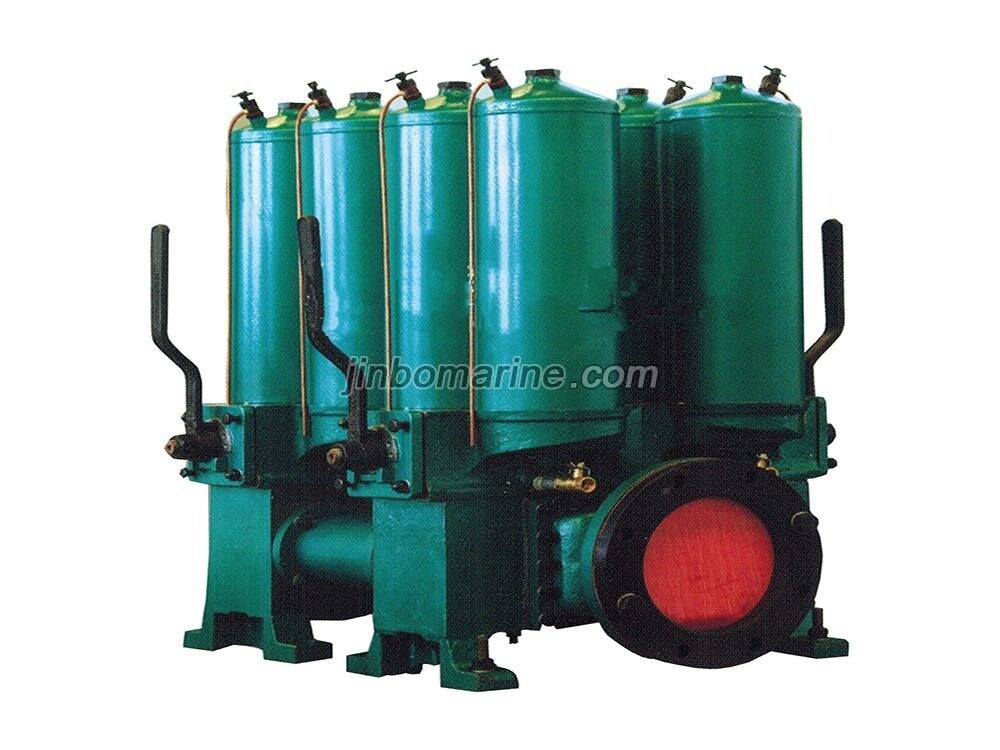

SBL200 Model Semi-Auto Filter
SBL200 Model Semi-Auto Filter The filter model indicates as follow: SBL→Double-cylinder Semi-suto Filter 200→Caliber 200mm SBL200 Model Semi-Auto Filter Structure Diagram SBL200 Model Semi-Auto...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Filter
Standard
EN
Weight / Size
SBL→Double-cylinder Semi-suto Filter 200→Caliber 200mm SBL200 Model Semi...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Filter
Model / SKU
SBL200-Model-Semi-Auto-Filter
Standard
EN
Weight / Size
SBL→Double-cylinder Semi-suto Filter 200→Caliber 200mm SBL200 Model Semi-Auto Filter Structure Diagram SBL200 Model Semi-Auto Filter Technical Parameters Model Caliber DN Flow(reference) Filter Precision mesh/inch Work Temperature Work Pressure(MPa) H D D1 D2 n-d Weight（kg) SBL150 150 100-190 40-400 ≤85 ≤1 1060 285 240 212 8-22 680-1000 SBL200 200 110-300 40-400 ≤85 ≤1 1100 340 295 268 8-22 710-1100
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
SBL200 Model Semi-Auto Filter
SBL200 Model Semi-Auto Filter Structure Diagram
SBL200 Model Semi-Auto Filter Technical Parameters
| Model | Caliber DN | Flow(reference) | Filter Precision mesh/inch | Work Temperature | Work Pressure(MPa) | H | D | D1 | D2 | n-d | Weight（kg) |
| SBL150 | 150 | 100-190 | 40-400 | ≤85 | ≤1 | 1060 | 285 | 240 | 212 | 8-22 | 680-1000 |
| SBL200 | 200 | 110-300 | 40-400 | ≤85 | ≤1 | 1100 | 340 | 295 | 268 | 8-22 | 710-1100 |
