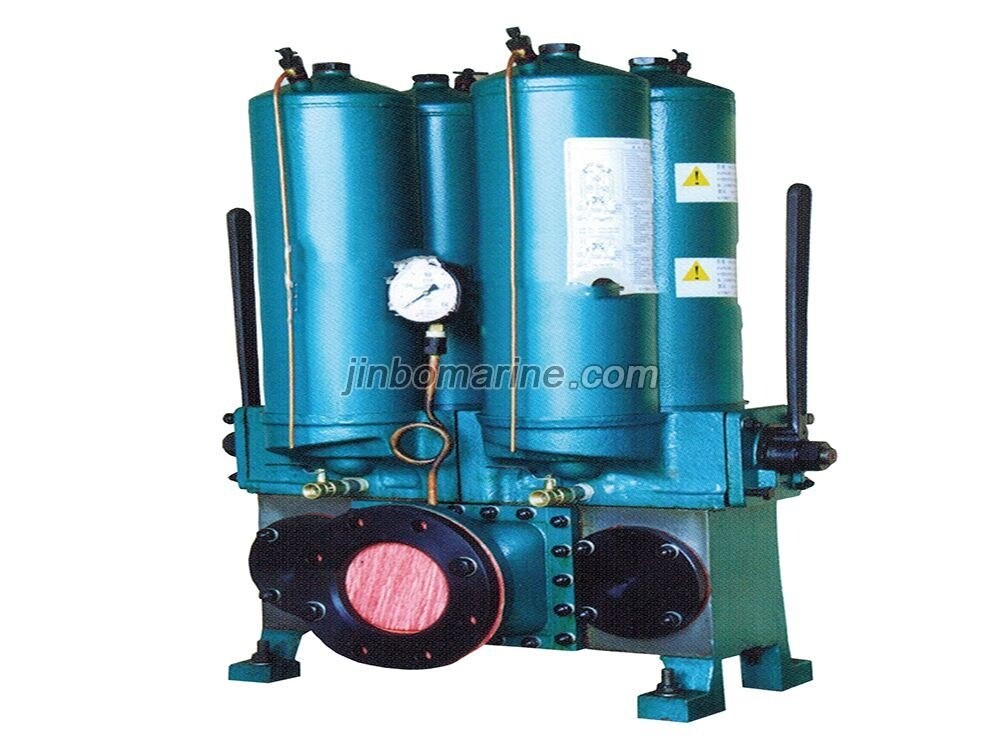

SBL65 Model Semi-Auto Filter

SBL65 Model Semi-Auto Filter It can be without stand A,with four bolts C connecting to the outside,the inlet and the outlet are in the bottom of the machine,the inlet is in the front and the outlet is at the back. ...

ISO9001 Supplier Class Certificate Export Supply
SBL65 Model Semi-Auto Filter

Key Highlights

Category
Filter
Standard
EN
Weight / Size
SBL65 Model Semi-Auto Filter Structure Diagram SBL65 Model Semi-Auto Fil...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Filter
Model / SKU
SBL65-Model-Semi-Auto-Filter
Standard
EN
Weight / Size
SBL65 Model Semi-Auto Filter Structure Diagram SBL65 Model Semi-Auto Filter Technical Parameters Model Flow(reference³/h) Caliber and jointing size(mm) Overall size(mm) Installing size(mm) Weight(kg) DN E F M1 H1 H2 H3 H4 L ᵩ N P G K 4-ᵩ X W V Y Z 4-M2 SBL50 10-25 50 120 110 M12 595 209 142 86 165 155 330 320 258 136 4-ᵩ22 16 150 115 110 78 4-ᵩ12 67 SBL65 25-30 65 670 71 SBL80 SBL80 I 25-40 80 146 132 M16 740 247 172 102 200 190 400 384 334 244 26 200 145 160 100 4-M16 131 SBL80 II 35-50 840 140 SBL100A 40-80 100 162 152 M16 890 247 192 112 200 190 400 384 374 244 26 200 145 160 100 150
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

SBL65 Model Semi-Auto Filter

It can be without stand A,with four bolts C connecting to the outside,the inlet and the outlet are in the bottom of the machine,the inlet is in the front and the outlet is at the back.
The two holes in the handle position near the stand are both inlets,the other two holes are outlets.While the inlets and outlets are installed,they are chosen at will,the other inles and outlets shoule be sealed with flange.

SBL65 Model Semi-Auto Filter Structure Diagram


SBL65 Model Semi-Auto Filter Technical Parameters

Model Flow(reference³/h) Caliber and jointing size(mm) Overall size(mm) Installing size(mm) Weight(kg)
DN E F M1 H1 H2 H3 H4 L ᵩ N P G K 4-ᵩ X W V Y Z 4-M2
SBL50 10-25 50 120 110 M12 595 209 142 86 165 155 330 320 258 136 4-ᵩ22 16 150 115 110 78 4-ᵩ12 67
SBL65 25-30 65 670 71
SBL80 SBL80 I 25-40 80 146 132 M16 740 247 172 102 200 190 400 384 334 244 26 200 145 160 100 4-M16 131
SBL80 II 35-50 840 140
SBL100A 40-80 100 162 152 M16 890 247 192 112 200 190 400 384 374 244 26 200 145 160 100 150
