Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Hatch Cover Chain

Self-Color Hatch Cover Chain

Main Specification Material: 20Mn2 Size: 11mm to 30mm Customized Size available. Diameter Inside Length Ins...

ISO9001 Supplier Class Certificate Export Supply

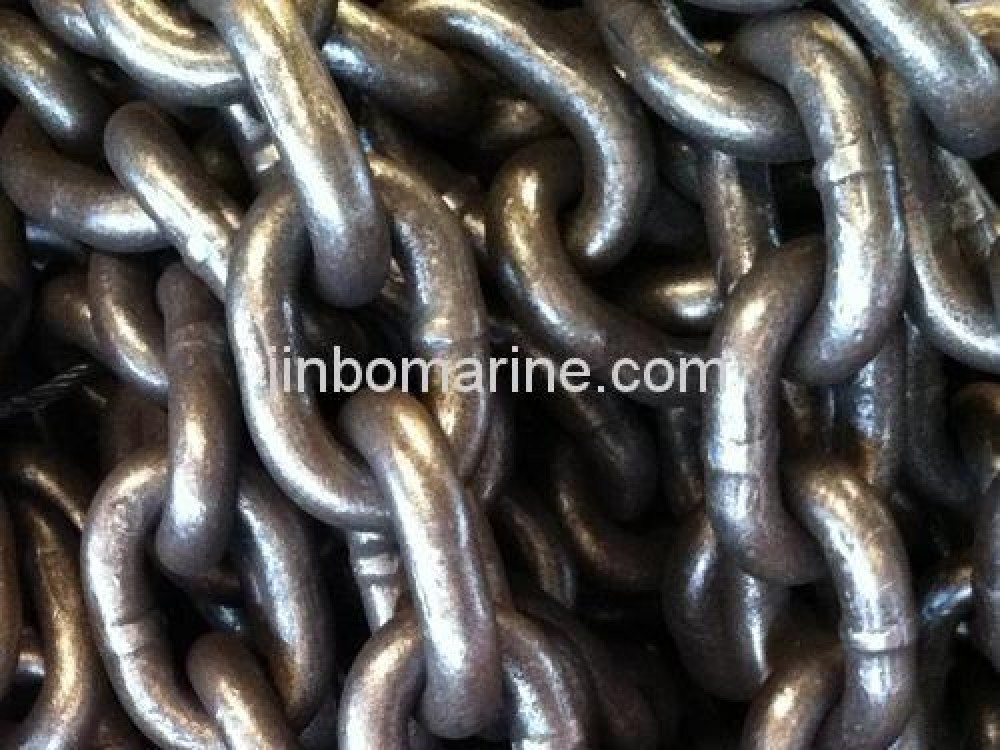

Self-Color Hatch Cover Chain

Key Highlights

Category
Hatch Cover Chain
Standard
EN
Material
20Mn2
Weight / Size
20Mn2 Size:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Hatch Cover Chain
Model / SKU
Self-Color-Hatch-Cover-Chain
Standard
EN
Material
20Mn2
Weight / Size
20Mn2 Size:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

Main Specification

  • Material: 20Mn2
  • Size: 11mm to 30mm
  • Customized Size available.


Diameter Inside Length Inside Width Proof Load Breaking Load Weight
mm mm mm KN KN KG/M
11 43 12.5 57 116 2.39
14(A) 50 17 97 194 3.95
14(B) 42 18 97 194 4.32
15 42 21 106 212 5.2
16(A) 55 22 128 254 5.34
16(B) 55 18 128 254 5.29
18(A) 54 24 161 322 7.12
18(B) 64 25 161 322 6.32
19 57 24 164 330 7.6
20(A) 60 22 129 359 9.5
20(B) 62 22 179 359 8.57
22(A) 78 31 240 480 9.86
22(B) 86 30 240 480 9.24
22(C) 66 31 240 480 10.6
30 108 35 399 798 18.22
