- Used steam, saturated water
- High Temperature, Aging, Weather Resistance
- Working Temperature: -20 TO 150 ℃
- Safety Factory: 1:3
- Hose Lineing: EPDM
- Reinforcement Layer: Tire Cord with Helix Wire
- Cover Rubber Layer: EPDM
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Air and General Purpose Hose

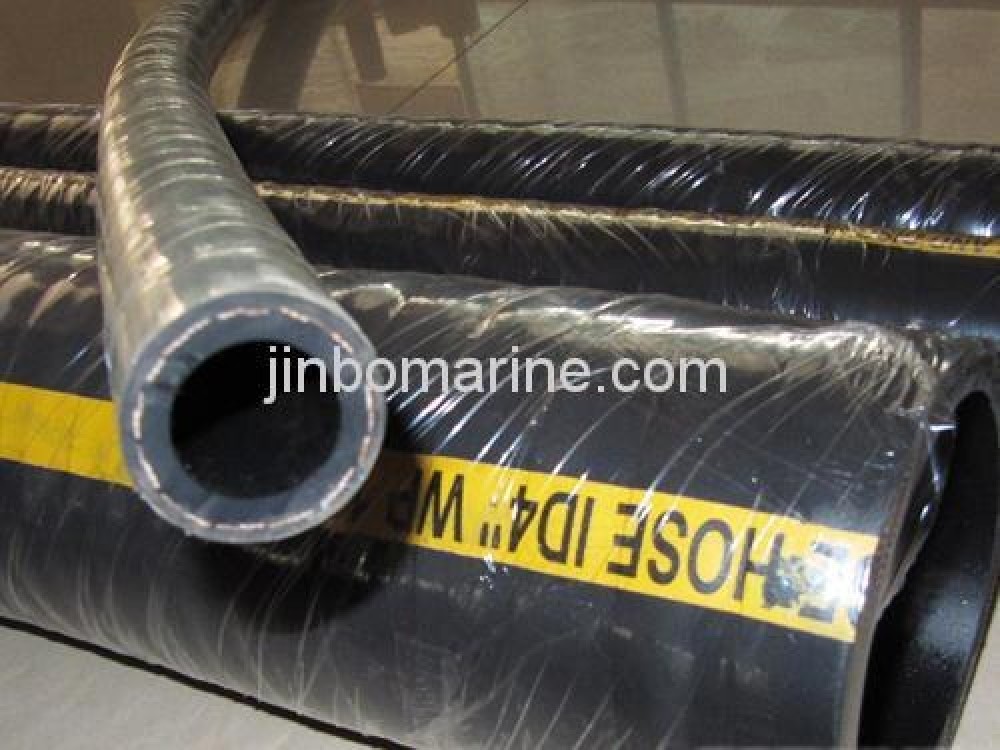

Steam Hose
Used steam, saturated water High Temperature, Aging, Weather Resistance Working Temperature: -20 TO 150 ℃ Safety Factory: 1:3 Hose Lineing: EPDM ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Air and General Purpose Hose
Standard
DIN
Material
EPDM
Weight / Size
EPDM Main Specification ID OD WP BP Bending Radius Plies Weight Length m...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Air and General Purpose Hose
Model / SKU
Steam-Hose
Standard
DIN
Material
EPDM
Weight / Size
EPDM Main Specification ID OD WP BP Bending Radius Plies Weight Length mm inch mm inch Mpa bar Mpa bar mm B kg/m m 12.5 1/2" 25 1" 1 10 3 30 180 2 0.8 20-50 16 5/8" 29 1-1/4" 1 10 3 30 210 2 1 20-50 19 3/4" 32 1-1/4" 1 10 3 30 240 2 1.1 20-50 22 7/8" 34 1-2/5" 1 10 3 30 280 2 1.2 20-50 25 1" 38 1-1/2" 1 10 3 30 375 2 1.5 20-50 31.5 1-1/4" 46 2" 0.8 8 2.4 24 420 3 1.8 20-50 38 1-3/5" 52 2" 0.8 8 2.4 24 500 3 2 20-50 45 1-3/4" 60 2-1/2" 0.8 8 2.4 24 610 3 2.2 20-50 51 2" 65 2-1/2" 0.8 8 2.4 24 630 3 2.5 20-50 57 2-1/4" 72 2-4/5" 0.8 8 2.4 24 850 3 2.8 20-50
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
China Steam Hose:
Main Specification
| ID | OD | WP | BP | Bending Radius | Plies | Weight | Length | ||||
| mm | inch | mm | inch | Mpa | bar | Mpa | bar | mm | B | kg/m | m |
| 12.5 | 1/2" | 25 | 1" | 1 | 10 | 3 | 30 | 180 | 2 | 0.8 | 20-50 |
| 16 | 5/8" | 29 | 1-1/4" | 1 | 10 | 3 | 30 | 210 | 2 | 1 | 20-50 |
| 19 | 3/4" | 32 | 1-1/4" | 1 | 10 | 3 | 30 | 240 | 2 | 1.1 | 20-50 |
| 22 | 7/8" | 34 | 1-2/5" | 1 | 10 | 3 | 30 | 280 | 2 | 1.2 | 20-50 |
| 25 | 1" | 38 | 1-1/2" | 1 | 10 | 3 | 30 | 375 | 2 | 1.5 | 20-50 |
| 31.5 | 1-1/4" | 46 | 2" | 0.8 | 8 | 2.4 | 24 | 420 | 3 | 1.8 | 20-50 |
| 38 | 1-3/5" | 52 | 2" | 0.8 | 8 | 2.4 | 24 | 500 | 3 | 2 | 20-50 |
| 45 | 1-3/4" | 60 | 2-1/2" | 0.8 | 8 | 2.4 | 24 | 610 | 3 | 2.2 | 20-50 |
| 51 | 2" | 65 | 2-1/2" | 0.8 | 8 | 2.4 | 24 | 630 | 3 | 2.5 | 20-50 |
| 57 | 2-1/4" | 72 | 2-4/5" | 0.8 | 8 | 2.4 | 24 | 850 | 3 | 2.8 | 20-50 |
