Model: API610 OH1 according to API 610 standard.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
API610 Petrochemical Centrifugal Pump
TCA OH1 Petro Chemical Processing Pump
TCA OH1 Petro Chemical Processing Pump Model: API610 OH1 according to API 610 standard. Performance range: Size: DN25-400mm Capacity: ~2600m3/h Heads: ~250m Temperature: -80 ~ +300Cde...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
API610 Petrochemical Centrifugal Pump
Standard
DIN
Material
bronze body, SS316 nozzle, Cast iron
Weight / Size
Size:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
API610 Petrochemical Centrifugal Pump
Model / SKU
TCA-OH1-Petro-Chemical-Processing-Pump
Standard
DIN
Material
bronze body, SS316 nozzle, Cast iron
Weight / Size
Size:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

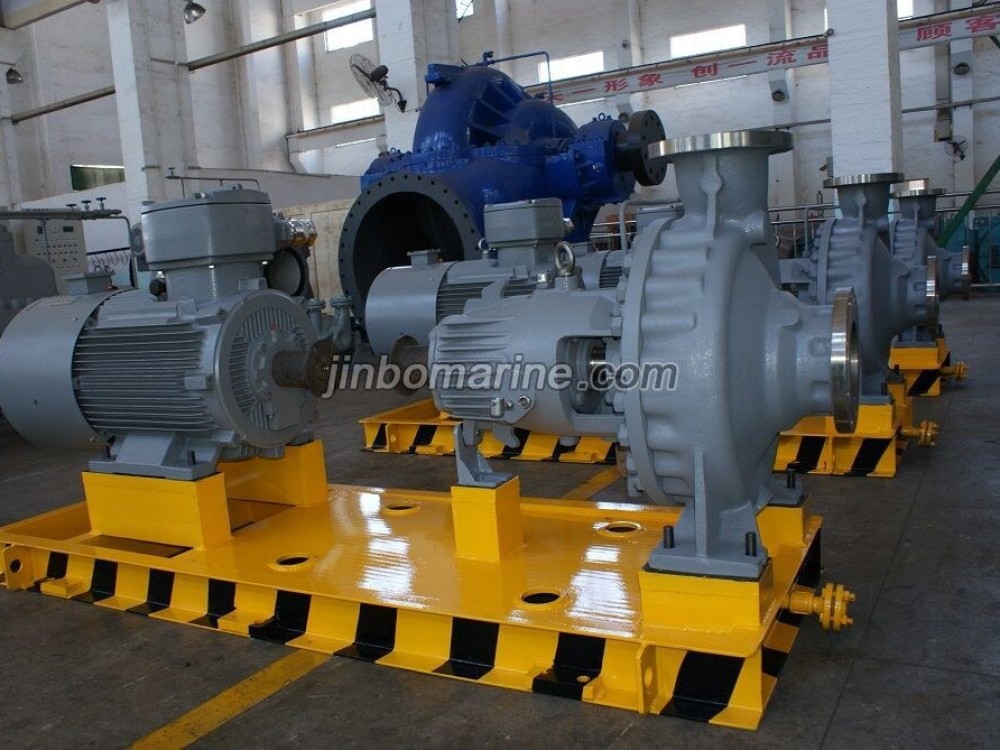

TCA OH1 Petro Chemical Processing Pump
Performance range:
Size: DN25-400mm
Capacity: ~2600m3/h
Heads: ~250m
Temperature: -80 ~ +300Cdegree
Design Pressure: ~2.5MPA
Applications:
Refineries, Chemical processing, general industry, coal mining, water supply system and water processing, sea water desalinization, pipe line pressure increasing
Feature:
The TCA pumps are single stage, horizontal, radically split volute pump. The casing is foot supporting and equipped with single radically impeller. Axially inelt and radically outlet. The pump adopt wear ring and balacing hole to realize the hydraulic balance, shaft seal adopts API682 standard mechanical seal and flushing plan. Standard piping design in accordance with API standard.
The suction flange rating pressure grade is the equal to discharge flange.
Pumps rotation is clockwise viewed from motor end.
