Model: API610 OH2 according to API 610 standard
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
API610 Petrochemical Centrifugal Pump

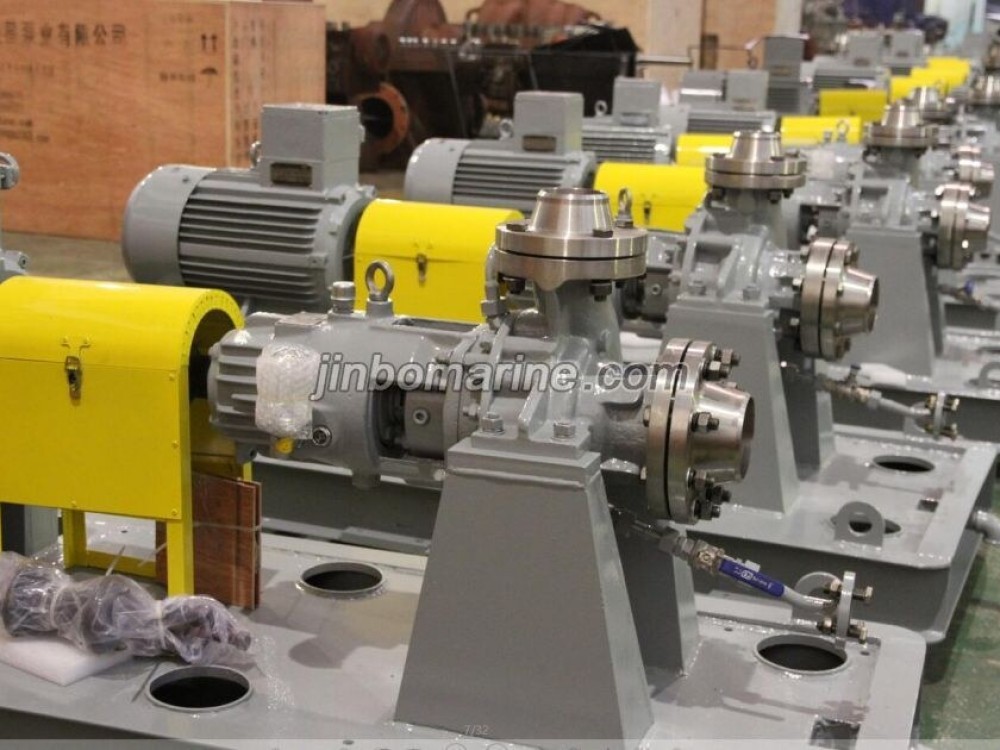

TCE TCF OH2 Petro Chemical Processing pump
TCE TCF OH2 Petro Chemical Processing pump Model: API610 OH2 according to API 610 standard Performance Range: Size: DN25~400mm Capacity: ~2600m3/h Heads: ~250M Temperatures: -80C degre...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
API610 Petrochemical Centrifugal Pump
Standard
DIN
Material
bronze body, SS316 nozzle, Cast iron
Weight / Size
Size:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
API610 Petrochemical Centrifugal Pump
Model / SKU
TCE-TCF-OH2-Petro-Chemical-Processing-pump
Standard
DIN
Material
bronze body, SS316 nozzle, Cast iron
Weight / Size
Size:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
TCE TCF OH2 Petro Chemical Processing pump
Performance Range:
Size: DN25~400mm
Capacity: ~2600m3/h
Heads: ~250M
Temperatures: -80C degree ~ +450C degree
Design Pressures: ~5MPA(TCE) / ~7.5MPA(TCF)
Application:
Refinery, Coal mining, Petrochemical, Paper industry, sea water transportation, Air conditioner, offshore oil filed, Sugar Plants.
Feature:
The TCE, TCF pumpa are single stage, horiztonal, radically split volute pump. The casing is centerline supporting and equipped with single radically impeller. Axially inlet and radically outlet.
The pump adopt wear ring and balancing hole to realize the hydraulic balance, shaft seal adopts API682 standard mechanical seal and flushing plan.
Standard piping design in accordance with API standard. Which can cooling the centerline supporting pump.
The suction flange rating pressure grade is the equal to discharge flange pumps rotation is clockwise viewed from motor end.
