Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Marine Level Gauge

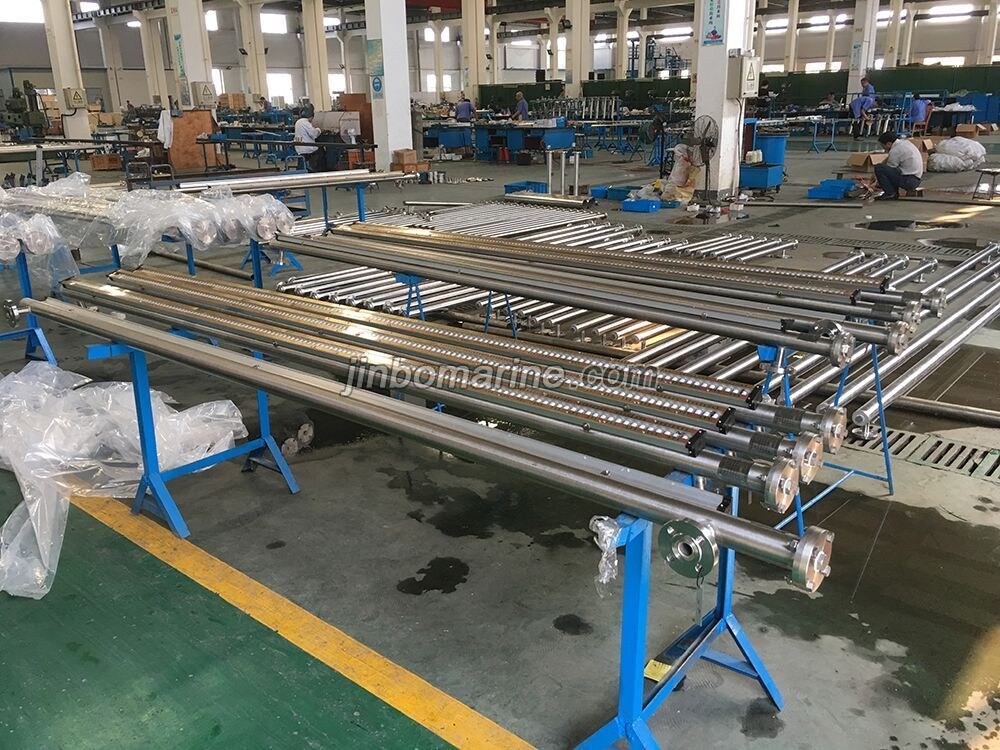

UHZ-511 Type Normal Temperature Magnetic Float Type Level Gauge
Product Description: It can be used to measure and control the liquid level of tank in ship or other industrial equipment. It is use for measure the normal temperature liquid. Main Technical Specificati...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Marine Level Gauge
Standard
GB
Certificate
CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Marine Level Gauge
Model / SKU
UHZ-511-Type-Normal-Temperature-Magnetic-Float-Type-Level-Gauge
Standard
GB
Certificate
CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
Warranty
12 Months unless specified otherwise
Origin
China
Product Description:
Main Technical Specification:
Indication accuracy: ±20mm
Nonimal length: 0.5 meter to 6 meter
Medium gravity: equal or greater than 0.5
Working temperature 1.0(1.6,2.5)MPa
Medium temperature: equal or less than 120 centigrade
Connection flange:GB2506-2005 DN20 PN16
Alarm switch: AC220V 1.0A retaining type(optional)
Output signal :DC24V 4~20mA (optional)
Matched valve:shut-off valve ,self-close valve,ball valve(optional)
Product Description:
It can be used to measure and control the liquid level of tank in ship or other industrial equipment.
It is use for measure the normal temperature liquid.
Main Technical Specification:
Indication accuracy: ±20mm
Nonimal length: 0.5 meter to 6 meter
Medium gravity: equal or greater than 0.5
Working temperature 1.0(1.6,2.5)MPa
Medium temperature: equal or less than 120 centigrade
Connection flange:GB2506-2005 DN20 PN16
Alarm switch: AC220V 1.0A retaining type(optional)
Output signal :DC24V 4~20mA (optional)
Matched valve:shut-off valve ,self-close valve,ball valve(optional)
Model Sign:
Overall Length:
