| Item | Chain Size | Working Load Limit | Proof Load (lbs) | Minimum Ultimate Load | Weight | Handle Length |
| (in.) | (lbs.) | (lbs.) | (lbs.) | (lbs.) | (in.) | |
| JB10 | 5/16-3/8 | 5400 | 10800 | 19000 | 7.8 | 13.42 |
| JB11 | 3/8-1/2 | 9200 | 18400 | 33000 | 7.8 | 13.92 |
| JB12 | 1/2-5/8 | 13000 | 26000 | 46000 | 8.5 | 13.92 |
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Load Binder

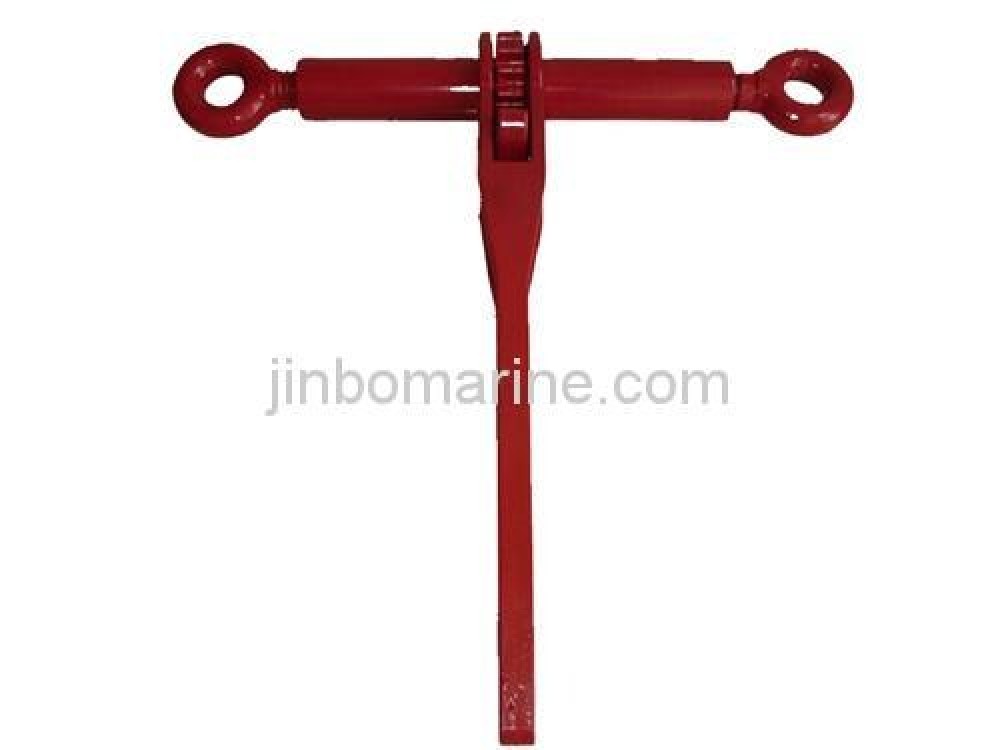

US Type Ratchet Type Load Binders Without Links and Hooks
Size Table Item Chain Size Working Load Limit Proof Load (lbs) Minimum Ultimate Load W...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Load Binder
Standard
EN
Material
45# Steel
Weight / Size
Size Table Item Chain Size Working Load Limit Proof Load (lbs) Minimum U...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Load Binder
Model / SKU
US-Type-Ratchet-Type-Load-Binders-Without-Links-and-Hooks
Standard
EN
Material
45# Steel
Weight / Size
Size Table Item Chain Size Working Load Limit Proof Load (lbs) Minimum Ultimate Load Weight Handle Length (in.) (lbs.) (lbs.) (lbs.) (lbs.) (in.) JB10 5/16-3/8 5400 10800 19000 7.8 13.42 JB11 3/8-1/2 9200 18400 33000 7.8 13.92 JB12 1/2-5/8 13000 26000 46000 8.5 13.92
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
