Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Yacht Windlass & Winch

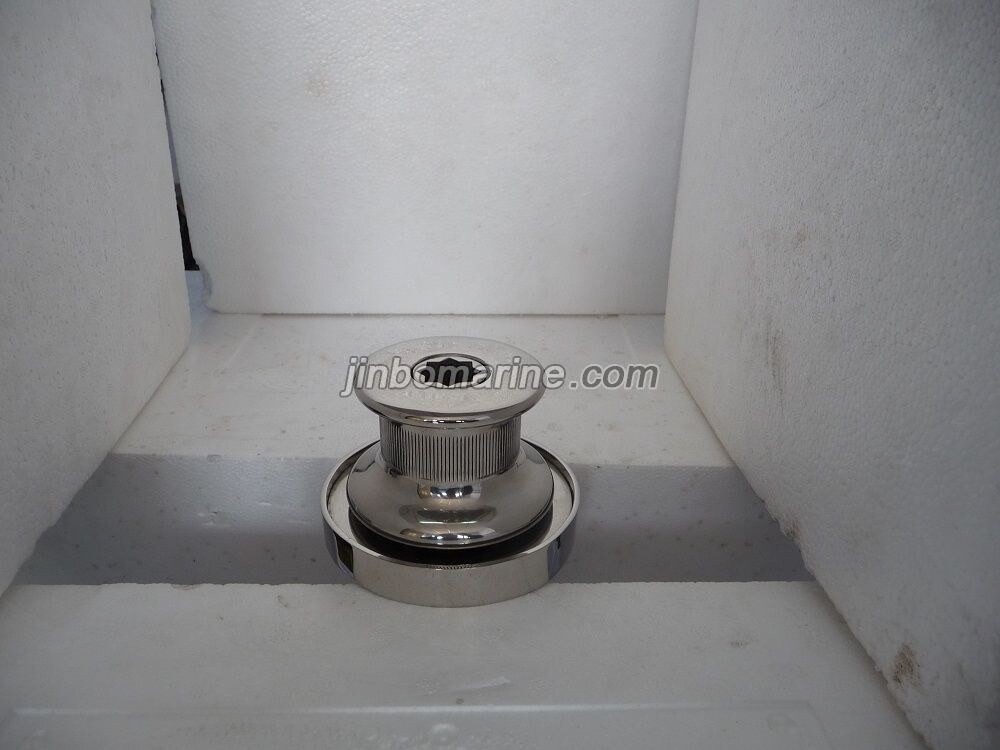

VC Series Yatch Capstan Winch

VC Series Yatch Capstan Winch Features 1.Designed for simple, low cost anchor recovery on smaller boats and rope hauling on larger vessels 2.line hauling from any direction 3.High quality finish...

ISO9001 Supplier Class Certificate Export Supply
VC Series Yatch Capstan Winch

Key Highlights

Category
Yacht Windlass & Winch
Standard
EN
Material
Stainless steel 304,316, 316L
Weight / Size
VC Series Yatch Capstan Winch Features 1.Designed for simple, low cost a...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Yacht Windlass & Winch
Model / SKU
VC-Series-Yatch-Capstan-Winch
Standard
EN
Material
Stainless steel 304,316, 316L
Weight / Size
VC Series Yatch Capstan Winch Features 1.Designed for simple, low cost anchor recovery on smaller boats and rope hauling on larger vessels 2.line hauling from any direction 3.High quality finish on above deck components 4.Simplified through deck installation by modular design and precise alignment of gearbox to the top works utilising marine-grade stainless steel bolts 5.Compact, reliable gearbox, made of corrosion resistant material 6.Heavy duty ,dual direction motors, designed for marine winches 7.Easily disassembled for servicing 8.Fit include hand-switch, foot-switch, control box and wrench Specifications VC series Specifications Model Weight Power Motor No load Max.
Surface
VC Series Yatch Capstan Winch Features 1.Designed for simple, low cost anchor recovery on smaller boats and rope hauling on larger vessels 2.line hauling from any direction 3.High quality finish on above deck components 4.Simplified through deck installation by modular design and precise alignment of gearbox to the top works utilising marine-grade stainless steel bolts 5.Compact, reliable gearbox, made of corrosion resistant material 6.Heavy duty ,dual direction motors, designed for marine winches 7.Easily disassembled for servicing 8.Fit include hand-switch, foot-switch, control box and wrench Specifications VC series Specifications Model Weight Power Motor No load Max.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Contents
  1. VC Series Yatch Capstan Winch
  2. Features
  3. Specifications

VC Series Yatch Capstan Winch

Features

1.Designed for simple, low cost anchor recovery on smaller boats and rope hauling on larger vessels

2.line hauling from any direction

3.High quality finish on above deck components

4.Simplified through deck installation by modular design and precise alignment of gearbox to the top works utilising marine-grade stainless steel bolts

5.Compact, reliable gearbox, made of corrosion resistant material

6.Heavy duty ,dual direction motors, designed for marine winches

7.Easily disassembled for servicing

8.Fit include hand-switch, foot-switch, control box and wrench


Specifications

VC series Specifications
Model Weight Power Motor No load Max. Max. Line Rope Chain
Net(DC) DC (W) absorption load Pull Speed size size
YDVC-001 17KG 12V/24V 600 50A 190kg 680kg 30m/min 12mm 6-7mm
YDVC-002 22KG 12V/24V 1000 100A 350kg 950kg 25m/min 14-16mm 8-10mm
