The machine adopts 3-roller symmetrical structure with the upper roller moving vertically in the center between the two lower rollers, which is achieved through the drive of the screw, the nut, the worm and he lead screw, The two lower rollers rotates, and provides the plate materials with torque through the engagement of the output gear of the moderator with the moderator with the gear of the lower rollers. The disadvantage of the machine is that the ends of the plate materials need to have the help from other equipment for pre-bending.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Shipbuilding Steel
W11 Series Mechanical 3-roller Symmetrical For shipyard

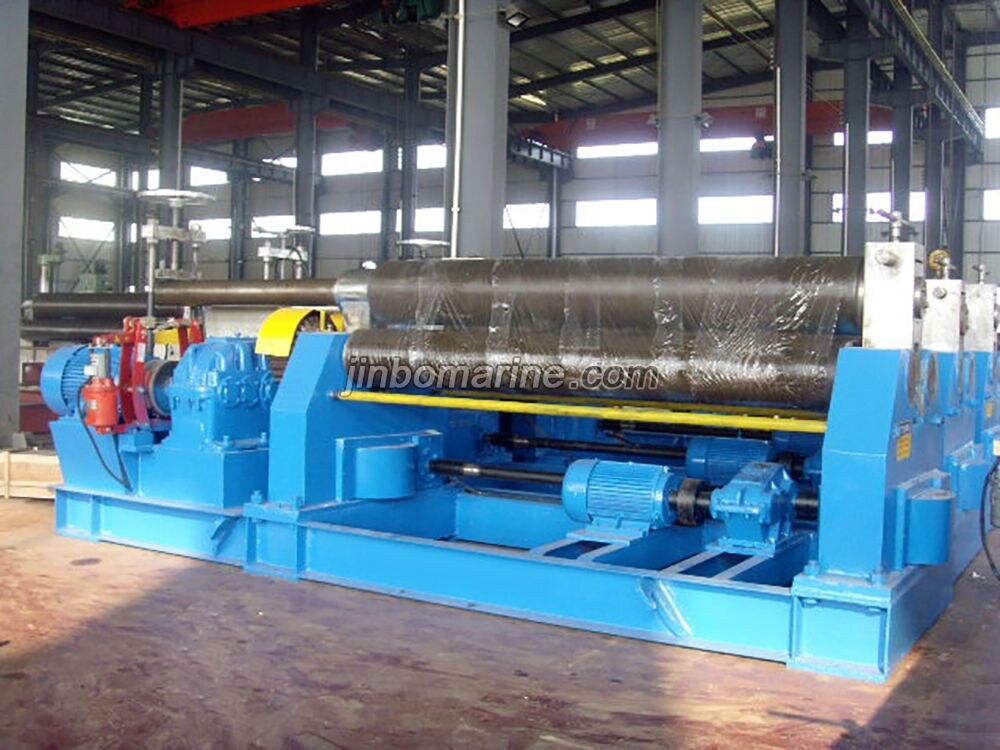

W11 Series Mechanical 3-roller Symmetrical Characteristics The machine adopts 3-roller symmetrical structure with the upper roller moving vertically in the center between the two lower rollers, which is achiev...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Shipbuilding Steel
Standard
DIN
Material
W11 Series Mechanical 3-roller Symmetrical Characteristics The machine a...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Shipbuilding Steel
Model / SKU
W11-Series-Mechanical-3-roller-Symmetrical-For-shipyard
Standard
DIN
Material
W11 Series Mechanical 3-roller Symmetrical Characteristics The machine adopts 3-roller symmetrical structure with the upper roller moving vertically in the center between the two lower rollers, which is achieved through the drive of the screw, the nut, the worm and he lead screw, The two lower rollers rotates, and provides the plate materials with torque through the engagement of the output gear of the moderator with the moderator with the gear of the lower rollers.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
W11 Series Mechanical 3-roller Symmetrical Characteristics
W11 Series Mechanical 3-roller Symmetrical Technical Specifications
| Model | Max rolling | Max rolling | Diameter of | Diameter of | Central distance | Min full loading | Rolling | Motor |
| thickness | width | top roller | bottom roller | between | diameter | speed | power | |
| bottom roller | of coiled plate | |||||||
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (m/min) | (KW) | |
| W11-3x2000 | 3 | 2000 | 165 | 140 | 160 | 350 | 4 | 4 |
| W11-3x3100 | 3 | 3100 | 180 | 140 | 220 | 450 | 4.5 | 4 |
| W11-3x3200 | 3 | 3200 | 180 | 150 | 220 | 450 | 4.5 | 4 |
| W11-4x1500 | 4 | 1500 | 180 | 160 | 200 | 400 | 5 | 4 |
| W11-4x2000 | 4 | 2000 | 160 | 140 | 220 | 450 | 4 | 4 |
| W11-4x2500 | 4 | 2500 | 180 | 150 | 220 | 450 | 4.5 | 4 |
| W11-4x3000 | 4 | 3000 | 210 | 180 | 260 | 400 | 4 | 5.5 |
| W11-4x3100 | 4 | 3100 | 180 | 160 | 220 | 450 | 4.5 | 5.5 |
| W11-4x4000 | 4 | 4000 | 260 | 180 | 259 | 600 | 4 | 5.5 |
| W11-6x1500 | 6 | 1500 | 185 | 170 | 220 | 450 | 5 | 4 |
| W11-6x2000 | 6 | 2000 | 190 | 170 | 250 | 400 | 4 | 5.5 |
| W11-6x2500 | 6 | 2500 | 220 | 170 | 280 | 500 | 4.5 | 5.5 |
| W11-6x3000 | 6 | 3000 | 240 | 220 | 280 | 600 | 4 | 7.5 |
| W11-6x3200 | 6 | 3200 | 240 | 220 | 280 | 600 | 4 | 7.5 |
| W11-6x4000 | 6 | 4000 | 250 | 190 | 259 | 600 | 4 | 7.5 |
| W11-8x1000 | 8 | 1000 | 150 | 135 | 220 | 250 | 4 | 4 |
| W11-8x2000 | 8 | 2000 | 200 | 170 | 260 | 500 | 4 | 5.5 |
| W11-8x2500 | 8 | 2500 | 240 | 180 | 280 | 600 | 4 | 7.5 |
| W11-8x3000 | 8 | 3000 | 250 | 200 | 280 | 400 | 4 | 7.5 |
| W11-8x3100 | 8 | 3100 | 250 | 200 | 280 | 400 | 4 | 7.5 |
| W11-8x3200 | 8 | 3200 | 260 | 200 | 280 | 400 | 4 | 7.5 |
| W11-8x5000 | 8 | 5000 | 320 | 240 | 360 | 500 | 4 | 11 |
| W11-10x1500 | 10 | 1500 | 185 | 170 | 260 | 550 | 4 | 5.5 |
| W11-10x2000 | 10 | 2000 | 220 | 180 | 280 | 550 | 4 | 7.5 |
| W11-10x3000 | 10 | 3000 | 260 | 240 | 360 | 500 | 4 | 11 |
| W11-10x3200 | 10 | 3200 | 280 | 240 | 359 | 800 | 4 | 11 |
| W11-10x4000 | 10 | 4000 | 340 | 260 | 430 | 800 | 4 | 15 |
| W11-12x1500 | 12 | 1500 | 220 | 200 | 280 | 600 | 4 | 7.5 |
| W11-12x2000 | 12 | 2000 | 240 | 180 | 280 | 600 | 4 | 7.5 |
| W11-12x2500 | 12 | 2500 | 260 | 220 | 320 | 600 | 4 | 7.5 |
| W11-12x3000 | 12 | 3000 | 280 | 250 | 360 | 700 | 4 | 11 |
| W11-12x3200 | 12 | 3200 | 280 | 250 | 360 | 700 | 4 | 11 |
| W11-12x4000 | 12 | 4000 | 400 | 300 | 430 | 1000 | 4 | 15 |
| W11-14x3000 | 14 | 3000 | 280 | 250 | 359 | 700 | 4 | 11 |
| W11-16x1500 | 16 | 1500 | 260 | 220 | 320 | 700 | 4 | 7.5 |
| W11-16x2000 | 16 | 2000 | 260 | 220 | 320 | 700 | 4 | 7.5 |
| W11-16x2500 | 16 | 2500 | 280 | 240 | 360 | 700 | 4 | 11 |
| W11-16x3000 | 16 | 3000 | 340 | 260 | 440 | 800 | 4 | 15 |
| W11-16x3200 | 16 | 3200 | 340 | 280 | 440 | 800 | 4 | 15 |
| W11-20x2000 | 20 | 2000 | 280 | 240 | 360 | 700 | 4 | 15 |
| W11-20x2500 | 20 | 2500 | 330 | 260 | 440 | 850 | 4 | 15 |
| W11-25x2000 | 25 | 2000 | 330 | 260 | 440 | 900 | 4 | 15 |
| W11-25x2500 | 25 | 2500 | 360 | 280 | 480 | 1200 | 4 | 22 |
| W11-25x3000 | 25 | 3000 | 420 | 350 | 550 | 1200 | 4 | 22 |
| W11-30x2500 | 30 | 2500 | 420 | 360 | 550 | 1200 | 4 | 30 |
| W11-30x3000 | 30 | 3000 | 450 | 390 | 600 | 1200 | 4 | 30 |
