It is a hydraulic 3-roller rolling machine. It is used at room temperature and with this machine you can finish all the processes including pre-bending(end-bending), rolling a plate and setting it round at one time without turning back after feeding the plate.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Shipbuilding Steel

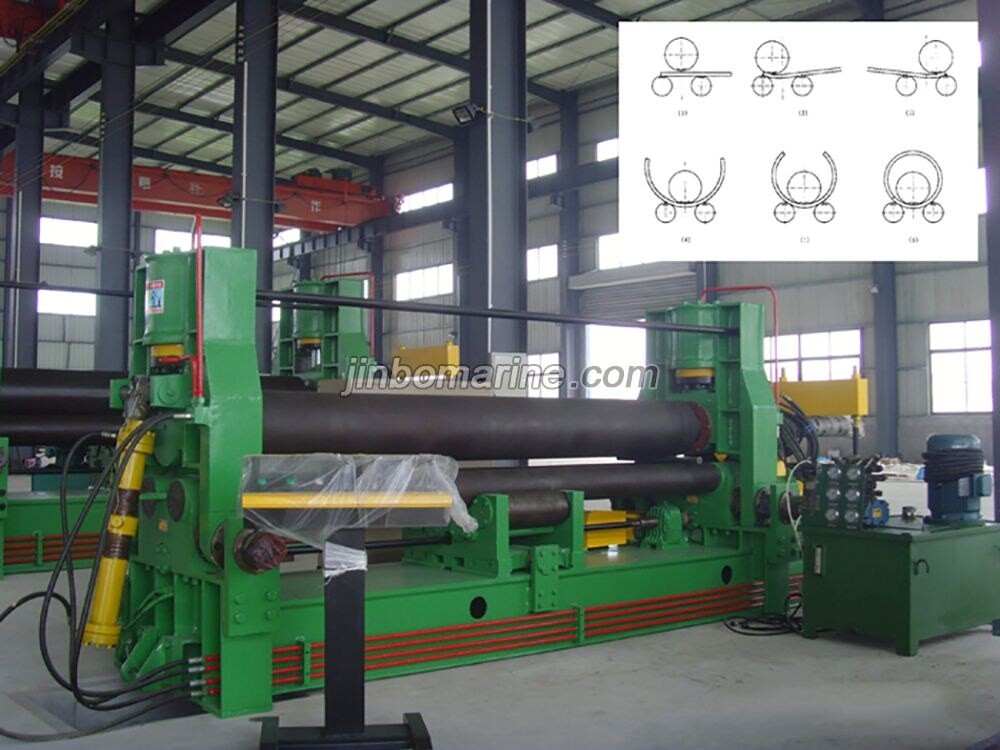

W11S Series Upper-roller Universal Plate Rolling Machine For Shipyard
W11S Series Upper-roller Universal Plate Rolling Machine It is a hydraulic 3-roller rolling machine. It is used at room temperature and with this machine you can finish all the processes including pre-bending(end-b...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Shipbuilding Steel
Standard
DIN
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Shipbuilding Steel
Model / SKU
W11S-Series-Upper-roller-Universal-Plate-Rolling-Machine-For-Shipyard
Standard
DIN
Surface
It is used at room temperature and with this machine you can finish all the processes including pre-bending(end-bending), rolling a plate and setting it round at one time without turning back after feeding the plate.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
W11S Series Upper-roller Universal Plate Rolling Machine
W11S Series Upper-roller Universal Plate Rolling Machine Technical Specifications
| Model | Pressure | Max bending thickness | Max rolling | Upper roller | Down roller | Rollers | Motor kw | |||
| (mm) | length | diameter | diameter | distance | ||||||
| Pre-bending | Max bending | Driving | Hydraulic | Moving | ||||||
| (Ton) | mm | mm | mm | mm | mm | mm | ||||
| W11S-6x1500 | 25 | 4.8 | 6 | 1500 | 175 | 125 | 160 | 3 | 2.2 | 0.75 |
| W11S-6x2000 | 25 | 4.8 | 6 | 2000 | 195 | 125 | 160 | 3 | 2.2 | 0.75 |
| W11S-6x2500 | 25 | 4.8 | 6 | 2500 | 205 | 135 | 180 | 3 | 2.2 | 0.75 |
| W11S-6x3000 | 37 | 4.8 | 6 | 3000 | 215 | 135 | 180 | 4 | 2.2 | 0.75 |
| W11S-8x1500 | 25 | 6.4 | 8 | 1500 | 175 | 125 | 160 | 3 | 2.2 | 0.75 |
| W11S-8x2000 | 25 | 6.4 | 8 | 2000 | 195 | 125 | 160 | 3 | 2.2 | 0.75 |
| W11S-8x2500 | 37 | 6.4 | 8 | 2500 | 205 | 135 | 180 | 4 | 2.2 | 0.75 |
| W11S-8x3000 | 45 | 6.4 | 8 | 3000 | 215 | 135 | 180 | 4 | 2.2 | 0.75 |
| W11S-10x1500 | 37 | 8 | 10 | 1500 | 205 | 135 | 180 | 4 | 2.2 | 0.75 |
| W11S-10x2000 | 45 | 8 | 10 | 2000 | 215 | 135 | 180 | 4 | 2.2 | 0.75 |
| W11S-10x2500 | 45 | 8 | 10 | 2500 | 235 | 135 | 180 | 4 | 2.2 | 0.75 |
| W11S-10x3000 | 65 | 8 | 10 | 3000 | 245 | 135 | 180 | 5.5 | 4 | 0.75 |
| W11S-10x4000 | 75 | 8 | 10 | 4000 | 255 | 150 | 245 | 7.5 | 4 | 1.1 |
| W11S-12x2000 | 65 | 9.6 | 12 | 2000 | 250 | 145 | 200 | 5.5 | 4 | 0.75 |
| W11S-12x2500 | 65 | 9.6 | 12 | 2500 | 255 | 150 | 245 | 5.5 | 4 | 0.75 |
| W11S-12x3000 | 75 | 9.6 | 12 | 3000 | 270 | 150 | 245 | 7.5 | 4 | 1.1 |
| W11S-12x6000 | 100 | 9.6 | 12 | 6000 | 290 | 150 | 245 | 15 | 5.5 | 1.5 |
| W11S-16x2000 | 75 | 12.8 | 16 | 2000 | 255 | 150 | 245 | 7.5 | 4 | 1.1 |
| W11S-16x2500 | 100 | 12.8 | 16 | 2500 | 270 | 150 | 245 | 15 | 5.5 | 1.5 |
| W11S-16x3200 | 100 | 12.8 | 16 | 3200 | 290 | 150 | 245 | 15 | 5.5 | 1.5 |
| W11S-16x6000 | 190 | 12.8 | 16 | 6000 | 300 | 165 | 270 | 22 | 7.5 | 4 |
| W11S-20x2000 | 100 | 16 | 20 | 2000 | 325 | 165 | 270 | 15 | 5.5 | 1.5 |
| W11S-20x2500 | 130 | 16 | 20 | 2500 | 330 | 180 | 300 | 15 | 5.5 | 1.5 |
| W11S-20x3000 | 160 | 16 | 20 | 3000 | 350 | 180 | 300 | 18.5 | 7.5 | 2.2 |
| W11S-25x2500 | 190 | 20 | 25 | 2500 | 350 | 180 | 300 | 18.5 | 7.5 | 2.2 |
| W11S-30x2500 | 230 | 25 | 30 | 2500 | 410 | 235 | 380 | 30 | 11 | 4 |
| W11S-30x3000 | 380 | 25 | 30 | 3000 | 459 | 250 | 400 | 30 | 11 | 4 |
| W11S-40x2500 | 380 | 35 | 40 | 2500 | 500 | 275 | 460 | 45 | 22 | 5.5 |
| W11S-40x3200 | 430 | 35 | 40 | 3200 | 540 | 290 | 500 | 55 | 22 | 5.5 |
| W11S-50x2500 | 540 | 45 | 50 | 2500 | 590 | 340 | 610 | 45 | 22 | 11 |
