Marine Temperature Instrument

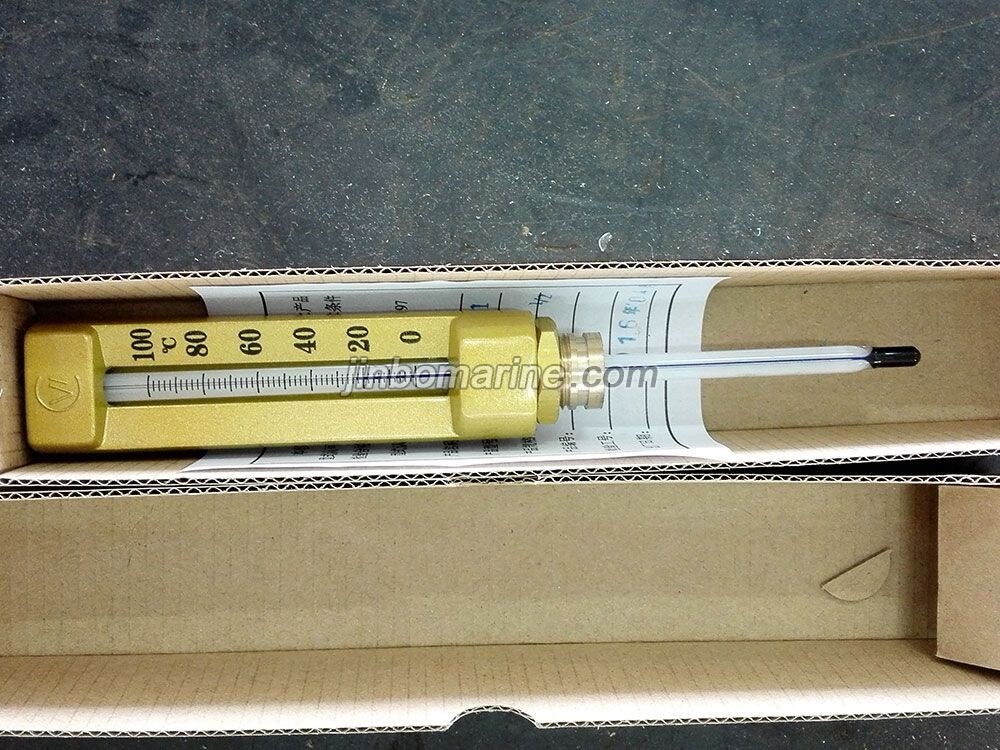

WLG-421 Straight Type Metallic Protector Thermometer

Product Description: Metallic protector thermometer consists of glass thermometer and metallic protector.It is used to measure medium temperature of liquid,gas of tank and pipeline in ship and other industrial equi...

ISO9001 Supplier Class Certificate Export Supply
WLG-421 Straight Type Metallic Protector Thermometer

Key Highlights

Category
Marine Temperature Instrument
Standard
EN
Weight / Size
Measurement range (℃) Temperature sensor liquid Model Nonimal length(mm)...
Certificate
BV,ABS,CCS etc
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Temperature Instrument
Model / SKU
WLG-421-Straight-Type-Metallic-Protector-Thermometer
Standard
EN
Weight / Size
Measurement range (℃) Temperature sensor liquid Model Nonimal length(mm) Connection size Upper body length Lower body length -50~50 -30~50 -30~100 -30~160 0~50 0~100 0~150 0~200 0~300 0~350 0~400 0~450 0~500 0~600 Organic liquid Mercury(Hg WLG-11-C 130 ±2 25 30 40 60 80 100 120 160 200 G1/2" G3/4" M20x1.5 M27x2 WLG-12-C 150 ±2 WLG-13-C 200 ±2 WLG-421-C 110 ±2 WLG-422-C 150 ±2 WLG-423-C 200 ±2 0~100 0~150 0~200 Organic liquid WLG-1/2P-C 110 40 G1/2" WLG-1/2PL-C 110 100 G1/2" WLG-3/8-C 70 25 G3/8" 0~500 0~600 Mercury(Hg) WLG-162-C 162 95 G1/2" WLG-212-C 212 125 G1/2" WLG-242-C 242 95 G1/2" Measuring accuracy:
Certificate
BV,ABS,CCS etc
Warranty
12 Months unless specified otherwise
Origin
China

Product Description:

Metallic protector thermometer consists of glass thermometer and metallic protector.It is used to measure medium temperature of liquid,gas of tank and pipeline in ship and other industrial equipment.

Structure type: Straight type, 90 degree angle type, 135 degree angle type.

Main Technical Specification:

Measurement range
(℃) 		Temperature sensor liquid Model Nonimal length(mm) Connection size
Upper body length Lower body length
-50~50
-30~50
-30~100
-30~160
0~50
0~100
0~150
0~200
0~300
0~350
0~400
0~450
0~500
0~600 		Organic liquid
Mercury(Hg 		WLG-11-C 130 ±2 25
30
40
60
80
100
120
160
200 		G1/2"
G3/4"
M20x1.5
M27x2
WLG-12-C 150 ±2
WLG-13-C 200 ±2
WLG-421-C 110 ±2
WLG-422-C 150 ±2
WLG-423-C 200 ±2
0~100
0~150
0~200 		Organic liquid WLG-1/2P-C 110 40 G1/2"
WLG-1/2PL-C 110 100 G1/2"
WLG-3/8-C 70 25 G3/8"
0~500
0~600 		Mercury(Hg) WLG-162-C 162 95 G1/2"
WLG-212-C 212 125 G1/2"
WLG-242-C 242 95 G1/2"
Measuring accuracy: ±1~2 scale

Model Design:
