Max Pressure 0.8/1.0MPa
V-type/W-type arranged, Low vibration
Air-cooled type, avoid costs for water circuit
Lubrication system: splash/pressure oil lubrication
Performance data with 5% tolerance
Standard voltage and frequency: 380V/50HZ, 440V/60HZ.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Low Pressure Air Cooled Marine Air Compressor

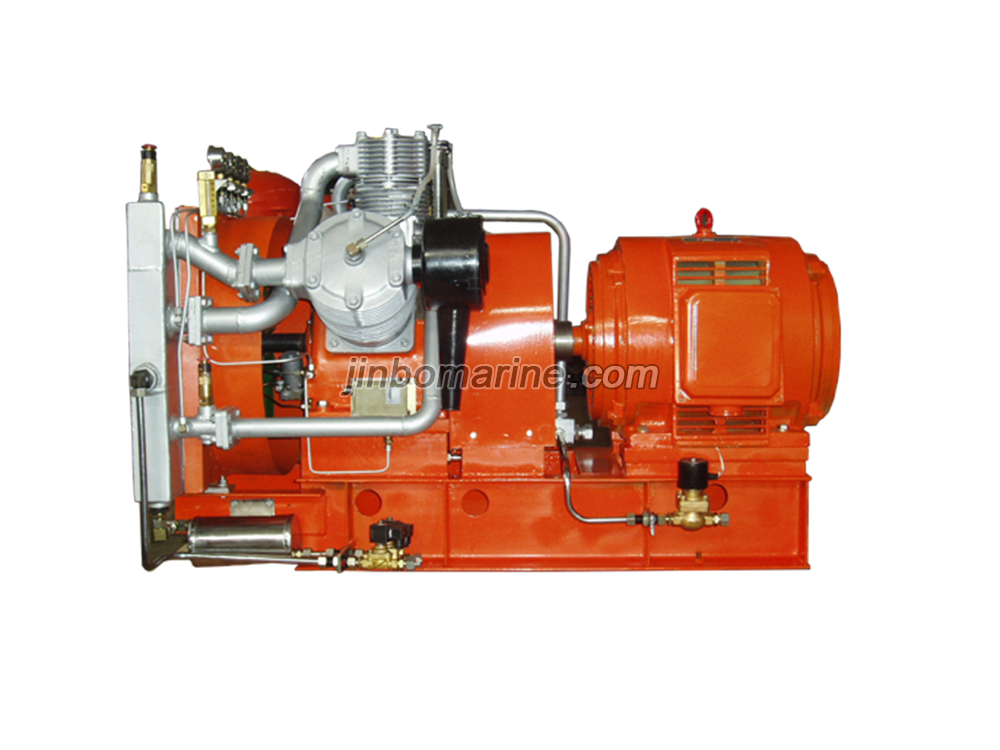

WP18L Marine Low Pressure Air Compressor
Design Particulars: Max Pressure 0.8/1.0MPa V-type/W-type arranged, Low vibration Air-cooled type, avoid costs for water circuit Lubrication system: splash/pressure oil lubrication Perform...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Low Pressure Air Cooled Marine Air Compressor
Standard
EN
Weight / Size
Model Pressure (MPa) Stages Speed/rpm （50Hz） Speed/rpm （60Hz） Capacity (...
Certificate
CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Low Pressure Air Cooled Marine Air Compressor
Model / SKU
WP18L-Marine-Low-Pressure-Air-Compressor
Standard
EN
Weight / Size
Model Pressure (MPa) Stages Speed/rpm （50Hz） Speed/rpm （60Hz） Capacity (m3/h) Power required (KW) Power of motor (KW) Cooling air required (L/min） Dimension (LxWxH) WP18L 0.8/1.0 1 1170 20 2.1 3 11 884*640*534 1 1450 24 2.5 3 14 1 1750 30 3.2 4 18 WP25L 0.8/1.0 1 1170 38 3.6 4 20 884*640*534 1 1450 44 4.2 5.5 24 1 1750 55 4.2 5.5 36 WP32L 0.8/1.0 1 970 38 5.4 5.5 30 930*640*534 1 1170 45 5.6 7.5 46 1 1450 56 6.8 7.5 56 1 1750 68 8.2 11 68 Special Pressure 4.0Mpa Model:
Certificate
CCS
Warranty
12 Months unless specified otherwise
Origin
China
Design Particulars:
Tecahnical Data:
| Model | Pressure (MPa) | Stages | Speed/rpm （50Hz） | Speed/rpm （60Hz） | Capacity (m3/h) | Power required (KW) | Power of motor (KW) | Cooling air required (L/min） | Dimension (LxWxH) |
| WP18L | 0.8/1.0 | 1 | 1170 | 20 | 2.1 | 3 | 11 | 884*640*534 | |
| 1 | 1450 | 24 | 2.5 | 3 | 14 | ||||
| 1 | 1750 | 30 | 3.2 | 4 | 18 | ||||
| WP25L | 0.8/1.0 | 1 | 1170 | 38 | 3.6 | 4 | 20 | 884*640*534 | |
| 1 | 1450 | 44 | 4.2 | 5.5 | 24 | ||||
| 1 | 1750 | 55 | 4.2 | 5.5 | 36 | ||||
| WP32L | 0.8/1.0 | 1 | 970 | 38 | 5.4 | 5.5 | 30 | 930*640*534 | |
| 1 | 1170 | 45 | 5.6 | 7.5 | 46 | ||||
| 1 | 1450 | 56 | 6.8 | 7.5 | 56 | ||||
| 1 | 1750 | 68 | 8.2 | 11 | 68 |
Special Pressure 4.0Mpa Model:
| Model | Discharge Pressure (MPa) | inlet Pressure (MPa) | Stages | Speed/rpm （50Hz） | Capacity (m3/h) | Power required (KW) | Power of motor (KW) | Cooling air required (L/min） | Dimension (LxWxH) |
| WP18L | 4 | 0.5 | 1 | 970 | 30 | 5.4 | 5.5 | 30 | 884*640*534 |
