Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Sensor

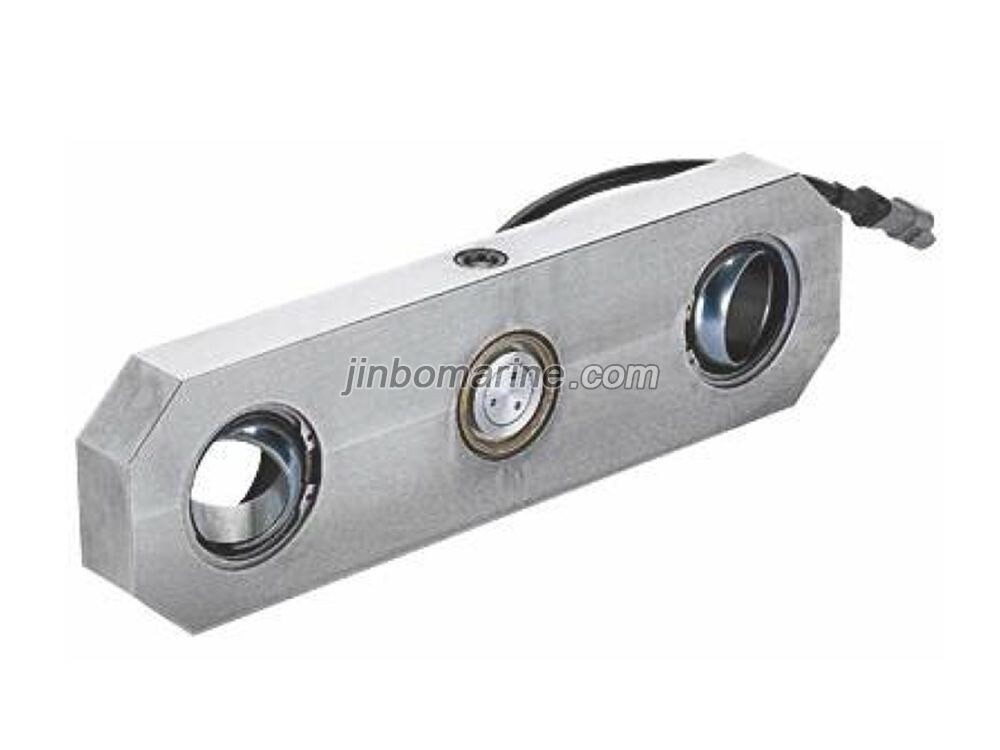

WS-BH Plate-Ring Type Tension Sensor

Range: start from 500kg.   Applicaton:Load sensing,transfer transportation system,wire rope pull strength measurement.   Accuracy of measurement: 1.0±0.005mv/v   Ultimate o...

ISO9001 Supplier Class Certificate Export Supply
WS-BH Plate-Ring Type Tension Sensor

Key Highlights

Category
Sensor
Standard
EN
Material
1.0±0.005mv/v   Ultimate overload:250%F.S   Protection Class:IP68    Saf...
Weight / Size
start from 500kg.   Applicaton:Load sensing,transfer transportation syst...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Sensor
Model / SKU
WS-BH-Plate-Ring-Type-Tension-Sensor
Standard
EN
Material
1.0±0.005mv/v   Ultimate overload:250%F.S   Protection Class:IP68    Safe Overload:150%F.S       Temperature range:-30 to 70 centigrade       Features:  Built-in film sensing element.  Stainless steel material.   The integrated amplifier circuit.  Long term stability.   Strong impact resistance.
Weight / Size
start from 500kg.   Applicaton:Load sensing,transfer transportation system,wire rope pull strength measurement.   Accuracy of measurement:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

China WS-BH Plate-Ring Type Tension Sensor:

Range: start from 500kg.

Applicaton:Load sensing,transfer transportation system,wire rope pull strength measurement.

Accuracy of measurement: 1.0±0.005mv/v

Ultimate overload:250%F.S

Protection Class:IP68

Safe Overload:150%F.S

Temperature range:-30 to 70 centigrade

Features:

Built-in film sensing element.

Stainless steel material.

The integrated amplifier circuit.

Long term stability.

Strong impact resistance.
