Marine & Offshore Equipment Datasheet
Product Datasheet

Sensor

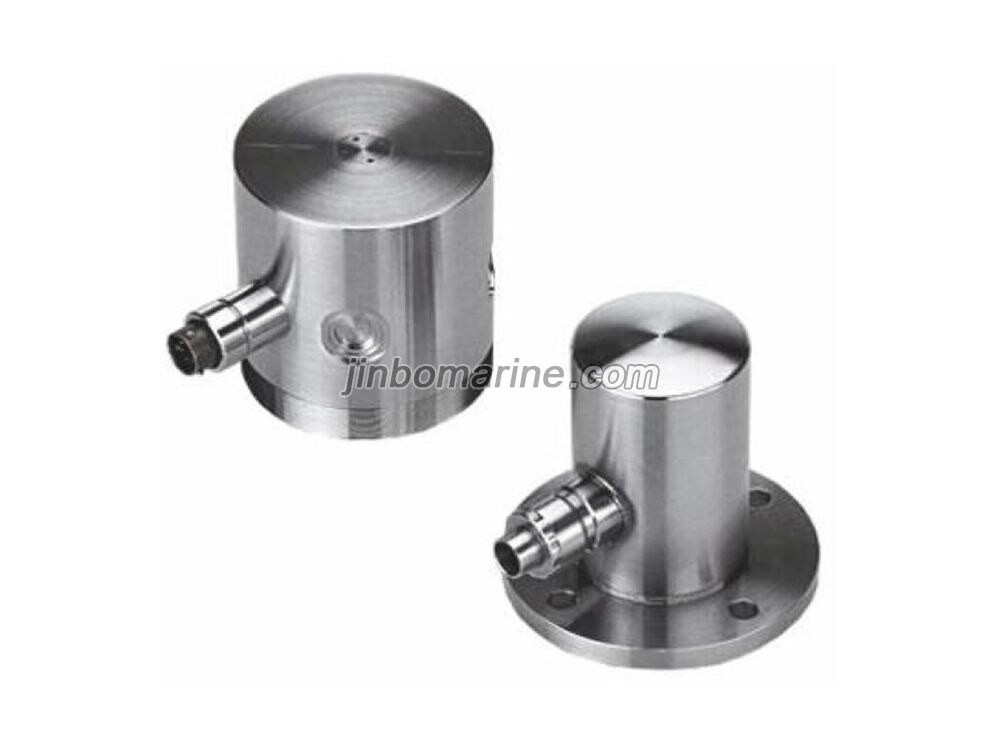

WS-ZS Weight Sensor

Range: 50kg  to 500ton.   Applicaton: Load sensing,transfer transportation system,wire rope pull strength measurement.   Accuracy of measurement: 1.0±0.005mv/v   ...

ISO9001 Supplier Class Certificate Export Supply
WS-ZS Weight Sensor

Key Highlights

Category
Sensor
Standard
EN
Material
1.0±0.005mv/v   Ultimate overload:250%F.S   Protection Class:IP68    Saf...
Weight / Size
50kg  to 500ton.   Applicaton:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Sensor
Model / SKU
WS-ZS-Weight-Sensor
Standard
EN
Material
1.0±0.005mv/v   Ultimate overload:250%F.S   Protection Class:IP68    Safe Overload:150%F.S       Temperature range:-30 to 70 centigrade       Features:  Built-in film sensing element.  Stainless steel material.   The integrated amplifier circuit.   Long term stability.   Strong impact resistance.  Suitable for dynamic and static measurements.
Weight / Size
50kg  to 500ton.   Applicaton:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Contents
  1. China WS-ZS Weight Sensor:
  2. Features:

China WS-ZS Weight Sensor:

Range: 50kg to 500ton.

Applicaton:

Load sensing,transfer transportation system,wire rope pull strength measurement.

Accuracy of measurement: 1.0±0.005mv/v

Ultimate overload:250%F.S

Protection Class:IP68

Safe Overload:150%F.S

Temperature range:-30 to 70 centigrade

Features:

Built-in film sensing element.

Stainless steel material.

The integrated amplifier circuit.

Long term stability.

Strong impact resistance.

Suitable for dynamic and static measurements.

Tiny temperature drift error.
