Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Sensor

WZPK-21R-C-E Type Temperature Transmitter

Product Description: WZPK-21R-C-E Type Temperature Transmitter adopt high quality platium resistor as temperature sensing element,it features high measuring accuracy,steady and reliablity,long lifetime. It has wide...

ISO9001 Supplier Class Certificate Export Supply
WZPK-21R-C-E Type Temperature Transmitter

Key Highlights

Category
Sensor
Standard
EN
Material
Model Temperature-sensing element Measuring range Protective cover Nomin...
Certificate
CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Sensor
Model / SKU
WZPK-21R-C-E-Type-Temperature-Transmitter
Standard
EN
Material
Model Temperature-sensing element Measuring range Protective cover Nominal pressure Output signal Material Diameter WZPK pt100 pt500 pt1000 -70~500 centigrade SUS304 SUS316L single/double layer 12mm 16mm 1.0Mpa Output resistance(2 wires,3 wires) Output DC 4~20mA(2 wires) Model Design:
Certificate
CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
Warranty
12 Months unless specified otherwise
Origin
China

Product Description:

WZPK-21R-C-E Type Temperature Transmitter adopt high quality platium resistor as temperature sensing element,it features high measuring accuracy,steady and reliablity,long lifetime. It has widely used to measure temperature of liquid,gas and steam in ship and other industrial equipment.

Main Technical Specification:

Model Temperature-sensing element Measuring range Protective cover Nominal pressure Output signal
Material Diameter
WZPK pt100
pt500
pt1000 		-70~500 centigrade SUS304
SUS316L
single/double layer 		12mm
16mm 		1.0Mpa Output resistance(2 wires,3 wires)
Output DC 4~20mA(2 wires)

Model Design:

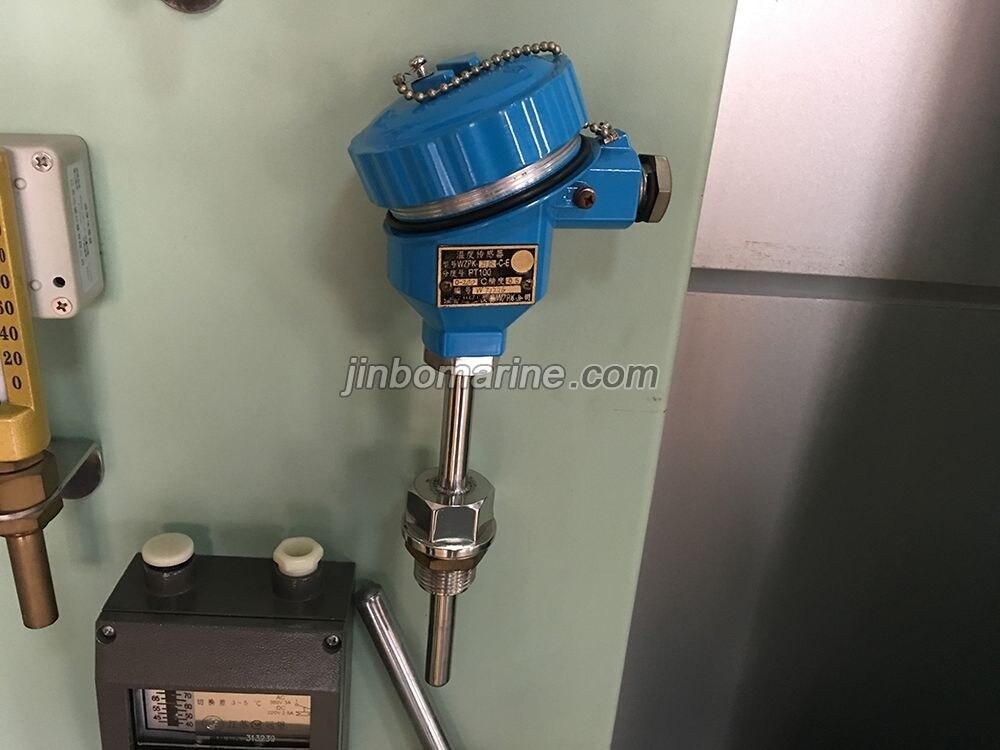

WZPK-21R-C-E Type Temperature Transmitter
