Heavy suction pipe is made by the highest quality of compound synthesis. Flexibility with long service life and light weight.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Air and General Purpose Hose
Water Suction and Discharge Rubber hose
Heavy suction pipe is made by the highest quality of compound synthesis. Flexibility with long service life and light weight. Main Specification ID Ply ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Air and General Purpose Hose
Standard
DIN
Material
Rubber
Weight / Size
Flexibility with long service life and light weight.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Air and General Purpose Hose
Model / SKU
Water-Suction-and-Discharge-Rubber-hose
Standard
DIN
Material
Rubber
Weight / Size
Flexibility with long service life and light weight.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

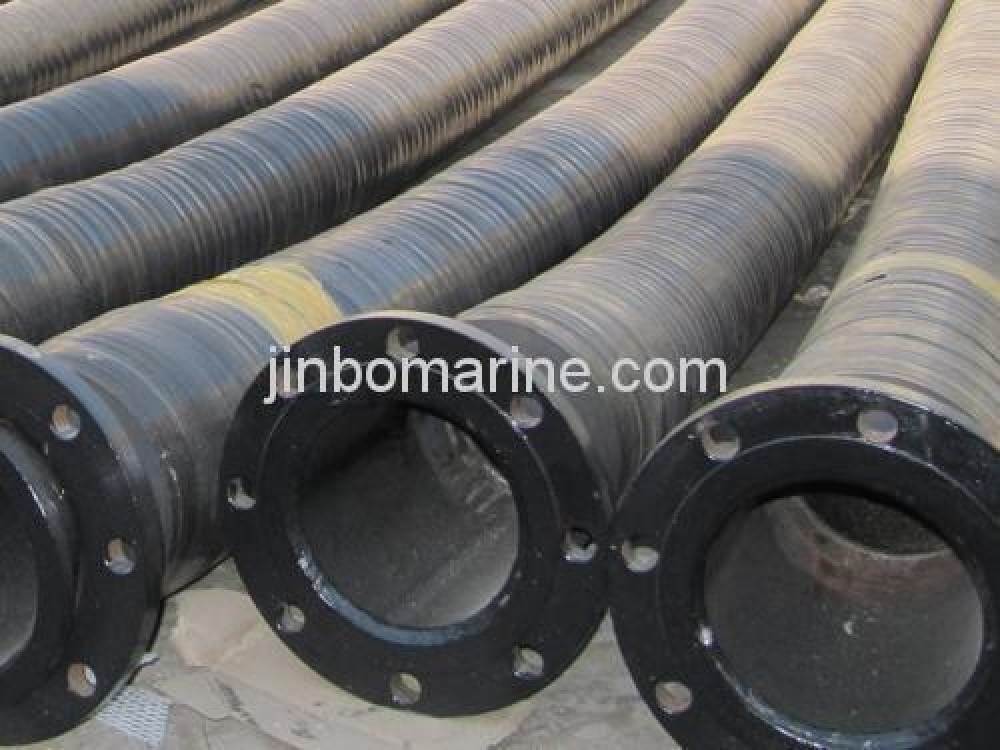

China Water Suction and Discharge Rubber hose:
Main Specification
| ID | Ply | OD | Length | Bending radius | WP | VP | Weight | |||||
| in | mm | Ply | in | mm | Ft | M | in | mm | Psi | Kg/cm² | mm-Hg | Kg/m |
| 1 | 25.4 | 2 | 1.437 | 36.5 | 200 | 60 | 6 | 150 | 150 | 10 | 736.6 | 0.89 |
| 1 1/4 | 31.8 | 2 | 1.689 | 42.9 | 200 | 60 | 8 | 200 | 150 | 10 | 736.6 | 1.04 |
| 1 1/2 | 38.1 | 2 | 1.937 | 49.2 | 200 | 60 | 10 | 250 | 150 | 10 | 736.6 | 1.21 |
| 2 | 50.8 | 2 | 2.457 | 62.4 | 200 | 60 | 12 | 300 | 150 | 10 | 736.6 | 1.69 |
| 2 1/2 | 63.5 | 2 | 2.957 | 75.1 | 200 | 60 | 15 | 375 | 150 | 10 | 736.6 | 2.04 |
| 3 | 76.2 | 2 | 3.496 | 88.8 | 200 | 60 | 20 | 500 | 150 | 10 | 736.6 | 2.8 |
| 4 | 101.6 | 2 | 4.587 | 116.5 | 200 | 60 | 28 | 700 | 150 | 10 | 736.6 | 4.67 |
| 5 | 127 | 4 | 5.752 | 146.1 | 200 | 60 | 40 | 1000 | 150 | 10 | 736.6 | 6.45 |
| 6 | 152.4 | 4 | 6.752 | 171.5 | 200 | 60 | 48 | 1200 | 150 | 10 | 736.6 | 7.63 |
| 8 | 203.2 | 4 | 8.854 | 224.9 | 100 | 30 | 64 | 1600 | 150 | 10 | 736.6 | 13.01 |
| 10 | 254 | 6 | 11.11 | 282.2 | 65 | 20 | 100 | 2500 | 150 | 10 | 736.6 | 21.98 |
