Marine Electrical Instrument

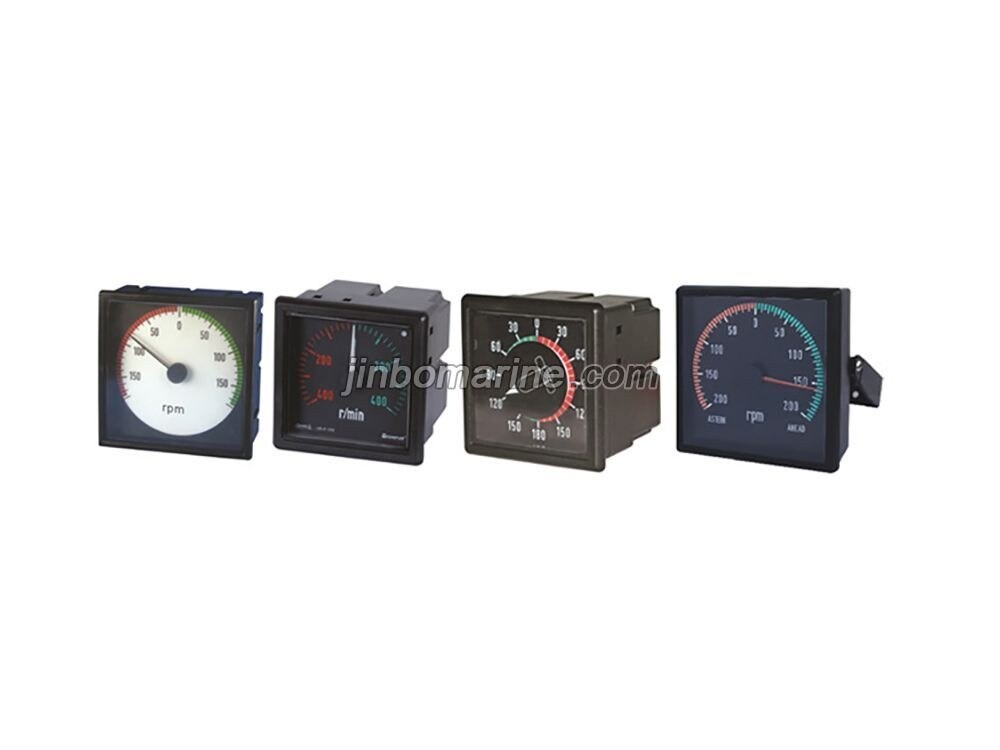

X-COIL Meter

Product Description: Using on controlling cab in vessels, indicating rotational speed and rudder angle.  The meter has self-developed X-Coil movement with built-in micro controller; pointer can do 360°clock...

ISO9001 Supplier Class Certificate Export Supply

Key HighlightsCategory
Marine Electrical Instrument
Standard
DIN
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Product Description:

Using on controlling cab in vessels, indicating rotational speed and rudder angle. The meter has self-developed X-Coil movement with built-in micro controller; pointer can do 360°clockwise or anti-clockwise rotation, providing illumination

on display with auxiliary power (DC 7-30V). Before the meter is energized, pointer can stop on any position.

The analogue signal can be input from single channel. For example, the standard signal is 0-10V, 4-20mA and so on. It also can be input from dual channels. For special SIN/COS, dual channels can share the same terminal. The meter has the error warning indication, the alarm LED is on the upper of the front case. If the meter is mal-function or failure, the LED will be blinking.

Feature:

a. Waterproof, Salt-mist resistance, Suitable for marine environment;

b. After energized and switched on supplementary light, the light beam fill out

the transparent pointer, easy to get reading;

c. Good mechanic performance, Shock resistance.

Specification:

1. Accuracy class: 0.5;

2. Ingress Protection: front panel IP66, rear part I P20;

3. Auxiliary power for supplementary light: DC7~30V.
