XZ series Vacuum Pump is a kind of rotary vane vacuum pump oil seal single stage vacuum pump. Used to pumping air in the sealed containerto get vacuum.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Vacuum Pump

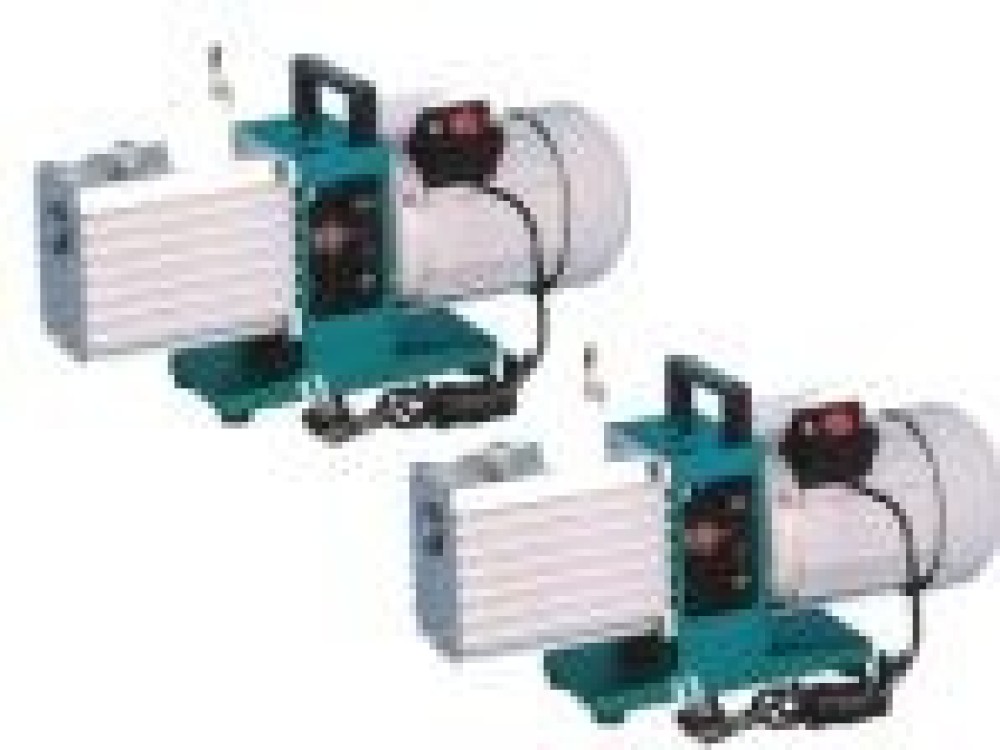

XZ Series Marine Vacuum Pump
XZ series Vacuum Pump is a kind of rotary vane vacuum pump oil seal single stage vacuum pump. Used to pumping air in the sealed containerto get vacuum. Main Specification Type ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Vacuum Pump
Material
Cast iron pump cast, Bronze impeller, Stainless steel pump shaft
Weight / Size
Main Specification Type Capacity L/S Presure Mpa Speed r/min Power W Vol...
Certificate
CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Vacuum Pump
Model / SKU
XZ-Series-Marine-Vacuum-Pump
Material
Cast iron pump cast, Bronze impeller, Stainless steel pump shaft
Weight / Size
Main Specification Type Capacity L/S Presure Mpa Speed r/min Power W Voltage V Caliber mm Weight kg Size mm XZ-0.5 0.5 10 1400 90 220 Φ6 7.5 251×112×217 XZ-1 1 10 1400 120 220 Φ6 7.8 268×112×211 XZ-1B 1 10 1400 120 220 Φ6 7.8 268×112×208 XZ-1B 1 10 1400 120 220 Φ13 8 268×112×222 XZ-2A 2 10 1400 250 220/380 Φ20 16 430×145×300 XZ-1G 1 10 1400 120 220 Φ6 8 268×112×225 XZ-1.5G 1.5 10 1400 135 220 Φ6 8 273×112×228 XZ-2G 2 10 2800 250 220 Φ6/Φ16 12.5 336×142×290
Certificate
CCS
Warranty
12 Months unless specified otherwise
Origin
China
China XZ Series Marine Vacuum Pump:
Main Specification
| Type | Capacity L/S | Presure Mpa | Speed r/min | Power W | Voltage V | Caliber mm | Weight kg | Size mm |
| XZ-0.5 | 0.5 | 10 | 1400 | 90 | 220 | Φ6 | 7.5 | 251×112×217 |
| XZ-1 | 1 | 10 | 1400 | 120 | 220 | Φ6 | 7.8 | 268×112×211 |
| XZ-1B | 1 | 10 | 1400 | 120 | 220 | Φ6 | 7.8 | 268×112×208 |
| XZ-1B | 1 | 10 | 1400 | 120 | 220 | Φ13 | 8 | 268×112×222 |
| XZ-2A | 2 | 10 | 1400 | 250 | 220/380 | Φ20 | 16 | 430×145×300 |
| XZ-1G | 1 | 10 | 1400 | 120 | 220 | Φ6 | 8 | 268×112×225 |
| XZ-1.5G | 1.5 | 10 | 1400 | 135 | 220 | Φ6 | 8 | 273×112×228 |
| XZ-2G | 2 | 10 | 2800 | 250 | 220 | Φ6/Φ16 | 12.5 | 336×142×290 |
