Product Datasheet
Marine Pressure Gauge

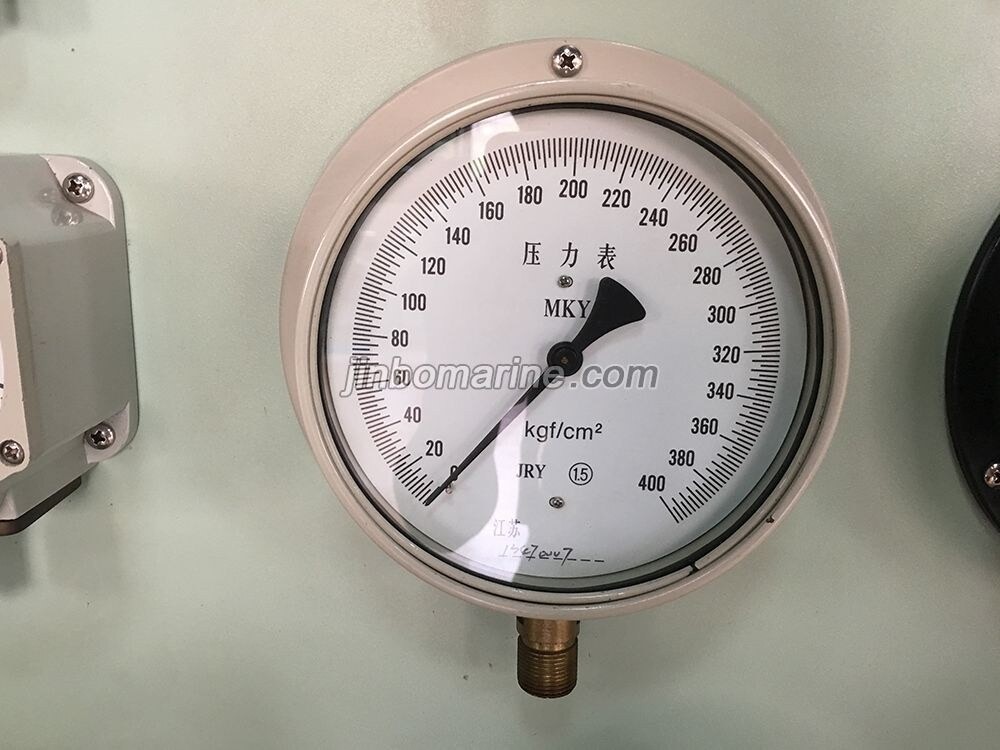

YC-150-T Type Pressure Gauge
Product Description: Pressure gauge is a pressure measuring instrument,the core is metal elastic element,the product in accordance with Marine technical standard. Used for measuring the pressure of gas,...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Marine Pressure Gauge
Standard
EN
Material
Material:Iron alloy / Ferroalloy,Aluminium alloy,Copper alloy,Stainless ...
Certificate
BV,ABS,CCS etc
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Marine Pressure Gauge
Model / SKU
YC-150-T-Type-Pressure-Gauge
Standard
EN
Material
Material:Iron alloy / Ferroalloy,Aluminium alloy,Copper alloy,Stainless steel.
Certificate
BV,ABS,CCS etc
Warranty
12 Months unless specified otherwise
Origin
China
Product Description:
Pressure gauge is a pressure measuring instrument,the core is metal elastic element,the product in accordance with Marine technical standard.
Used for measuring the pressure of gas,oil etc medium on the ship or other industrial equipment.
Parameter:
Material:Iron alloy / Ferroalloy,Aluminium alloy,Copper alloy,Stainless steel.
Accurancy:Grade 2.5,Grade 1.6
Dial Diameter:60mm,75mm,100mm,150mm,200mm.
Main Technical Specification:
| Type and feature | Model code | Dial diameter(mm) | Measure range(Mpa) | Accuracy | Connection thread | |
| Radial no side type | I | - | 60 | 0-0.06 0-0.1 0-0.16 0-0.25 0-0.4 0-0.6 0-1 0-1.6 0-2.5 0-4 0-6 0-10 0-16 0-25 0-40 0-60 | Grade 2.5 | M14x1.5 |
| Radial back side type | II | T | ||||
| Axial no side type | IV | Z | ||||
| Axial front square type | - | ZF | M10x1 M14x1.5 | |||
| Axial front side type | III | ZT | ||||
| Radial cutted side type | II | T | 75 | G 3/8" | ||
| Radial no side type | I | - | 100 | Grade 1.6 | M20x1.5 G 1/2" | |
| Radial back side type | II | T | ||||
| Axial no side type | IV | Z | ||||
| Axial front side type | III | ZT | ||||
| Axial back square type | - | TF | ‘-01.-0 | |||
| Radial no side type | I | - | 150 | ’-0.1-0.1 -0.1-0.15 -0.1-0.3 -0.1-0.5 -0.1-0.9 -0.1-1.5 -0.1-2.4 | ||
| Radial back side type | II | T | ||||
| Radial no side type | I | - | 200 | |||
| Radial back side type | II | T | ||||
Model Sign:
