Single face/non-equilibrium/arbitrary rotation/in accordance with DIN24960
H74N series are widely used and have strong interchangeability. The sealing ring is not tightly embedded and can be easily replaced.The push ring is stuck by the driving partner to prevent the spring from falling off.Static ring can be limited, the spring travel is limited, to avoid excessive wear of carbon ring.
Work scope:
Gauge: 14 ~ 200 mm
Pressure: ≤ 4.0mpa
Temperature: -50 ~ 220℃
Linear velocity: ≤20 m/s
Axial channeling momentum:
D1 100 or less: + / - 0.5 mm
D1 > : 100 + / - 2.0 mm
Sealing face: graphite, silicon carbide
Auxiliary seals: nitrile rubber, fluorinated rubber, ethylene-c rubber, PTFE
Metal components: stainless steel
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Pump Motor And Accessories

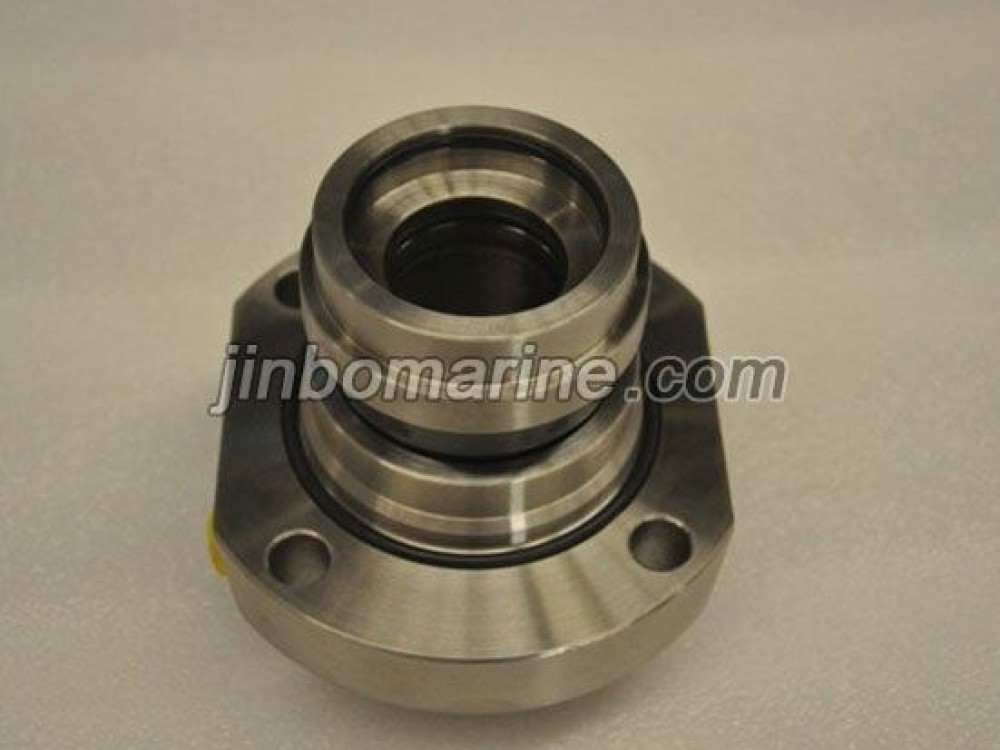

YCB40-2.5 Marine gear pump mechanical seal
Single face/non-equilibrium/arbitrary rotation/in accordance with DIN24960 H74N series are widely used and have strong interchangeability. The sealing ring is not tightly embedded and can be easily replaced.The push rin...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Pump Motor And Accessories
Standard
DIN
Material
stainless steel
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Pump Motor And Accessories
Model / SKU
YCB40-2-5-Marine-gear-pump-mechanical-seal
Standard
DIN
Material
stainless steel
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
