Used In Hydraulic and Pneumatic Systems, Compressors, Regulator and industry machine, and suitable for fluid medium or Gaseous which does not clog connection port or corrode Stainless steel. It can used for severe service conditions where pulsation or vibration exist. Premium quality and long life.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Marine Pressure Gauge

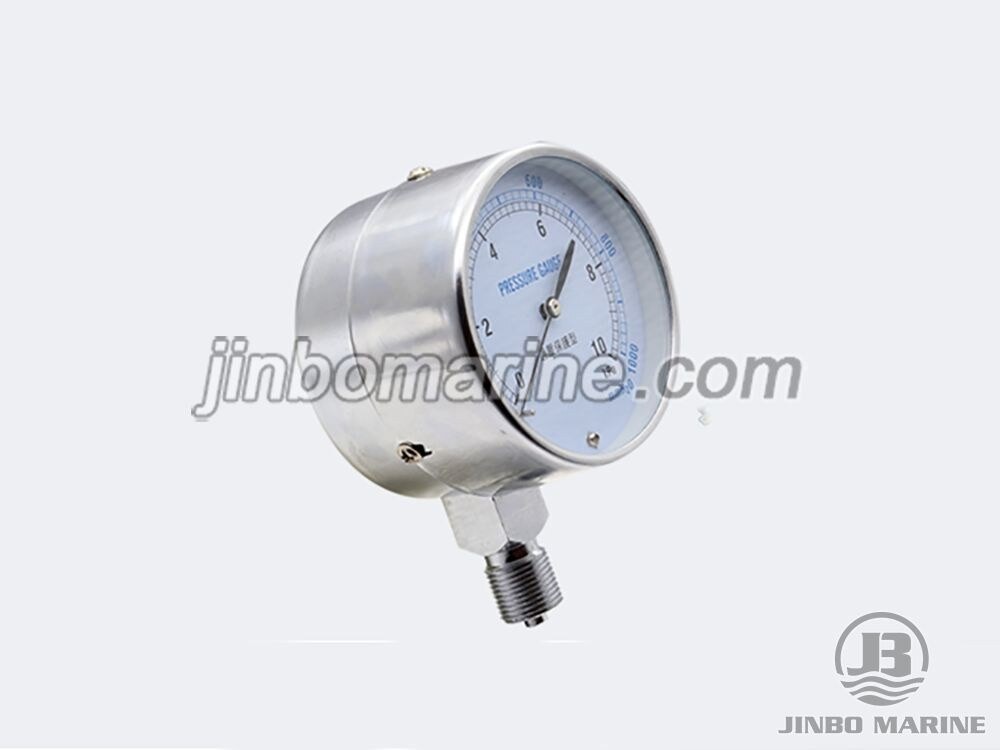

YE-75 Overpressure Protection Type Capsule Pressure Gauge
Used In Hydraulic and Pneumatic Systems, Compressors, Regulator and industry machine, and suitable for fluid medium or Gaseous which does not clog connection port or corrode Stainless steel. It can used for severe servic...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Marine Pressure Gauge
Standard
EN
Material
Used In Hydraulic and Pneumatic Systems, Compressors, Regulator and indu...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Marine Pressure Gauge
Model / SKU
YE-75-Overpressure-Protection-Type-Capsule-Pressure-Gauge
Standard
EN
Material
Used In Hydraulic and Pneumatic Systems, Compressors, Regulator and industry machine, and suitable for fluid medium or Gaseous which does not clog connection port or corrode Stainless steel.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
China YE-75 Overpressure Protection Type Capsule Pressure Gauge:
Specification:
| Outer diameter | 75MM |
| Testing pressure range | -100Kpa~0 to 0~100Kpa |
| Accuracy | Level 1.5；Level 2.5 |
| Sensitive element | copper (Cu) |
| Case material | chrome plated carbon steel |
| Operating environment | -25~55℃, relative humidity≤85% |
| Temperature effect | ≤0.4%/10℃ |
