Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Air Horn

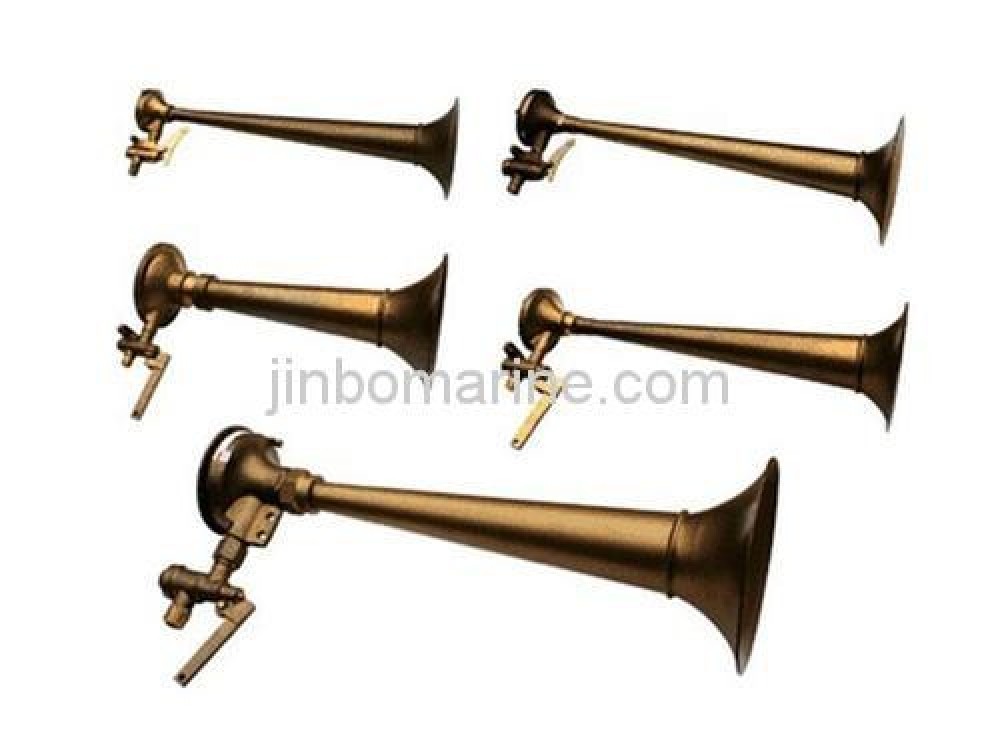

YQ Marine diaphragmatic Air Horn

YQ Marine diaphragmatic Air Horn is a navigating device with condensed as sound motive, used to various ships and boats and also can be used as the source of the alarm signal in case of clearing of entering a port, shunn...

ISO9001 Supplier Class Certificate Export Supply
YQ Marine diaphragmatic Air Horn

Key Highlights

Category
Marine Air Horn
Standard
EN
Weight / Size
Type Nominal Dimension(mm) Nominal Pressure(Mpa) 1/3 Frequency Band(db) ...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Air Horn
Model / SKU
YQ-Marine-diaphragmatic-Air-Horn
Standard
EN
Weight / Size
Type Nominal Dimension(mm) Nominal Pressure(Mpa) 1/3 Frequency Band(db) Frequency Range(Hz) Hearing Distance (Nautical Mile) Length of Ship(M) YQ-4 4 0.39 >=120 250-700 0.5 12-20 YA-6 6 0.59 >=120 250-700 0.5 20-75 YQ-8 8 0.59 >=130 250-700 1 20-75 YQ-10 10 0.8 >=134 250-700 1 75-200 YQ-15 15 0.98 >=138 130-150 1.5 75-200
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

China YQ Marine diaphragmatic Air Horn:

YQ Marine diaphragmatic Air Horn is a navigating device with condensed as sound motive, used to various ships and boats and also can be used as the source of the alarm signal in case of clearing of entering a port, shunning in voyage or bad visibility.

The Horn has the characteristics of simple structure, reliable quality, clear sound, big volumn, small air consumption.

Specification:

Type Nominal Dimension(mm) Nominal Pressure(Mpa) 1/3 Frequency Band(db) Frequency Range(Hz) Hearing Distance (Nautical Mile) Length of Ship(M)
YQ-4 4 0.39 >=120 250-700 0.5 12-20
YA-6 6 0.59 >=120 250-700 0.5 20-75
YQ-8 8 0.59 >=130 250-700 1 20-75
YQ-10 10 0.8 >=134 250-700 1 75-200
YQ-15 15 0.98 >=138 130-150 1.5 75-200
