Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Sensor

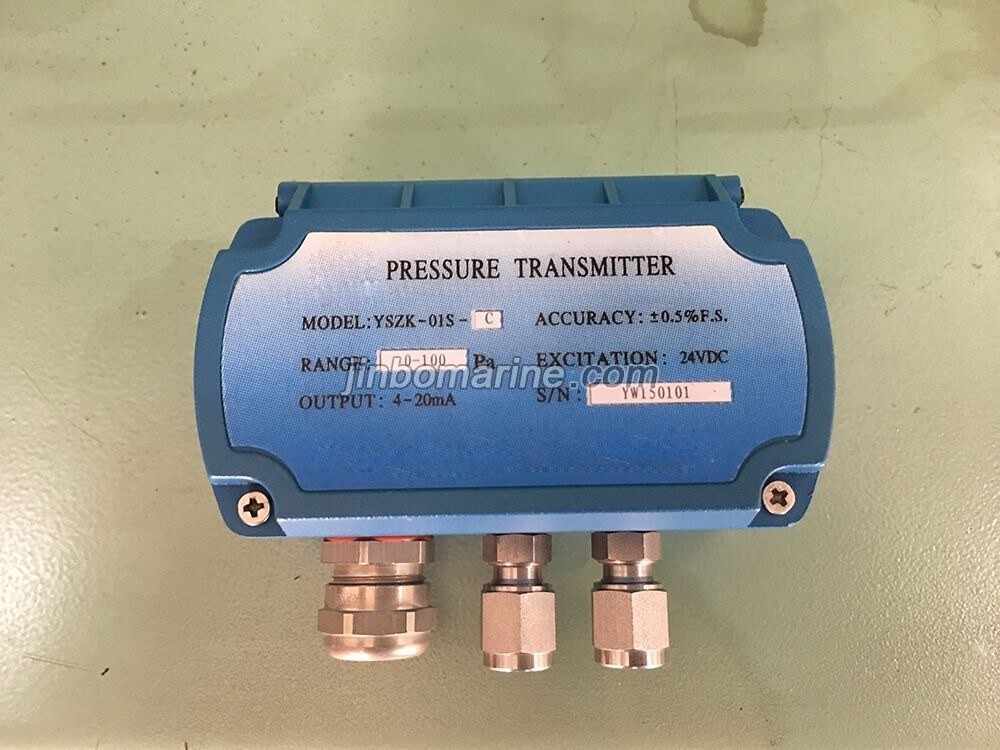

YSZK-01S-C-E Type Cabin Pressure Transmitter

Product Description: YSZK type cabin pressure transmitter adopt imported silicon piezoresistance pressure sensor chip, matched with latest type digital compensation amplifier circuit which with new microprocessor, ...

ISO9001 Supplier Class Certificate Export Supply
YSZK-01S-C-E Type Cabin Pressure Transmitter

Key Highlights

Category
Sensor
Standard
EN
Material
Diameter 6 stianless steel bite type connector or Diameter tower shape b...
Weight / Size
3psi (20Kpa) Connection size:
Certificate
CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Sensor
Model / SKU
YSZK-01S-C-E-Type-Cabin-Pressure-Transmitter
Standard
EN
Material
Diameter 6 stianless steel bite type connector or Diameter tower shape brass connector Measure Range:
Weight / Size
3psi (20Kpa) Connection size:
Certificate
CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
Warranty
12 Months unless specified otherwise
Origin
China

Product Description:

YSZK type cabin pressure transmitter adopt imported silicon piezoresistance pressure sensor chip, matched with latest type digital compensation amplifier circuit which with new microprocessor, and with sturdy and durable cast aluminium housing, it has the advantages of high precision, good stability,wide scaling range, high protection grade etc. It is used for measure the pressure in ship's cabin,boiler furnace negative pressure detection,air condition purification system, fan flow rate measurement, industrial dedusting equipment, purification shop, textile machinery, leakage detection measurement or other industrial areas.

Main Technical Specification:

Voltage: DC24V
Measuring accuracy: ±1.0 % F.S centigrade / ±0.5% F.S centigrade
Working temperature: -20 to 60 centigrade
Protection: IP56
Explosion proof mark: Exia II CT6
Maximum overload capability: 3psi (20Kpa)
Connection size: Diameter 6 stianless steel bite type connector or Diameter tower shape brass connector

Measure Range:

Type Measuring range(Kpa)
One way type 0~50,0~100,0~250,0~500,0~1000,0~2500,0~5000
Two way type -50~0~50，-100~0~100，-250~0~250，-500~0~500，-100~0~1000，-2500~0~2500，-5000~0~5000

Model Sign:
