| Name | YVFF-H series Frequency conversion three phase adjustment speed asynchronous marine motor |
| Power | 0.55-600kw |
| Voltage | 380-440v(220-690V) |
| Frequency | 50-60hz |
| Frame size | 80-450 |
| Insulation | F-H |
| Protection Class | IP44-IP56 |
| Usage | Suitable for driving various machines on ships such as pumps, blowers, separators, hydraulic engines and other auxiliary equipment. |
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Pump Motor And Accessories

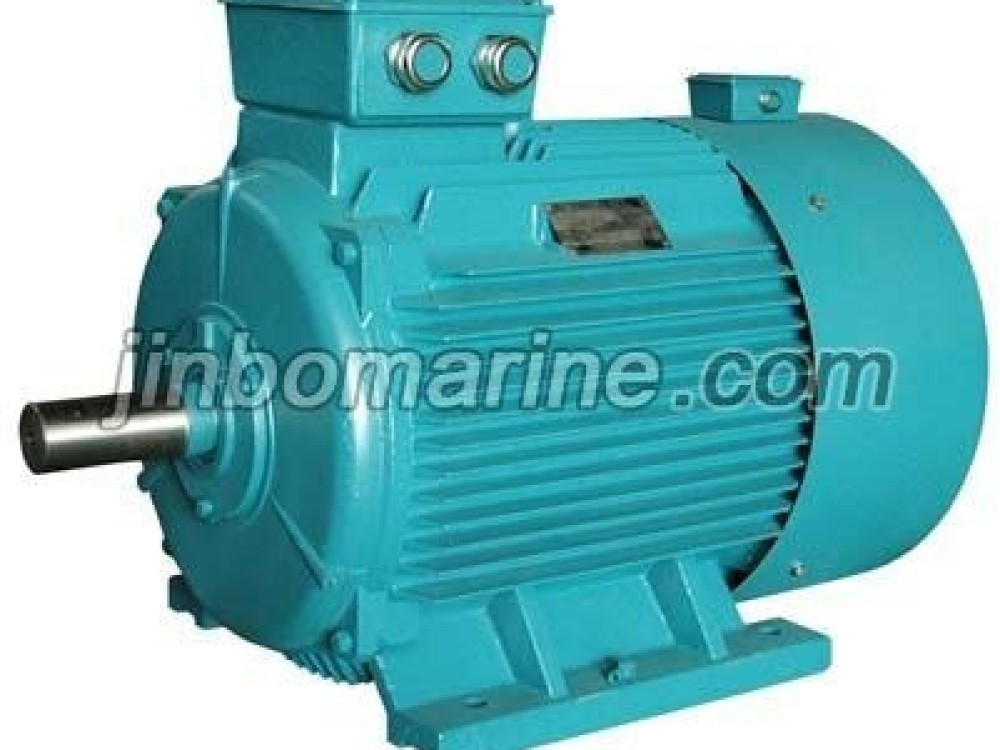

YVFF-H series Frequency conversion three phase adjustment speed asynchronous mar
YVFF-H series Frequency conversion three phase adjustment speed asynchronous marine motor Name YVFF-H series Frequency conversion three phase adjustme...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Pump Motor And Accessories
Standard
EN
Material
cast iron
Weight / Size
YVFF-H series Frequency conversion three phase adjustment speed asynchro...
Certificate
CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Pump Motor And Accessories
Model / SKU
YVFF-H-series-Frequency-conversion-three-phase-adjustment-speed-asynchronous-marine-motor
Standard
EN
Material
cast iron
Weight / Size
YVFF-H series Frequency conversion three phase adjustment speed asynchronous marine motor Name YVFF-H series Frequency conversion three phase adjustment speed asynchronous marine motor Power 0.55-600kw Voltage 380-440v(220-690V) Frequency 50-60hz Frame size 80-450 Insulation F-H Protection Class IP44-IP56 Usage Suitable for driving various machines on ships such as pumps, blowers, separators, hydraulic engines and other auxiliary equipment.
Surface
YVFF-H series motor’s surface cooled by bower which has independent power and can operate under conditions of low frequency for long time.
Certificate
CCS
Warranty
12 Months unless specified otherwise
Origin
China
YVFF-H series Frequency conversion three phase adjustment speed asynchronous marine motor
Specification
Temperature of ambient air: -25 to +45 degree
Altitude: 0m
Relative humidity: less than 95%
Dew: exist
Salt mist: exist
Oil mist: exist
Fungus: exist
Shock: exist
Vibration: exist
Inclination and swing: +/-22.5 degree
Cooling method:
YVF-H series motor is self-fan cooling, suitable for operating under the conditions of low frequency for not long time: YVFF-H series motor’s surface cooled by bower which has independent power and can operate under conditions of low frequency for long time.
Construction and mounting type
The construction and mounting type are B3, B5, V1, V3, B35.
