A Self-Tailing sailing winch can works at the push of a button without any tools and also can either be fitted in the conventional manner, or without removing the drum, to speed up installation.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Yacht Windlass & Winch
Yatch Electric Winches
Electric Winches A Self-Tailing sailing winch can works at the push of a button without any tools and also can either be fitted in the conventional manner, or without removing the drum, to speed up installation. ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Yacht Windlass & Winch
Standard
EN
Material
Stainless steel 304,316, 316L
Weight / Size
Specification Model (AC) Drum Dia Base Dia Line Entry Line size Motor (m...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Yacht Windlass & Winch
Model / SKU
Yatch-Electric-Winches
Standard
EN
Material
Stainless steel 304,316, 316L
Weight / Size
Specification Model (AC) Drum Dia Base Dia Line Entry Line size Motor (mm） (mm） (mm） (mm） （W) YDEW-001 74 148 79 8-12 400 YDEW-002 87 168 84 8-14 600 YDEW-003 93 181 86 8-14 800 YDEW-004 105 205 115 8-16 1200 YDEW-005 118 231 122 8-18 1600
Surface
Feature 1.High-quality polished surface makes for a beautiful appearance 2.The whole winch is made by 316 stainless steel 3.Have good performance in waterproof, rust-resistant.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

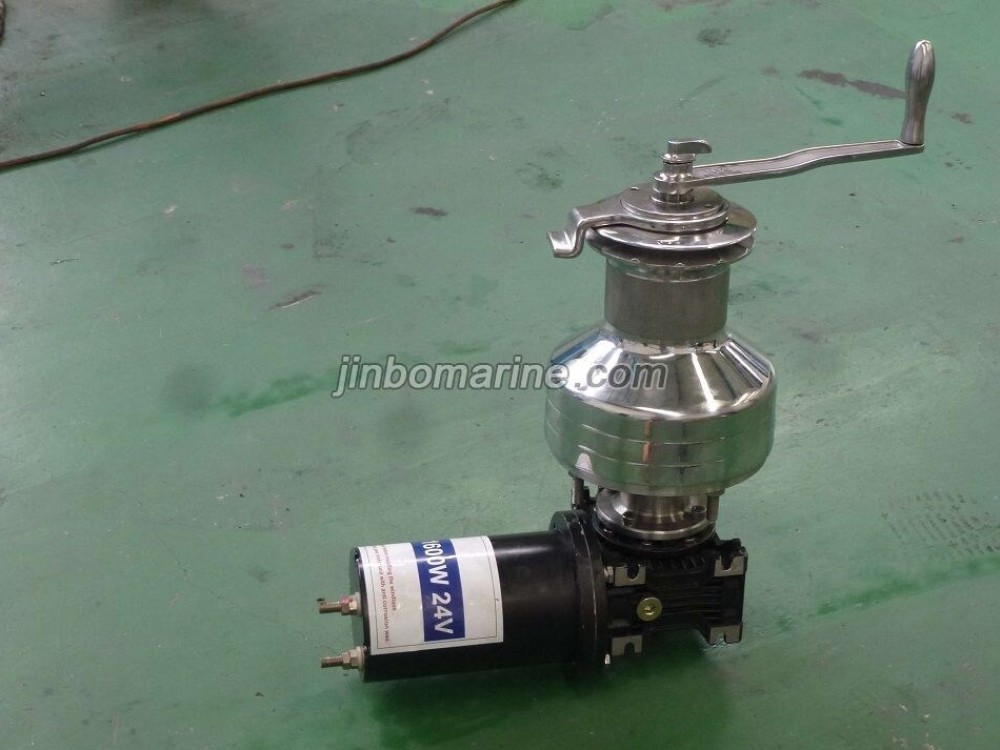

Electric Winches
Feature
1.High-quality polished surface makes for a beautiful appearance
2.The whole winch is made by 316 stainless steel
3.Have good performance in waterproof, rust-resistant.
4.Push Button Power
5.Quiet operation
6.Manual override
7.Easy to install
8.Included motor units, control box and accessories.
Specification
| Model (AC) | Drum Dia | Base Dia | Line Entry | Line size | Motor | |||||
| (mm） | (mm） | (mm） | (mm） | （W) | ||||||
| YDEW-001 | 74 | 148 | 79 | 8-12 | 400 | |||||
| YDEW-002 | 87 | 168 | 84 | 8-14 | 600 | |||||
| YDEW-003 | 93 | 181 | 86 | 8-14 | 800 | |||||
| YDEW-004 | 105 | 205 | 115 | 8-16 | 1200 | |||||
| YDEW-005 | 118 | 231 | 122 | 8-18 | 1600 | |||||
