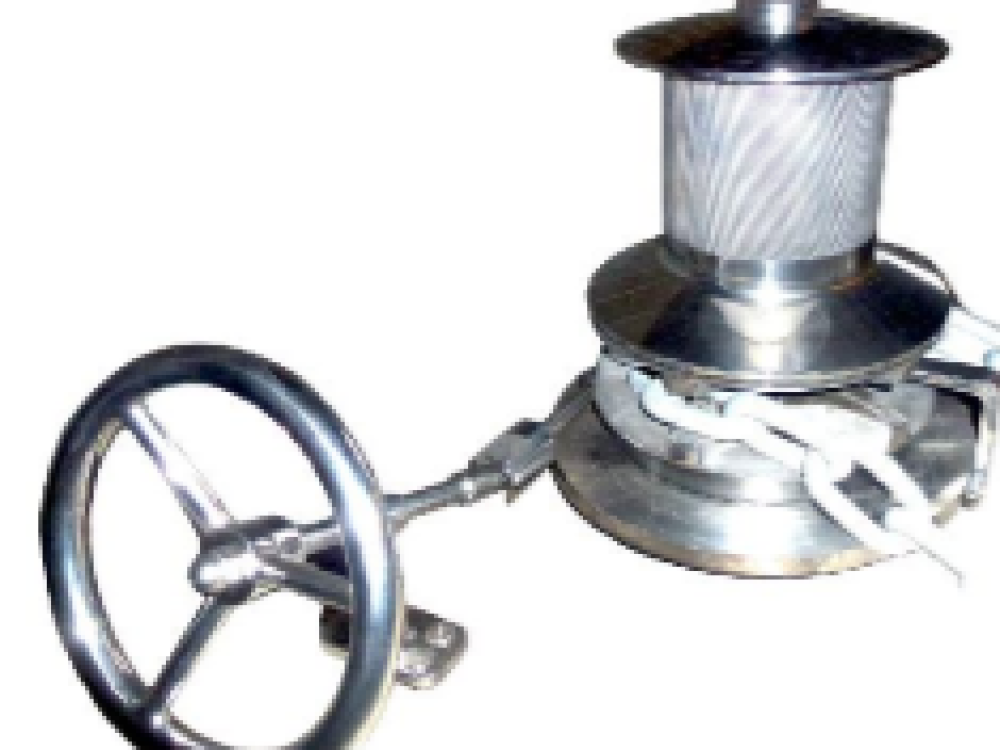

Stainless steel vertical windlass. Available in high or low profile, with different drives and recommended for boats up to 50m. The NYS windlass can use chains up to 18mm with stud link in diameter.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Yacht Windlass & Winch
Yatch Hydraulic Windlass
Yatch Hydraulic Windlass General description Stainless steel vertical windlass. Available in high or low profile, with different drives and recommended for boats up to 50m. The NYS windlass can use chain...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Yacht Windlass & Winch
Standard
EN
Material
Stainless steel 304,316, 316L
Weight / Size
Main Parameter Hydraulic Specification Model Max.pressure Max.pull Flow ...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Yacht Windlass & Winch
Model / SKU
Yatch-Hydraulic-Windlass
Standard
EN
Material
Stainless steel 304,316, 316L
Weight / Size
Main Parameter Hydraulic Specification Model Max.pressure Max.pull Flow rate Working load Max.Line speed (bar) (Kg) (L/min) (Kg) (m/min) YDHP1011H 200 1800 20-40 1200 10-20m/min YDHP1012H 200 2000 25-50 1500 10-20m/min YDHP1013H 200 2600 28-60 2000 10-15m/min YDHP1014H 200 3500 28-60 2800 8-15m/min
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Yatch Hydraulic Windlass
General description
Main Parameter
| Hydraulic Specification | ||||||||||
| Model | Max.pressure | Max.pull | Flow rate | Working load | Max.Line speed | |||||
| (bar) | (Kg) | (L/min) | (Kg) | (m/min) | ||||||
| YDHP1011H | 200 | 1800 | 20-40 | 1200 | 10-20m/min | |||||
| YDHP1012H | 200 | 2000 | 25-50 | 1500 | 10-20m/min | |||||
| YDHP1013H | 200 | 2600 | 28-60 | 2000 | 10-15m/min | |||||
| YDHP1014H | 200 | 3500 | 28-60 | 2800 | 8-15m/min | |||||
