Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Yacht Windlass & Winch

Yatch Vertical Windlass With AC Mode

Yatch Vertical Windlass With AC Mode AC Vertical windlass (3000W,4000W,5500W,7500W) Stainless steel vertical windlass.Available in high or low profile, with different drives and for boats up to 50m.The NYS ...

ISO9001 Supplier Class Certificate Export Supply
Yatch Vertical Windlass With AC Mode

Key Highlights

Category
Yacht Windlass & Winch
Standard
DIN
Material
Stainless steel 304,316, 316L
Weight / Size
lift load 2500KG 3100KG 3500KG 3600KG Working load 1400KG 1600KG 1700KG ...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Yacht Windlass & Winch
Model / SKU
Yatch-Vertical-Windlass-With-AC-Mode
Standard
DIN
Material
Stainless steel 304,316, 316L
Weight / Size
lift load 2500KG 3100KG 3500KG 3600KG Working load 1400KG 1600KG 1700KG 1800KG Line speed 15m/min 15m/min 15m/min 15m/min Chain(DIN766) 12.5mm-13mm 14mm 16mm 18mm
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Contents
  1. Yatch Vertical Windlass With AC Mode
  2. AC Vertical windlass (3000W,4000W,5500W,7500W)
  3. Main parameter

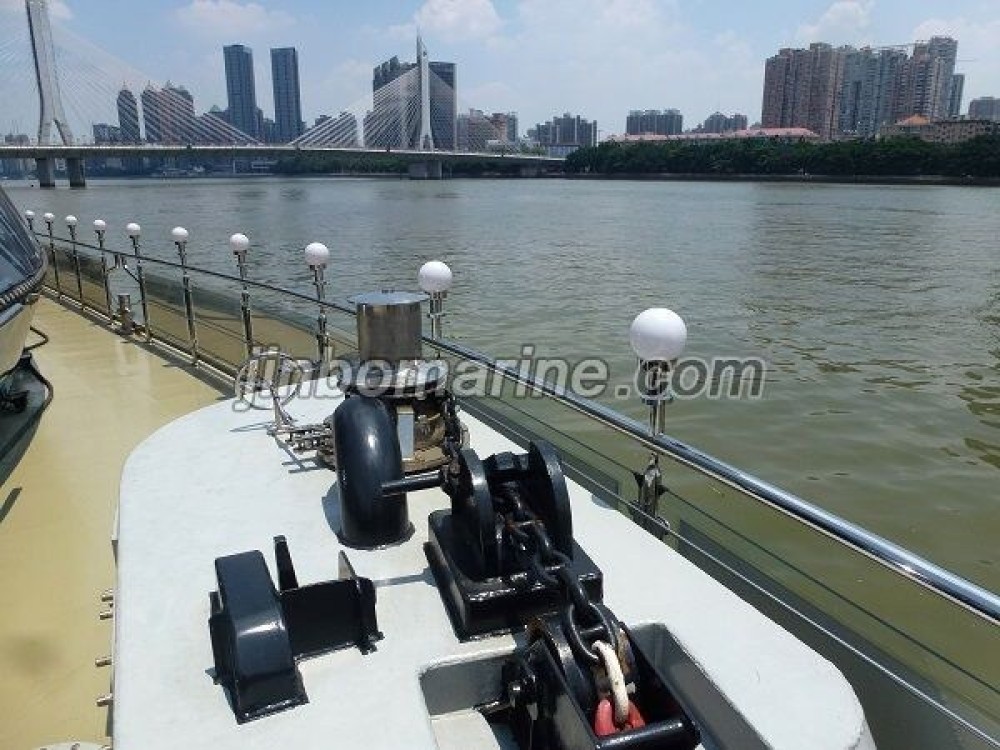

Yatch Vertical Windlass With AC Mode

AC Vertical windlass (3000W,4000W,5500W,7500W)

Stainless steel vertical windlass.Available in high or low profile, with different drives and for boats up to 50m.The NYS windlass can use chains up to 18mm with stud link in diameter. Possibility of 230V,400V ,12V,24V .


Main parameter


AC Specification
Electric motor 3000W 4000W 5500W 7500W
Motor supply 12V/24V 230V/400V 230V/400V 230V/400V
Max. lift load 2500KG 3100KG 3500KG 3600KG
Working load 1400KG 1600KG 1700KG 1800KG
Line speed 15m/min 15m/min 15m/min 15m/min
Chain(DIN766) 12.5mm-13mm 14mm 16mm 18mm
