Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Yacht Windlass & Winch

Yatch Winch

Yatch Winch Features 1.The compact, fully sealed gearbox is driven by a vertically mounted, permanent magnet motor. 2.Gearbox housings are marine grade alloy and drum is Stainless steel. ...

ISO9001 Supplier Class Certificate Export Supply
Yatch Winch

Key Highlights

Category
Yacht Windlass & Winch
Standard
EN
Material
Stainless steel 304,316, 316L
Weight / Size
3.Line hauling from any direction 4.The base and the bolt are stainless ...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Yacht Windlass & Winch
Model / SKU
Yatch-Winch
Standard
EN
Material
Stainless steel 304,316, 316L
Weight / Size
3.Line hauling from any direction 4.The base and the bolt are stainless steel 5.Easily disassembled for servicing 6.Fit include hand-switch and control box Winch Specifications Model Weight Power Motor No load Max.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

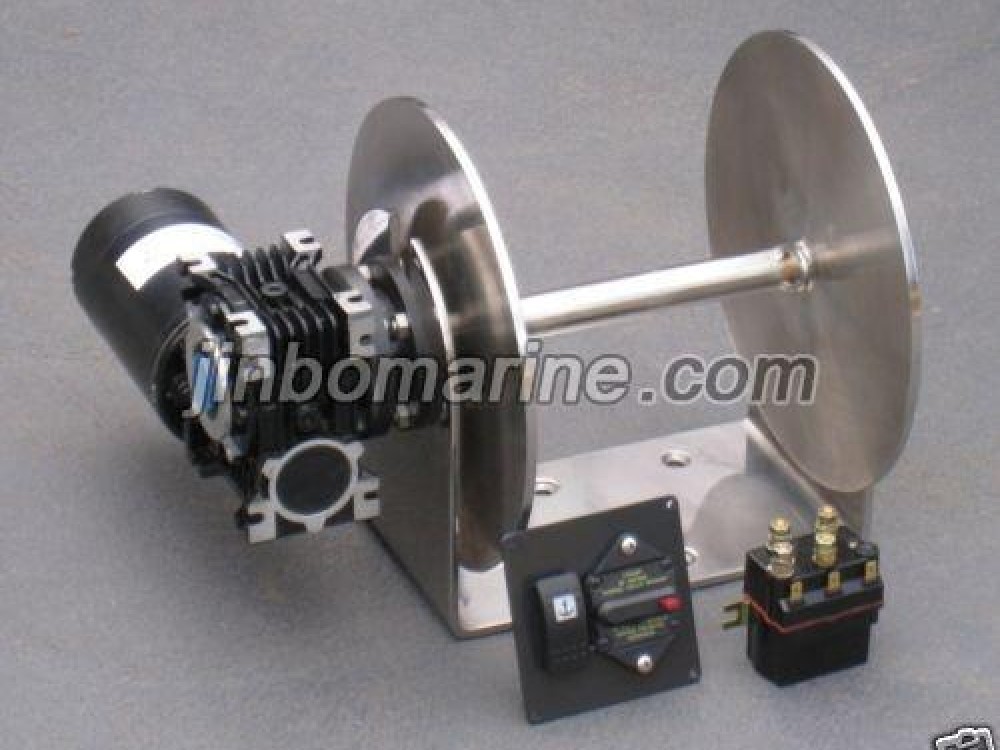

Yatch Winch

Features

1.The compact, fully sealed gearbox is driven by a vertically mounted, permanent magnet motor.

2.Gearbox housings are marine grade alloy and drum is Stainless steel.

3.Line hauling from any direction

4.The base and the bolt are stainless steel

5.Easily disassembled for servicing

6.Fit include hand-switch and control box

Winch Specifications

Model Weight Power Motor No load Max. Max. Line Rope Chain
Net(DC) DC (W) absorption load Pull Speed size size
YDW-011 16KG 12V/24V 600 50A 190kg 680kg 30m/min 6-8mm 5-6mm
YDW-012 23KG 12V/24V 1000 90A 350kg 750KG 25m/min 8-10mm 6-8mm
YDW-013 31KG 12V/24V 1400 120A 480KG 900KG 20m/min 10-14mm 8-10mm
YDW-014 32.6KG 12V/24V 1600 135A 680KG 1200KG 20m/min 10-14mm 8-10mm
