| Model | Input power | Speed | Capacity | Head | Impeller diameter | Weight | Thrust |
| （kw) | (rpm) | (m3/s) | (m) | (mm） | （kg) | (kn) | |
| ZLB16 | 16.5~60 | 2900~5500 | 0.13~0.23 | 6.6~12.5 | 160 | 22 | 1.3~4.3 |
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Water Jet Propulsion

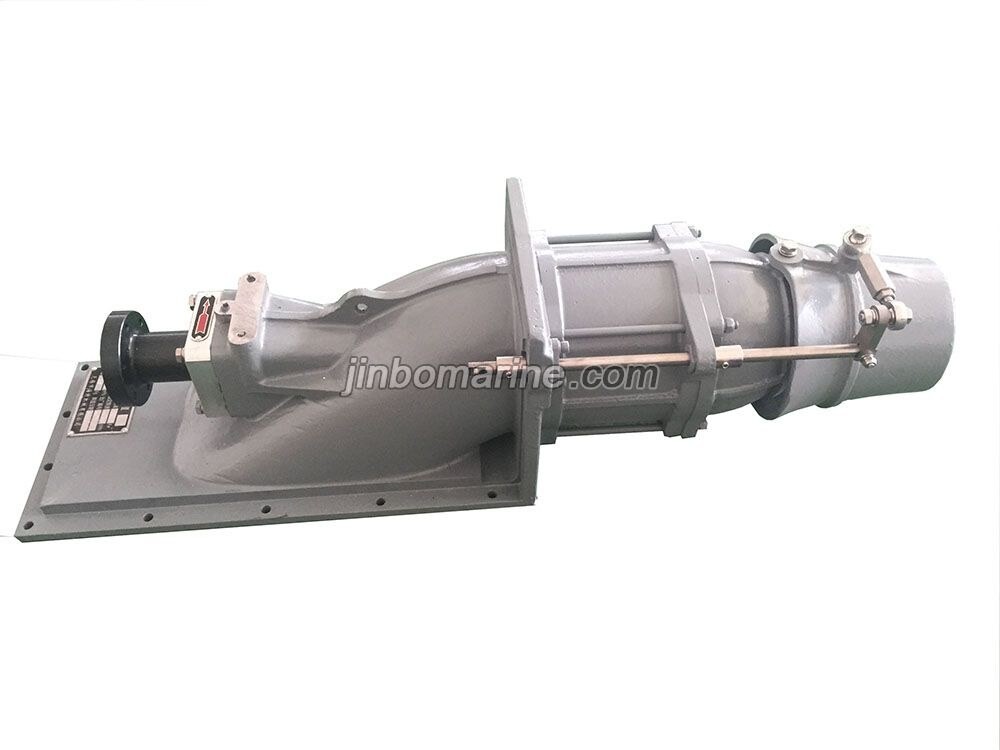

ZLB16 Yacht Dedicated Water Jet Propulsion Pump
Model Input power Speed Capacity Head Impeller diameter Weight Thrust （kw) (r...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Water Jet Propulsion
Weight / Size
Model Input power Speed Capacity Head Impeller diameter Weight Thrust （k...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Water Jet Propulsion
Model / SKU
ZLB16-Yacht-Dedicated-Water-Jet-Propulsion-Pump
Weight / Size
Model Input power Speed Capacity Head Impeller diameter Weight Thrust （kw) (rpm) (m3/s) (m) (mm） （kg) (kn) ZLB16 16.5~60 2900~5500 0.13~0.23 6.6~12.5 160 22 1.3~4.3
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
