Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Water Jet Propulsion

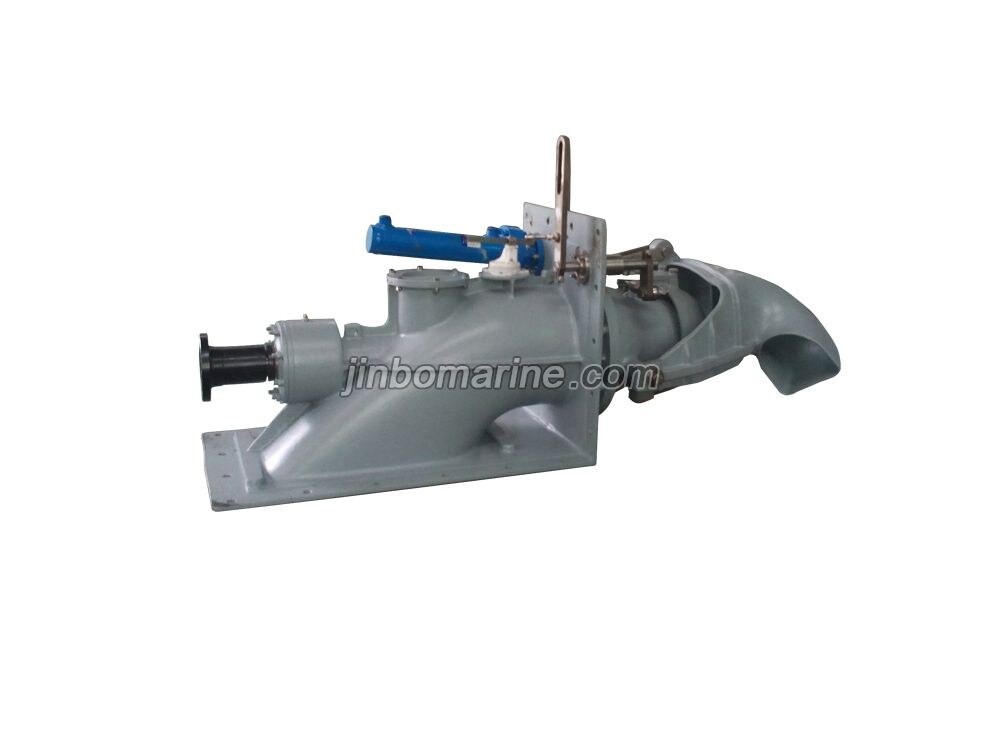

ZLB23 Yacht Dedicated Water Jet Propulsion Pump

Impeller diameter 230mm Model: ZLB23-1 Power: 30~110KW Speed: 1500~2200r/min Weight: 80KG Rotation: counterclockwise from the tail nozzle to the coupling Material: ZL115 Impelle...

ISO9001 Supplier Class Certificate Export Supply
ZLB23 Yacht Dedicated Water Jet Propulsion Pump

Key Highlights

Category
Water Jet Propulsion
Material
counterclockwise from the tail nozzle to the coupling Material:
Weight / Size
1500~2200r/min Weight:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Water Jet Propulsion
Model / SKU
ZLB23-Yacht-Dedicated-Water-Jet-Propulsion-Pump
Material
counterclockwise from the tail nozzle to the coupling Material:
Weight / Size
1500~2200r/min Weight:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

China ZLB23 Yacht Dedicated Water Jet Propulsion Pump:

Impeller diameter 230mm

Model: ZLB23-1

Power: 30~110KW

Speed: 1500~2200r/min

Weight: 80KG

Rotation: counterclockwise from the tail nozzle to the coupling

Material: ZL115

Impeller diameter 230mm

Model: ZLB23-2

Power: 30~168KW

Speed: 1800~3200r/min

Weight: 80KG

Rotation: counterclockwise from the tail nozzle to the coupling

Material: ZL115
