Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Water Jet Propulsion

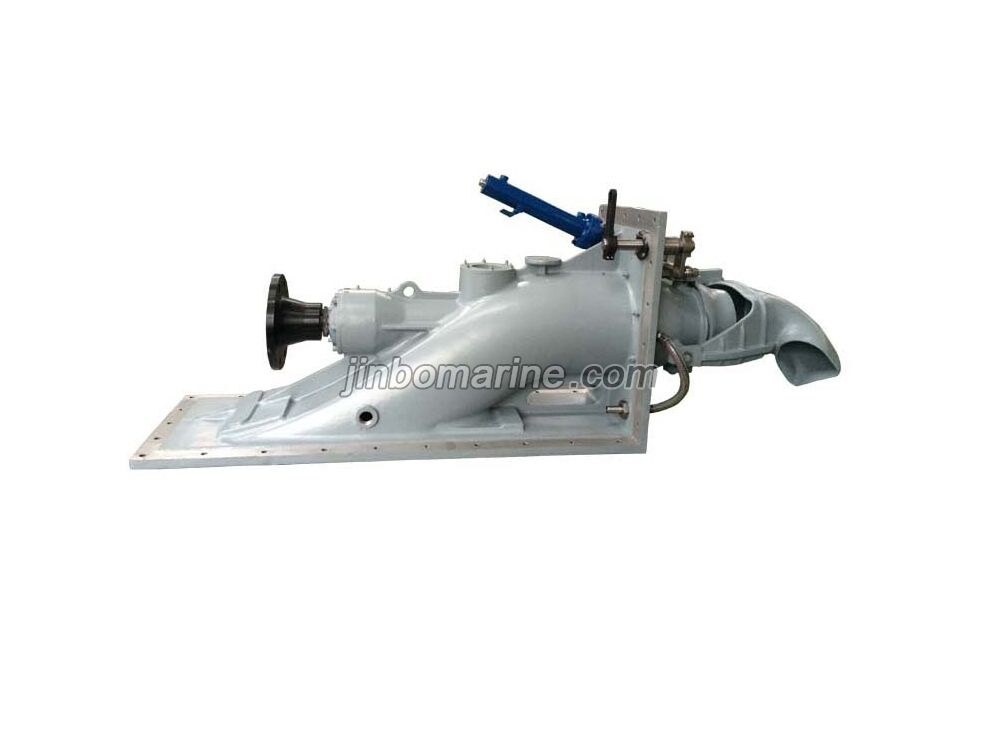

ZLB28 Yacht Dedicated Water Jet Propulsion Pump

Model: ZLB28-1 Power: 128~304KW Speed: 1800~2400r/min Weight: 124KG Rotation: ZLB28-1 from the tail nozzle to the direction of coupling, counterclockwise Material: ZL115 Model: ZLB28-...

ISO9001 Supplier Class Certificate Export Supply
ZLB28 Yacht Dedicated Water Jet Propulsion Pump

Key Highlights

Category
Water Jet Propulsion
Material
ZLB28-1 from the tail nozzle to the direction of coupling, counterclockw...
Weight / Size
1800~2400r/min Weight:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Water Jet Propulsion
Model / SKU
ZLB28-Yacht-Dedicated-Water-Jet-Propulsion-Pump
Material
ZLB28-1 from the tail nozzle to the direction of coupling, counterclockwise Material:
Weight / Size
1800~2400r/min Weight:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

China ZLB28 Yacht Dedicated Water Jet Propulsion Pump:

Model: ZLB28-1

Power: 128~304KW

Speed: 1800~2400r/min

Weight: 124KG

Rotation: ZLB28-1 from the tail nozzle to the direction of coupling, counterclockwise

Material: ZL115

Model: ZLB28-2

Power: 120~330KW

Speed: 1900~2700r/min

Weight: 124KG

Rotation: ZLB28-2 from the tail nozzle to the direction of coupling, clockwise and counterclockwise

Material: ZL115
