The meter is used to measure the engine speed and engine working time accumulation
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Marine Electrical Instrument

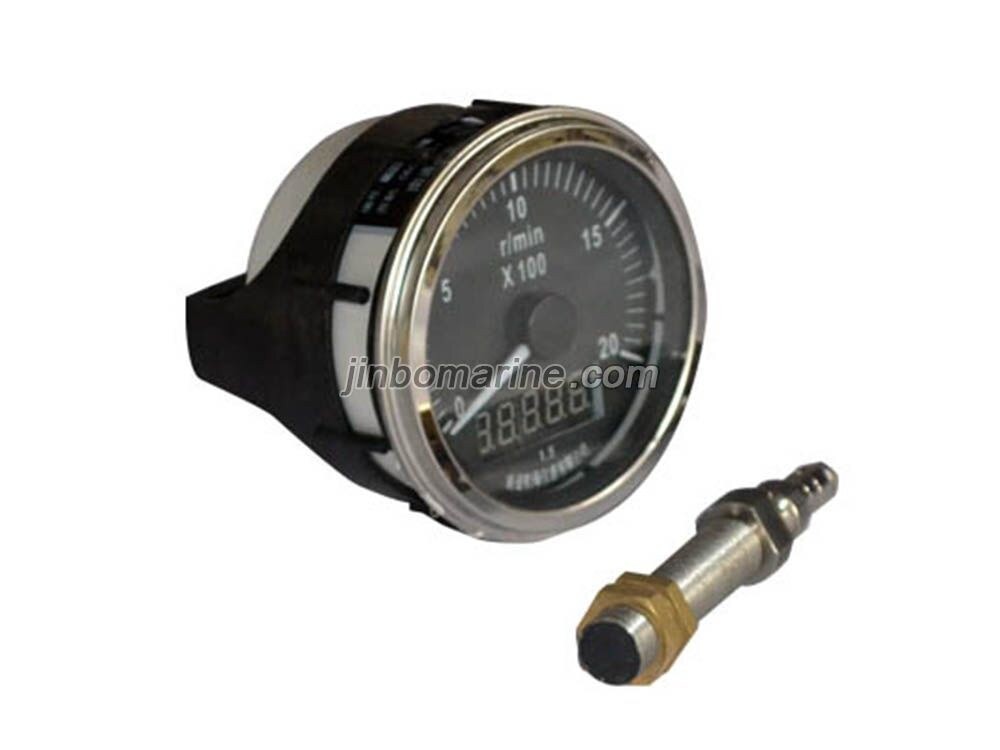

ZQ-3A tachometer
ZQ-3A tachometer The meter is used to measure the engine speed and engine working time accumulation technical parameter 1. Range: 0-1000r / min; 0-2000r / min; 0-3000r / min; accuracy: Grade 1 2. ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Marine Electrical Instrument
Standard
DIN
Weight / Size
embedded installation, opening size ￠ 81 + 0.5, instrument with mounting...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Marine Electrical Instrument
Model / SKU
ZQ-3A-tachometer
Standard
DIN
Weight / Size
embedded installation, opening size ￠ 81 + 0.5, instrument with mounting clip and nut.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
ZQ-3A tachometer
technical parameter
1. Range: 0-1000r / min; 0-2000r / min; 0-3000r / min; accuracy: Grade 1
2. Applicable environment: temperature - 40 ℃ - + 65 ℃, humidity: ≤ 98%, vibration and salt spray
3. Installation: embedded installation, opening size ￠ 81 + 0.5, instrument with mounting clip and nut.
4. Usage: when using, the customer should provide DC12V or DC24V power supply, and the sensor interface thread and length can be manufactured according to the user's requirements.
