Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Kitchen Galley

BC-50 Marine Refrigerator

BC-50 Marine Refrigerator 1. High-performance compressor, lower energy consumption, environmentally friendly refrigerant, high cooling efficiency Built-in high-efficiency evaporator, long service life, deep cold a...

ISO9001 Supplier Class Certificate Export Supply

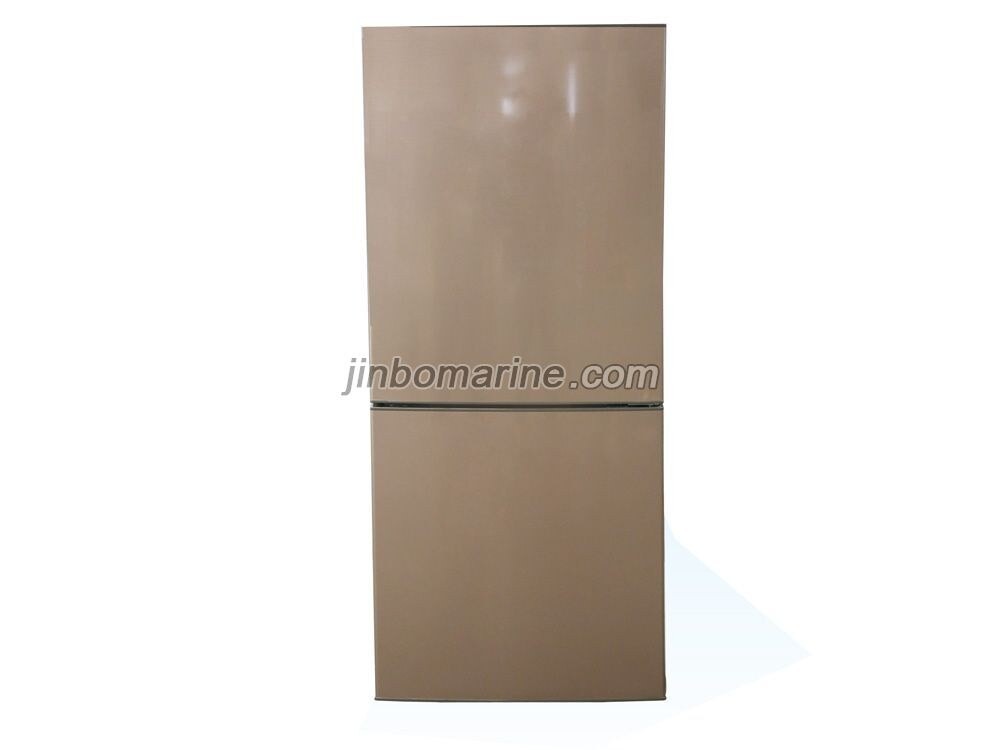

BC-50 Marine Refrigerator

Key Highlights

Category
Marine Kitchen Galley
Standard
EN
Material
SS
Weight / Size
Equipped with stainless steel adjustable feet for easy installation on b...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Kitchen Galley
Model / SKU
BC-50-Marine-Refrigerator
Standard
EN
Material
SS
Weight / Size
Equipped with stainless steel adjustable feet for easy installation on board BC-50 Marine Refrigerator Drawing BC-50 Marine Refrigerator Parameters Model BC-50 BC-93 BCD-165 BCD-221 FYL-100 Volume(L) 50 93 165 221 100 Voltage 220v-1PH-50Hz/60Hz Power(kw) 0.28 0.47 0.49 0.54 0.2 Size(mm) 500X466X540 480X535X855 498X572X1557 565X630X1780 480X490X985 Weight(kg) 18 27 42 53 25
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

BC-50 Marine Refrigerator

1. High-performance compressor, lower energy consumption, environmentally friendly refrigerant, high cooling efficiency
Built-in high-efficiency evaporator, long service life, deep cold and quick freezing
2. Wide voltage design
3. Cyclopentane hydrocarbon fluorine-free microcellular foaming, good insulation performance
4. The appearance is simple and fashionable, beautiful and elegant
5. With automatic low temperature compensation function, no need for you to do it, worry-free and rest assured
6. Equipped with stainless steel adjustable feet for easy installation on board

BC-50 Marine Refrigerator Drawing

BC-50 Marine Refrigerator Parameters

Model BC-50 BC-93 BCD-165 BCD-221 FYL-100
Volume(L) 50 93 165 221 100
Voltage 220v-1PH-50Hz/60Hz
Power(kw) 0.28 0.47 0.49 0.54 0.2
Size(mm) 500X466X540 480X535X855 498X572X1557 565X630X1780 480X490X985
Weight(kg) 18 27 42 53 25
