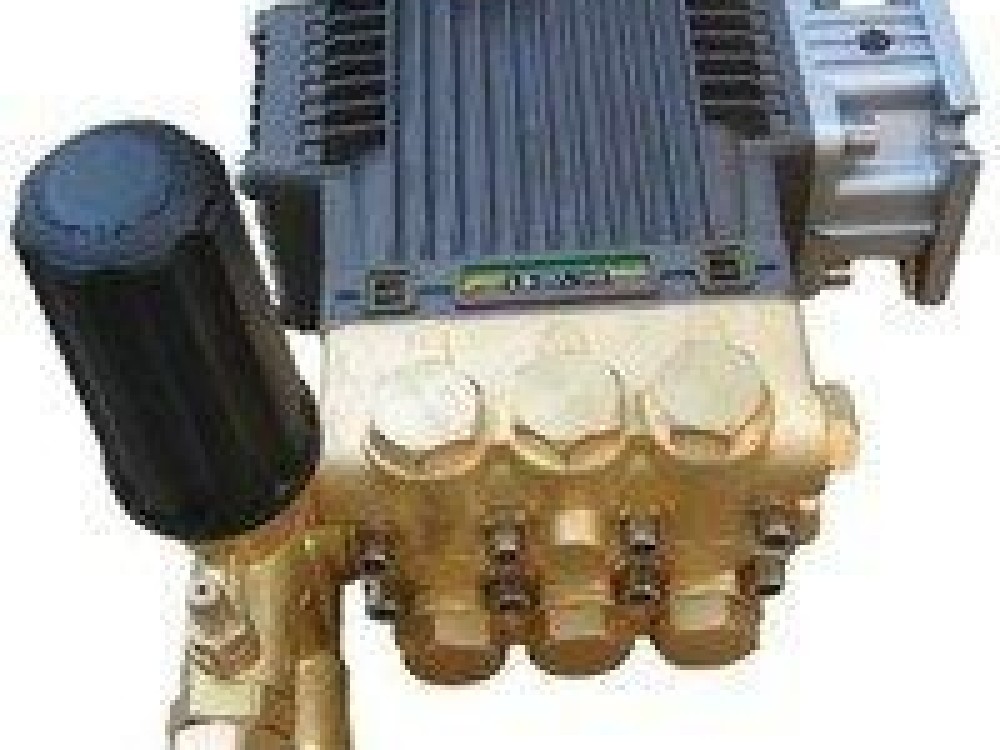

CDSW marine electrical horizontal reciprocating pump
General discription
It is suitable to transport sea water,fresh water,petroleum and petroleum product.the temperature of the transported medium divided into three ranks of high,middle and low.(1).H-high temperature pump no more than 220 c with viscosity no more than 5.86x10-4 m3/s(2).M-middle temperature pump no more than 110 c with viscosity no more than 5.86x10-4 m3/s (3).L-low temperature pump no more than 85 c with viscosity no more than 5.86x10-4 m3/s
Performance parameter
(380v/50hz)
| Model | flow rate | pressure | Piston range | Reciprocating | diameter of the outlet | motor power | |
| Q(m3/h) | (Mpa) | (mm) | (min-1) | (mm) | (kw) | ||
| 2CDSW-15/0.3 | 15 | 0.3 | 132 | 75 | 65 | 3 | |
| 2CDSW-15/0.4 | 15 | 0.4 | 132 | 75 | 65 | 4 | |
| 2CDSW-15/0.5 | 15 | 0.5 | 132 | 75 | 65 | 5.5 | |
| 2CDSW-15/0.6 | 15 | 0.6 | 132 | 75 | 65 | 5.5 | |
| 2CDSW-15/0.7 | 15 | 0.7 | 132 | 75 | 65 | 5.5 | |
| 2CDSW-15/0.8 | 15 | 0.8 | 132 | 75 | 65 | 7.5 | |
| 2CDSW-15/1.0 | 15 | 1 | 132 | 75 | 65 | 11 | |
| 2CDSW-25/0.3 | 25 | 0.3 | 132 | 75 | 65 | 5.5 | |
| 2CDSW-25/0.4 | 25 | 0.4 | 132 | 75 | 65 | 5.5 | |
| 2CDSW-25/0.5 | 25 | 0.5 | 132 | 75 | 65 | 7.5 | |
| 2CDSW-25/0.6 | 25 | 0.6 | 132 | 75 | 65 | 7.5 | |
| 2CDSW-25/0.7 | 25 | 0.7 | 132 | 75 | 65 | 11 | |
| 2CDSW-25/0.8 | 25 | 0.8 | 132 | 75 | 65 | 11 | |
| 2CDSW-25/1.0 | 25 | 1 | 132 | 75 | 65 | 15 | |
| 2CDSW-35/0.3 | 35 | 0.3 | 132 | 148 | 80 | 5.5 | |
| 2CDSW-35/0.4 | 35 | 0.4 | 132 | 148 | 80 | 7.5 | |
| 2CDSW-35/0.5 | 35 | 0.5 | 132 | 148 | 80 | 11 | |
| 2CDSW-35/0.6 | 35 | 0.6 | 132 | 148 | 80 | 11 | |
