Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Air Conditioner

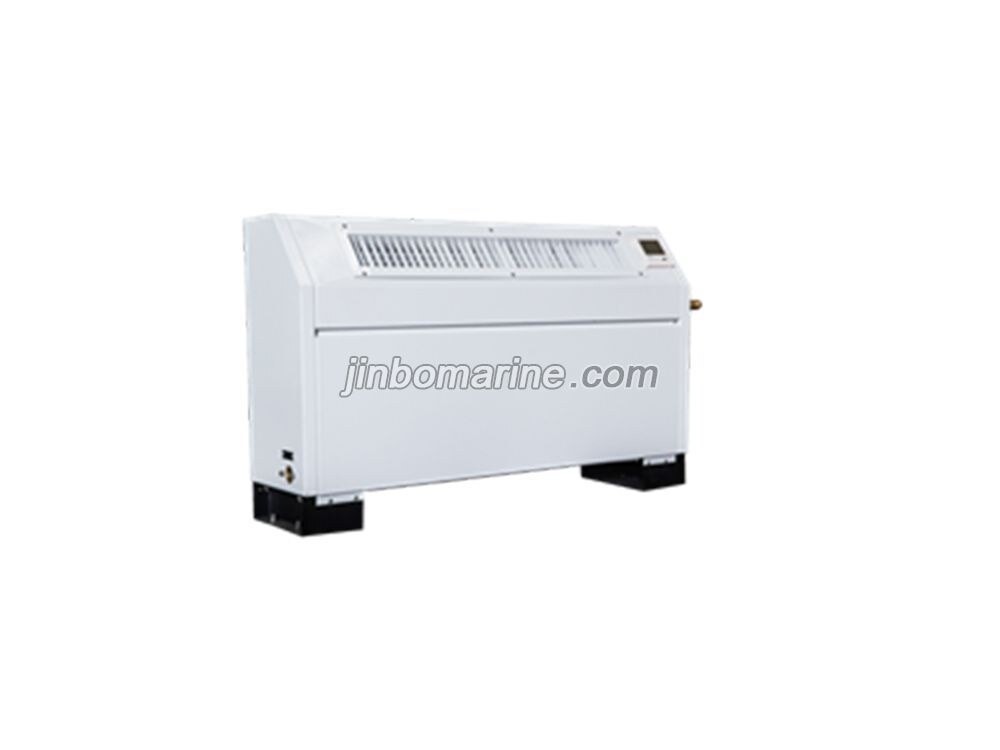

CFP-LM Vertical Surface Fan Coil

Description: The fan coil is the complement product for marine air-conditioning system. It has the characteristics of compact structure, little vibration, low noise, and easy installation. CFP-LM ver...

ISO9001 Supplier Class Certificate Export Supply
CFP-LM Vertical Surface Fan Coil

Key Highlights

Category
Marine Air Conditioner
Standard
EN
Weight / Size
℃ 7/45 water flow m3/h 1.38 2.06 2.58 4 4.81 6 water pressure loss kPa 4...
Certificate
CCS, BV, ABS, GL，LR, NK
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Air Conditioner
Model / SKU
CFP-LM-Vertical-Surface-Fan-Coil
Standard
EN
Weight / Size
℃ 7/45 water flow m3/h 1.38 2.06 2.58 4 4.81 6 water pressure loss kPa 40 40 45 45 50 55 Fan type motor power kw 0.09 0.09 2x0.09 2x0.25 2x0.45 2x.0.45 Noise dB(A) ≤52 ≤54 ≤57 ≤64 ≤69 ≤69 Dimension:
Surface
CFP-LM vertical surface fan coiland CFP-WA horizontal concealed fan coil is mainly composed of air filter, air heat exchanger, low noise centrifugal fan, knob-type speed regulation switch and electric control box.
Certificate
CCS, BV, ABS, GL，LR, NK
Warranty
12 Months unless specified otherwise
Origin
China

Description:

The fan coil is the complement product for marine air-conditioning system. It has the characteristics of compact structure, little vibration, low noise, and easy installation.

CFP-LM vertical surface fan coiland CFP-WA horizontal concealed fan coil is mainly composed of air filter, air heat exchanger, low noise centrifugal fan, knob-type speed regulation switch and electric control box.

CFP-LG vertical fan coil is composed of air filter, air heat-exchanger, low noise centrifugal fan, automatic swinging air damper, LCD touching control screen and electric control box.

Technical Data:

Type CFP-2 CFP-3 CFP-4 CFP-5 CFP-6 CFP-7
Cooling capacity kw 2 3 4 5 6 7
Heating capacity kw 3 4 5 6 7 8
Namely air flow m3/h 360 540 720 900 1000 1260
Cooling medium 7℃chiled water
Heating medium ≥45℃ hot water
Power supply AC220V 3P 50HZ/AC 220V 1P 60HZ
Air coller/heater type copper tube A1 fin
cold/hot water
inlet temp. 		℃ 7/45
water flow m3/h 0.34 0.52 0.68 0.86 1.03 1.2
water pressure loss kPa 20 25 30 35 35 40
Fan type
motor power kw 0.04 0.04 0.04 0.04 0.04 0.04
Noise dB(A) ≤42 ≤45 ≤46 ≤48 ≤49 ≤50
Type CFP-8 CFP-12 CFP-15 CFP-23 CFP-28 CFP-35
Cooling capacity kw 8 12 15 23 28 35
Heating capacity kw 9 14 17 26 82 40
Namely air flow m3/h 1140 2160 2700 3600 5000 5400
Cooling medium 7℃chiled water
Heating medium ≥45℃ hot water
Power supply AC220V 3P 50HZ/AC 220V 1P 60HZ
Air coller/heater type copper tube A1 fin
cold/hot water
inlet temp. 		℃ 7/45
water flow m3/h 1.38 2.06 2.58 4 4.81 6
water pressure loss kPa 40 40 45 45 50 55
Fan type
motor power kw 0.09 0.09 2x0.09 2x0.25 2x0.45 2x.0.45
Noise dB(A) ≤52 ≤54 ≤57 ≤64 ≤69 ≤69

Dimension:

Model L A H DN1 Weight kg
CFP-2LM 750 300 640 DN15 29
CFP-3LM 850 400 640 DN15 32
CFP-4LM 1050 600 640 DN20 38
CFP-5LM 1250 800 640 DN20 40
CFP-6LM 1400 950 640 DN20 44
