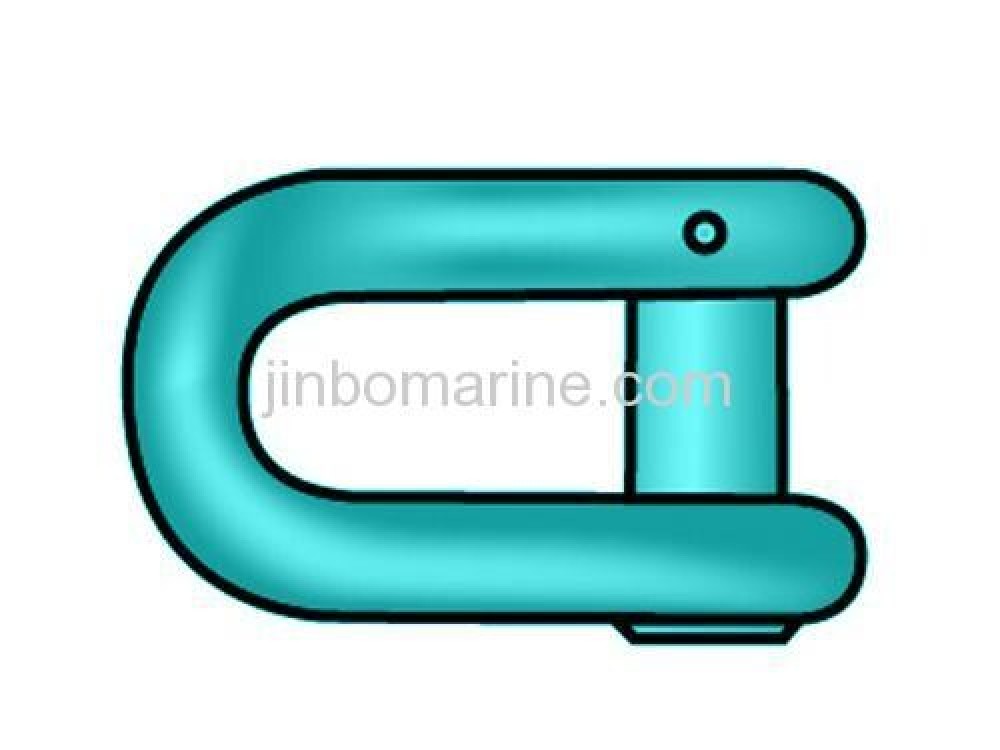

Crown Shackle

Shackle

Crown-Shackle

Main Specification Anchor Type B(mm) b(mm) b1(mm) D(mm) d(mm) d1(mm) H(mm) Shackle Weight(kg) Anchor Weight(kg) a1 49 21 4 35 16 14 60                            0.40                              15 a2 57 25 4 40 19 16 72                            0.63                              20 a3 70 30 5 45 22 20 84                            1.01                              30 a4 78 34 5 50 26 22 98                        143.00                              50 a5 85 37 6 60 30 24 115                            2.10                            100 a6 98 42 7 68 34 28 130                            3.20                            150 a7 110 46 8 75 36 32 145                            4.50                            200 a8 122 50 9 80 40 36 160                            6.00                            250 a9 136 56 10 90 45 40 175                            8.30                            360 a10 151 61 11 100 52 45 192                          11.50                            450 a11 163 67 12 110 55 48 215                          14.70                            600 a12 174 74 13 120 60 50 235                          17.80                            800 a13 200 80 14 130 65 60 255                          26.30                         1,020 a14 215 91 15 156 75 62 280                          35.00                         1,500 a15 236 100 17 174 80 68 310                          46.80                         2,000 a16 256 108 19 190 90 74 340                          60.70                         3,000 a17 279 115 20 210 100 82 380                          80.80                         3,060 a18 284 120 20 210 100 82 385                          82.80                         3,540 a19 305 125 22 230 110 90 410                        106.00                         4,050 a20 310 130 22 230 110 90 410                        109.00                         4,500 a21 335 135 25 250 120 100 415                        139.00                         5,000 a22 343 143 25 20 120 100 450                        144.60                         6,000 a23 370 150 27 270 130 110 480                        192.00                         7,000 a24 377 157 27 280 130 110 500                        196.30                         8,000 a25 391 163 30 300 138 117 540                        238.60                         9,000 a26 418 170 30 310 145 124 580                        280.00                       10,000 a27 437 177 32 320 150 135 600                        314.00                       11,100 a28 452 182 32 335 155 135 620                        353.00                       12,300 a29 468 188 34 345 160 140 640                        390.00                       13,500 a30 483 193 34 355 165 145 660                        430.00                       14,700 a31 498 198 36 365 170 150 680                        471.00                       16,100 a32 515 205 36 380 175 155 700                        523.00                       17,800 a33 534 214 38 395 185 160 730                        584.00                       20,000 a34 564 224 38 410 190 170 770                        679.00                       23,000 a35 594 234 40 430 200 180 800                        791.00                       26,000 a36 611 241 40 445 205 185 820                        863.00                       29,000 a37 626 246 42 455 210 190 850                        934.00                       31,000 a38 642 252 42 465 215 195 860                        999.00                       33,000 a39 657 257 44 475 220 200 880                     1,072.00                       35,500 a40 674 264 44 490 225 205 910                     1,165.00                       38,500 a41 692 272 46 510 235 210 940                     1,279.00                       42,000 a42 720 280 46 520 240 220 960                     1,412.00                       46,000

LR, ABS, CCS

12 Months unless specified otherwise

China
