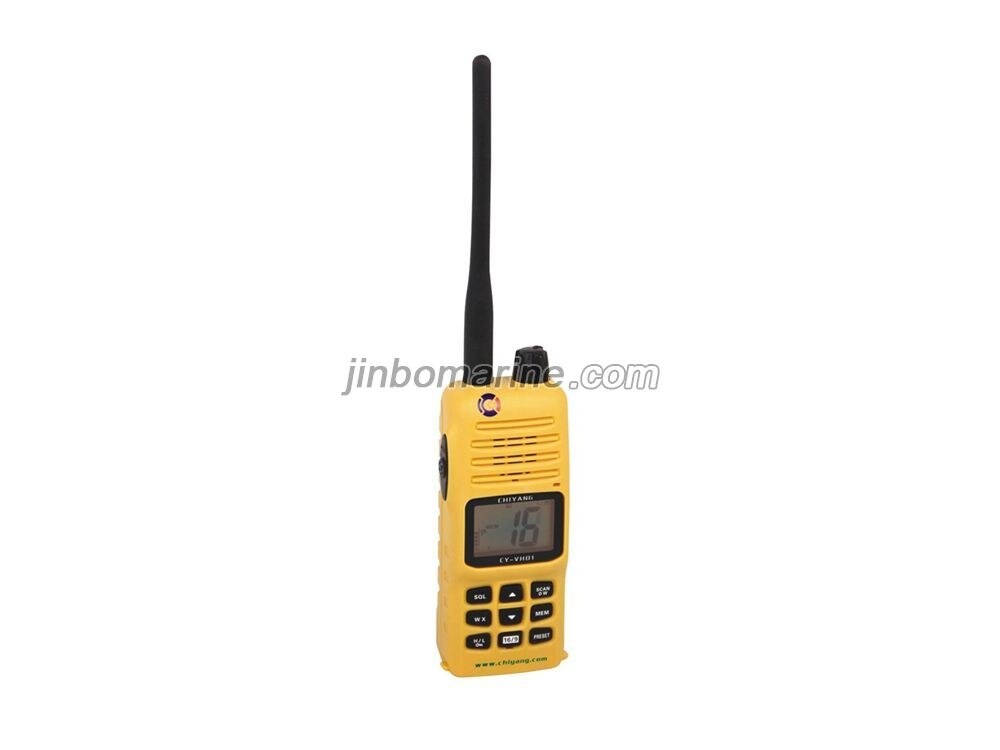

CY-VH01 Two Way VHF Radiotelephone

CY-VH01 Two Way VHF Radiotelephone CY-VH01 Two Way VHF Radiotelephone is conform to IEC 61097-12 and MSC.149(77),conform to relevant requirement of GMDSS Mainly use as radio equipment for commuication between perso...

ISO9001 Supplier Class Certificate Export Supply

Key HighlightsCategory
Marine Communication Equipment
Standard
EN
Weight / Size
＜+1.5kHz Size (W x H x D):
Certificate
CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

China CY-VH01 Two Way VHF Radiotelephone:

CY-VH01 Two Way VHF Radiotelephone

CY-VH01 Two Way VHF Radiotelephone is conform to IEC 61097-12 and MSC.149(77),conform to relevant requirement of GMDSS Mainly use as radio equipment for commuication between person in distress and rescue workers. Transmitted power can reach 5W.
Frequency Range: 154-163MHz
Channel Spacing: 25kHz (12.5kHz optional)
Working Temperature: -20℃ to +55℃
Sensitivity: 2μV for 20 dB SINAD
Adjacent Channel Power: ＞70 dB
Blocking: ＞90 dB
Spurious Response: ＞70 dB
Modulation Distortion: ＜5%
intermodulation Immunity: ＞68 dB
Radio Frequency Output Power : 1W (Lo)/5W (Hi)
Frequency Tolerance : ＜+1.5kHz
Size (W x H x D): 56 x 133 x 27.5 mm (not include antenna and button )
Weight: 280 g (include battery,button and antenna)
