Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Communication Equipment

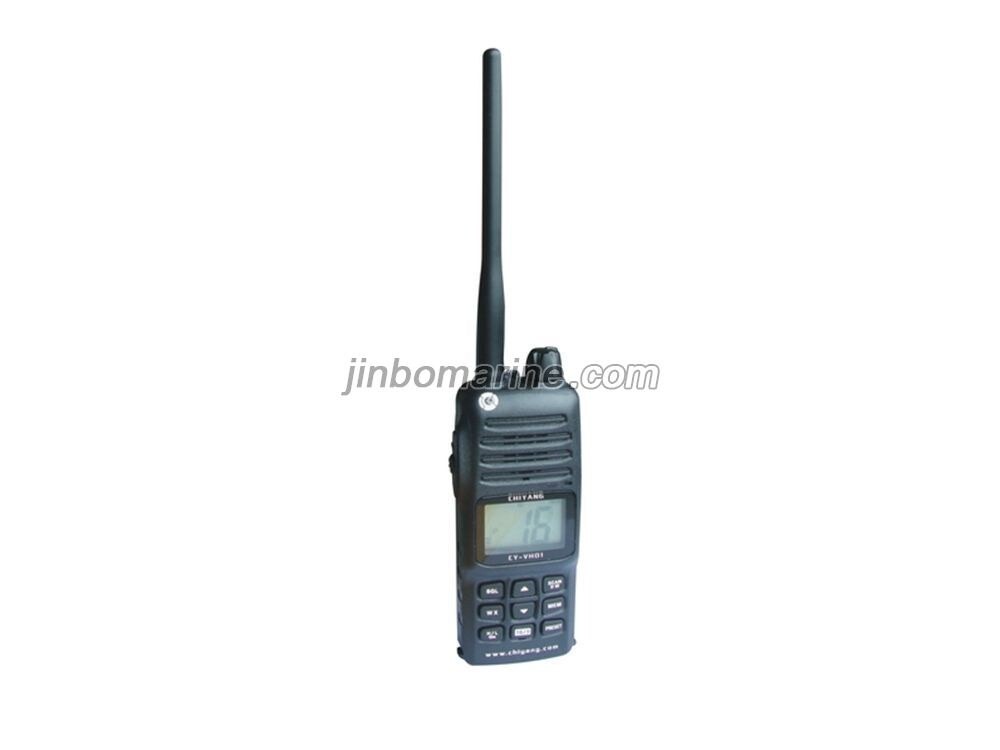

CY-VH02 Marine VHF Interphone

CY-VH02 Marine VHF Interphone with excellent waterproof function,use it 1 meter under water,it can keep watertight in 5 minutes,good corrosion resistance,it can adapt the severe environment on the vessel,easy to operate,...

ISO9001 Supplier Class Certificate Export Supply
CY-VH02 Marine VHF Interphone

Key Highlights

Category
Marine Communication Equipment
Standard
EN
Weight / Size
<+1.5kHz Size (W x H x D):
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Communication Equipment
Model / SKU
CY-VH02-Marine-VHF-Interphone
Standard
EN
Weight / Size
<+1.5kHz Size (W x H x D):
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

China CY-VH02 Marine VHF Interphone:

CY-VH02 Marine VHF Interphone with excellent waterproof function,use it 1 meter under water,it can keep watertight in 5 minutes,good corrosion resistance,it can adapt the severe environment on the vessel,easy to operate,unskilled person can use it too,and it can be operate by one hand only.Good property,High reliable.

Frequency Range: 154-163MHz
Channel Spacing: 25kHz (12.5kHz optional)
Working Temperature: -20℃ to +55℃
Sensitivity: 0.18μV for 12 dB SINAD
Adjacent Channel Power: >70 dB
Blocking: >70 dB
Spurious Response: >70 dB
Modulation Distortion: <5%
intermodulation Immunity: >68 dB
Radio Frequency Output Power : 1W (Lo)/5W (Hi)
Frequency Tolerance : <+1.5kHz
Size (W x H x D): 56 x 133 x 27.5 mm (not include antenna and button )
Weight: 280 g (include battery,button and antenna)
